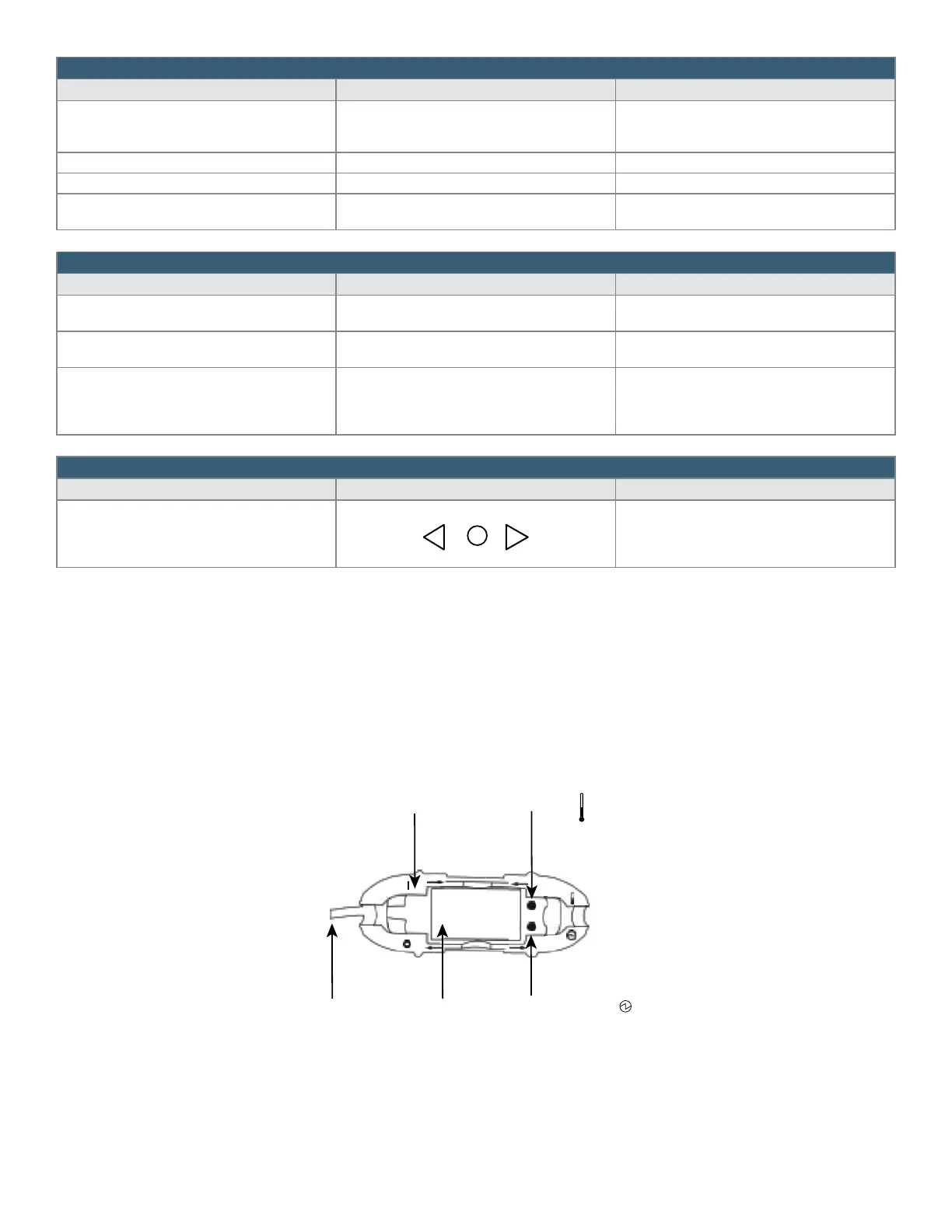

GE enFlow IV System Manual

- 13 of 40 -
4400-0024-EN Rev A
Table 1—Controller Display: Normal Operating Model
Activity Display reads Display color and function
Warmer is connected and power is engaged. Temperature and Clock
40 °C
9:00 A
Identical to Warmer
temperature LED
Warmer is not connected, but Controller is powered on. Not Heating Yellow
Warmer is connected, but covers are open on Warmer. Not Heating Yellow
Warmer is connected, and covers are either open or
closed on Warmer; however, Cartridge is not in Warmer.
Not Heating Yellow
Table 2—Controller Display: Alarm Mode
Activity Display reads Display color and function
Warmer over temperature Display alternates between Over Temp and
Press Key to Mute
Identical to Warmer temperature LED
Mute button activated Over Temp Muted Identical to Warmer temperature LED
Fault detected System Fault XX
If a system fault message is on the Controller display,
refer to the system fault section
Appendix B or contact Technical Support.
Red
High priority alarm
Table 3—Controller Display: Setup Mode
Activity Display reads Display color and function
While powering up the Controller, hold the center button
down until the clock screen is displayed. Then, use the
buttons to set the clock.
09:00 A
Blue
enFlow Warmer (Model 100 series) indicators and operation
The Warmer monitors and maintains the infusate temperature at 40 °C ± 2 °C. On the top of the Warmer, there are two status indicator lights (multicolored
LEDs), which reect the following:
Power - Indicates the power and operational status of the Warmer.
Temperature - Indicates that the infusate temperature is within an acceptable operating range (35 °C to 42 °C).
POWER
TEMP
OFF
ON
Power cable
Sliding covers
Heating surface
Temperature Status LED
(Indicated by symbol
)
Power LED
(Indicated by symbol )
