Evolution Series E9000 User Manual
19

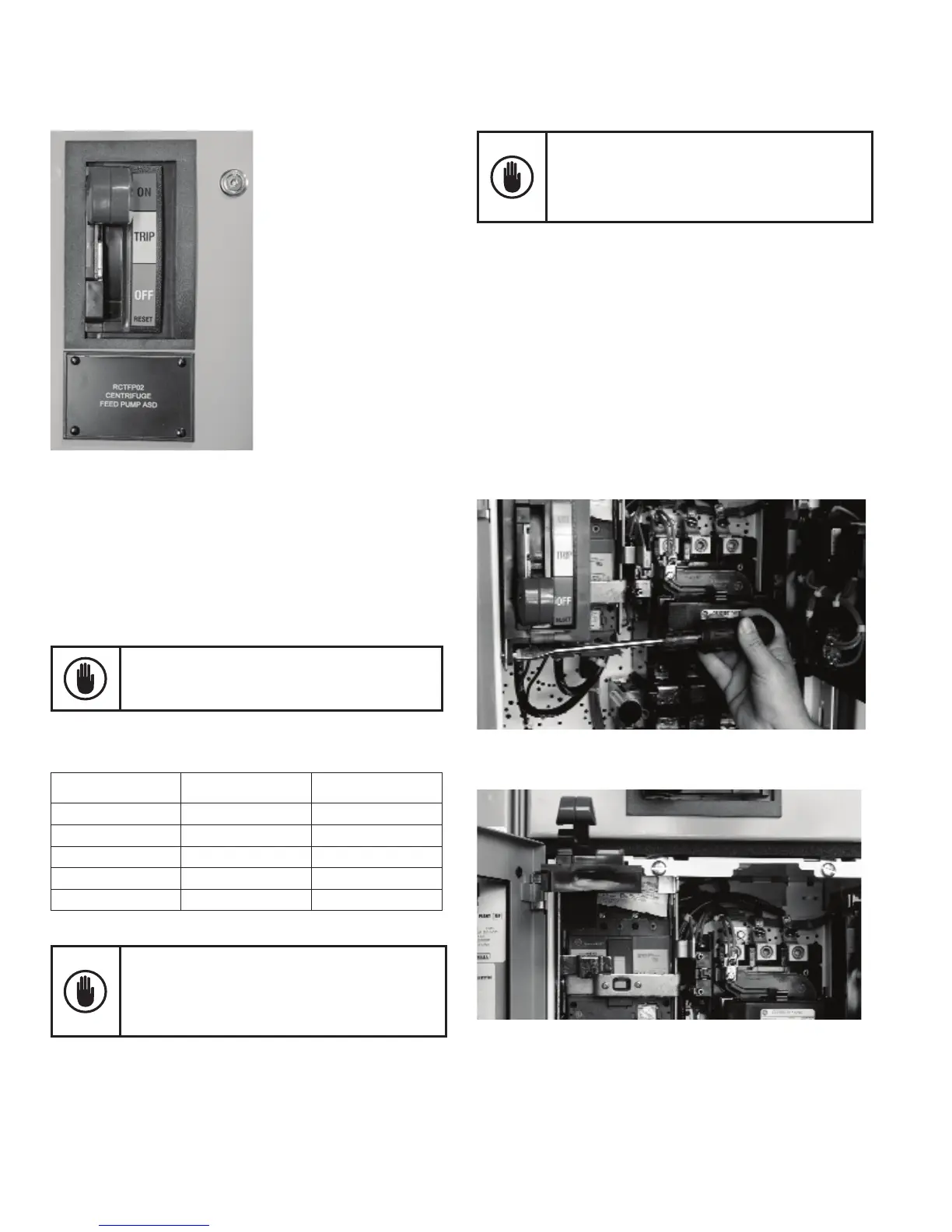

Figure 29. The door cannot be opened when the disconnect is ON
The disconnect is also equipped with a padlocking
provision, so that the operating handle can be locked in
the OFF position. The handle can also be drilled to
accommodate one padlock to secure it in the ON
position. In either case, the unit cannot be withdrawn
because of interference between the padlock(s) and door.
Final commissioning: Verify that all doors are
properly latched and interlocked prior to energizing.
Table 3. Weight and heights of CB basic with CPT
Plug-in Units,
No Door
Estimated Weight
(lbs)
Minimum Height
(Inches)
NEMA Size 1 FVNR 35 12
NEMA Size 2 FVNR 37 12
NEMA Size 3 FVNR 53 18
NEMA Size 4 FVNR 62 24
NEMA Size 5 FVNR 125 36
CAUTION should be used when removing or
installing units consider the weight in table above.
Two persons may be required or the assistance of
a lifting devices. See page 21 for suggested lifts.
CAUTION: The friction of Type 12 gasketing can
prevent the breaker disconnect operating handle from
returning to the full ON position. Prior to servicing,
conrm breaker disconnect is in the OFF position.
Operating Handle
The operating handle must be moved out of the way
to access the breaker disconnect. Make sure that the
disconnect operating handle is in the OFF position.
Open the door, then remove the mounting screw
securing the base of the handle to the side of the unit,
as shown in Figure 31. The handle can then be rotated
up and out of the way, as shown in Figure 32, allowing
access to the breaker.
Figure 31. Removing the operating handle mounting screw
Figure 32. Rotating the operating handle to access the breaker
