Introduction and Operation

The dual wattage 4 pass Calrod Heater serves both to heat the water during a wash cycle and to heat the air

during the dry cycle. Heat and air circulation are required for good dry performance. Air circulation is natural

FRQYHFWLRQZLWKDLUHQWHULQJWKURXJKWKH¿OOIXQQHOWKHQH[LWLQJWKURXJKWKHYHQW7KHUHDUHQRPRWRU·V

blowers or damper doors on the New 2015 GE Plastic Tub Dishwashers.

'XULQJGU\WKHKHDWHOHPHQWF\FOHVDIWHUDQLQLWLDOPLQXWHRQWLPHWRVHFRQGVRȺVHFRQGVRQIRU

minutes during a Normal cycle with no wash boost options selected. Boost wash options will change the

time needed due to hotter temperatures in rinse for options and cycle selected. The below table represents a

normal cycle with heated dry option only selected.

6SHFL¿FDWLRQV

The Calrod Heating element is rated at 120 VAC, 27 ohms, 6.5 amp

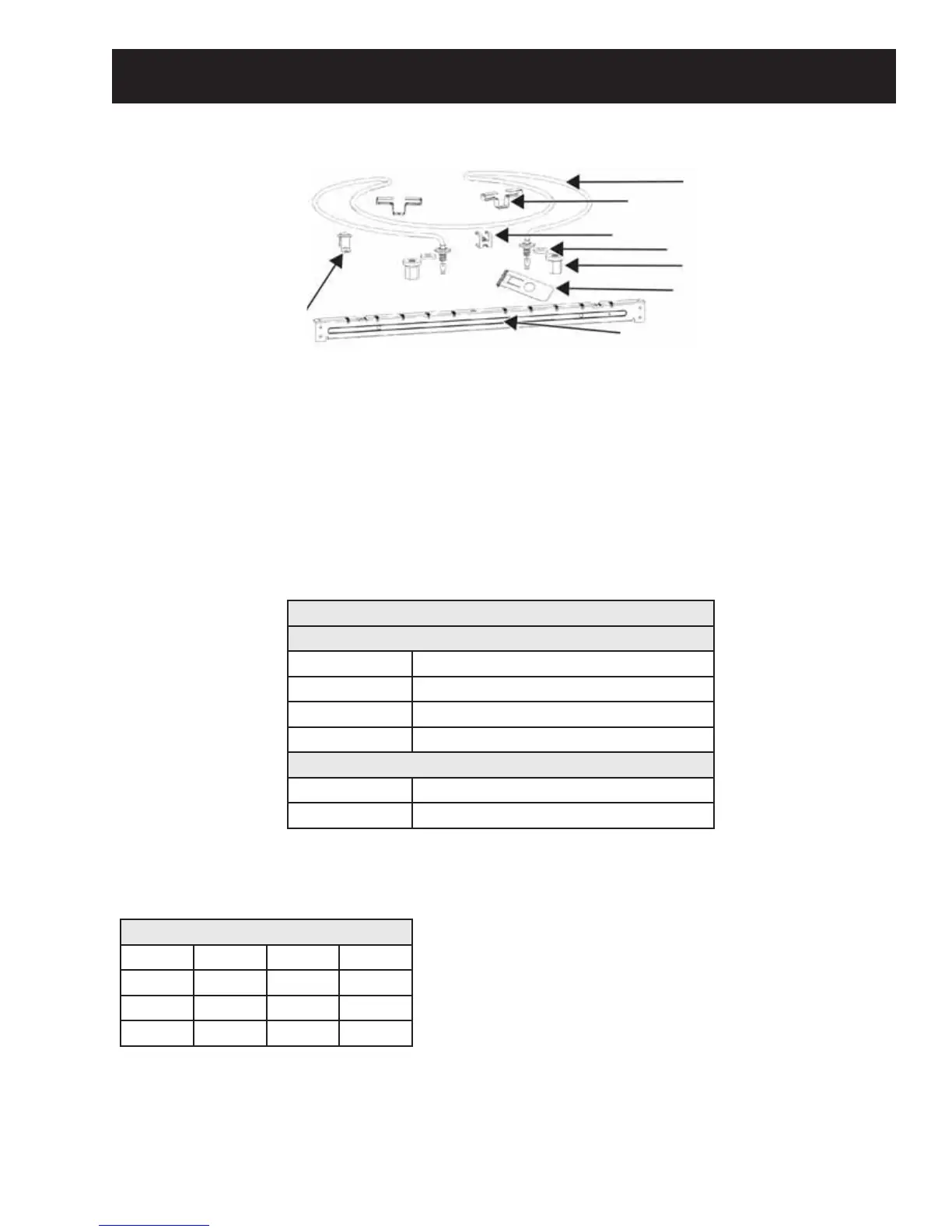

Dry System

Heat Element

Heater Supports

Heater Clip (on Main Conduit)

Gasket

Nut

Ground Bracket

Cross Brace

Main Conduit

4 Pass Heater Algorithm, Dry Cycle

Normal with Heated Dry

Time (minutes) Calrod Description

6 Calrod on

28 &DOURG3XOVHPLQXWHRQPLQXWHRȺ

14 &DOURGRȺ&RRO'RZQ

Normal with Temp Boost or Sani Selected

6 Calrod on

58 &DOURG3XOVHPLQXWHRQPLQXWHRȺ

Heated Dry Element Algorithm

Heater 120 VAC

Wet Dry

Watts 793 625 +/- 5%

Ohms 16.4 23.2 +/- 5%

Amps 6.6 5.2 +/- 5%
