– 35 –

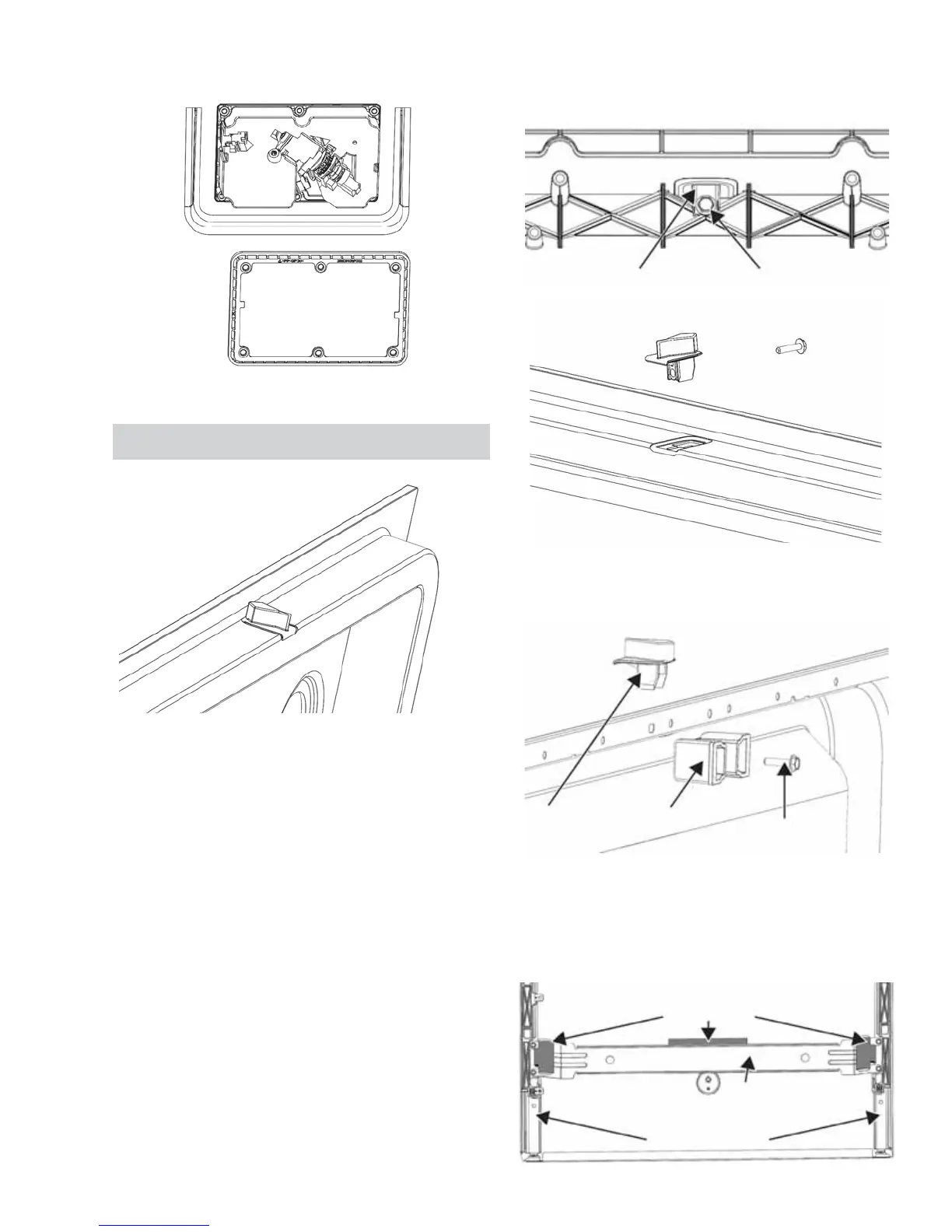

Mounting Plate
5. Mounting plate removes from inside the door.
6. The detergent module can now be removed
from the inner door panel.
Door Strike
The Door Strike is attached to the inner door panel.
Door Strike Removal
1. Remove and separate the door.
2. Remove the control console or control panel.
3. Remove the pocket handle (on front control
models only).
4. Remove the 1/4 in. screw holding the strike (a
Phillips head screw will come with the service
part for easier installation).
5. SS inner door models have an adapter the
screw secures to. The top attach strip must be
removed to access.
Hinge Receivers and Cross Brace (some models)
Stainless steel inner door models have a cross brace
connecting the hinge receivers. This brace acts as a
GRRUVWLȺHQHU
Strike
1/4 in. hex
head screw
Strike Adapter
1/4 in. hex
head screw
Friction Pads
Cross Brace
Hinge Receivers
To Next Page
