Outlet - Lower Spray Arm
Inlet
Outlet - Mid Spray Arm
Bottle Wash
Upper Sprayer
Bypass
Diverter Check Ball
Circulation Motor and Pump Assembly
The circulation motor is a DC Brushed Motor, it has
RQERDUG$&WR'&UHFWL¿FDWLRQ5HVLVWDQFHFDQQRW
be properly checked on this motor because of the
UHFWL¿HUDQGGLRGHVLQVLGHWKHPRWRUVKLHOG
To Remove Circulation Pump Motor Assembly:
1. Disconnect power to the dishwasher.
2. Remove the toe kick panel.
3. Remove the door.
4. Remove the sump module (see the Tub and
Structure section of this guide for sump removal
instructions).
5. Loosen the inlet and outlet wash motor clamps.
6. 6OLGHWKHZDVKPRWRURȺRIWKHKDQJHUDQG
remove and discard the one time use clamps.
WARNING: GE Factory Service Technicians are
REQUIRED to follow Lockout / Tagout (LOTO) 6
Step Process prior to beginning repair.
Diverter
The Diverter is the key component which allows
low water use, by alternating water to the lower
spray arm or mid spray arm, bottle wash (some
models) and upper spray system (some models). It
is important to note the “Bypass” in the rear port of
the diverter, which allows for water to bypass the
check ball in the diverter as described in the next
section.
Operation
• The “Bypass” allows water to bypass the check
ball in the diverter as described in the next step.
7KHGLVKZDVKHULVLQRȺRUVWDQGE\PRGHQR
pump operation. The check ball is at the bottom
of the diverter.

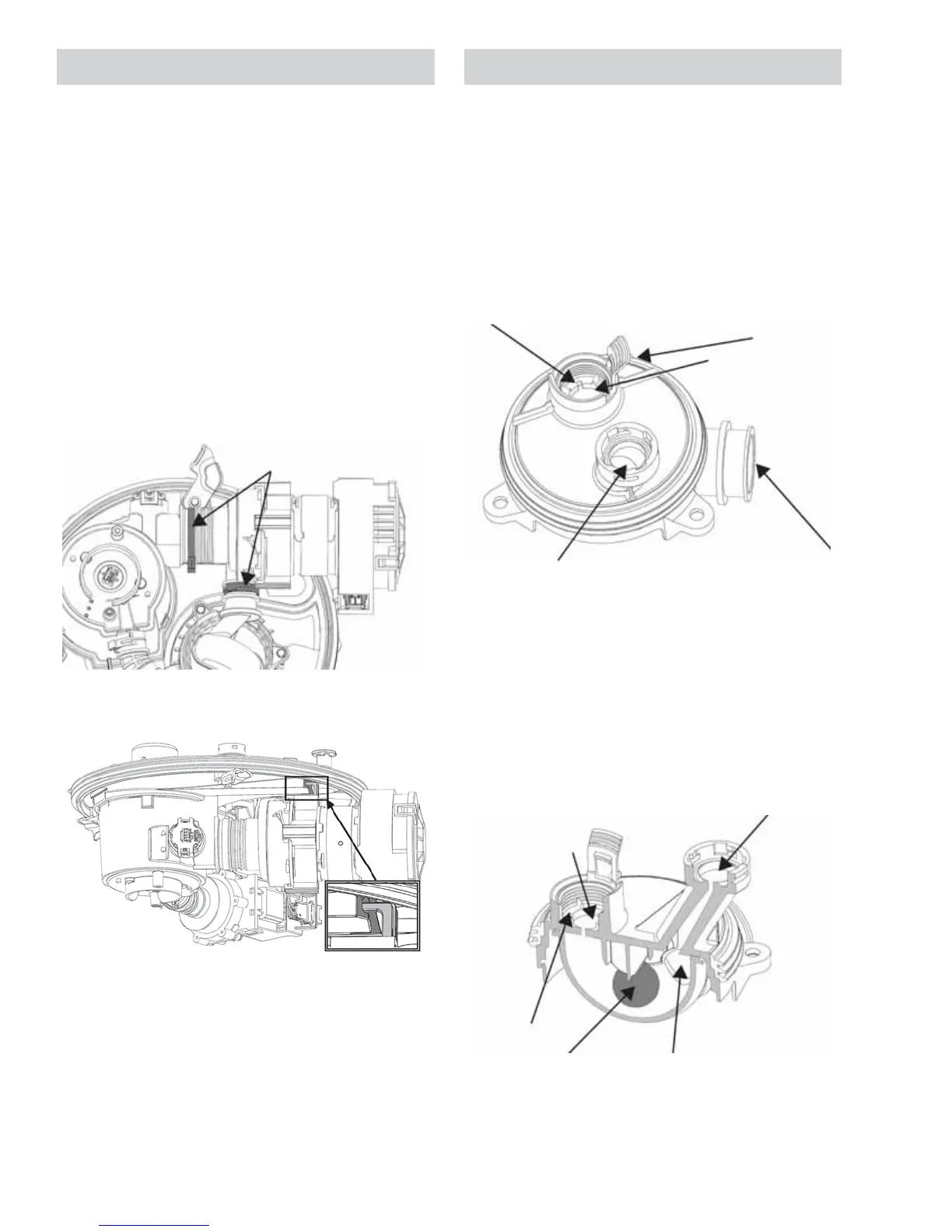

Loosen Clamps
Bypass
Main Conduit
Release
Tab
Main Conduit
Port
Lower Spray Arm Port
Over Molded
Inlet Hose
Inlet
(Continued next page)
