– 25 –

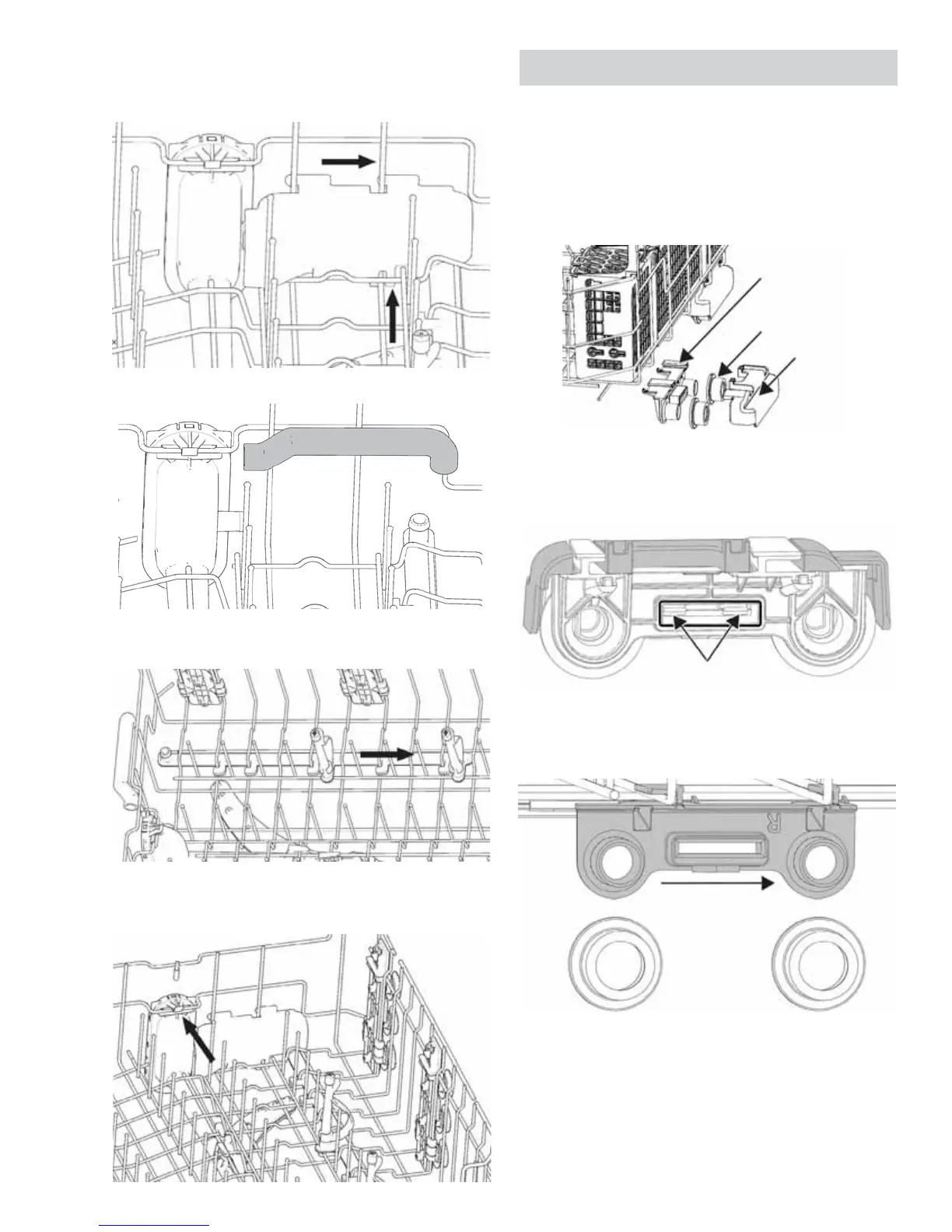

To remove the Bottle Wash Components, remove
the cover by releasing the clip at the bottom and
slide the cover to the right.
Disconnect the hose.
Slide the bottle wash manifold to the front of the
rack.
To the remove Mid Conduit, push on the tab and
slide the conduit to the back of the rack.
Lower Rack
6HYHUDOORZHUUDFNVDUHDYDLODEOHZLWKGLȺHUHQWWLQH
FRQ¿JXUDWLRQVFRQVXOWWKH2ZQHU·V0DQXDOIRU
details on the lower racks.
The lower rack roller assemblies consist of brackets,
rollers, and covers (left or right, two per side) as well
as rollers (four per side).
To remove the lower rack rollers, lift up on the cover
(shaded grey in the image below) to release; then
pull out on the cover to unclip the center tabs.
7KHUROOHUVZLOOVOLGHRȺWKHEUDFNHWDQGWKHEUDFNHW
(shaded grey in the image below) is pushed to the
rear of the rack to remove.
Bracket
Rollers
Cover
Tabs in center
(Continued next page)
