39
06 Electrical Connection
User Manual V1.0-2023-10-30
BAT+
COM1
COM3
COM2
BAT-
BAT+
COM1
COM3
COM2
BAT-
BMS2
BMS1
BAT1+
BAT1-
BAT2+
BAT2-
Battery system 1
Battery system 2

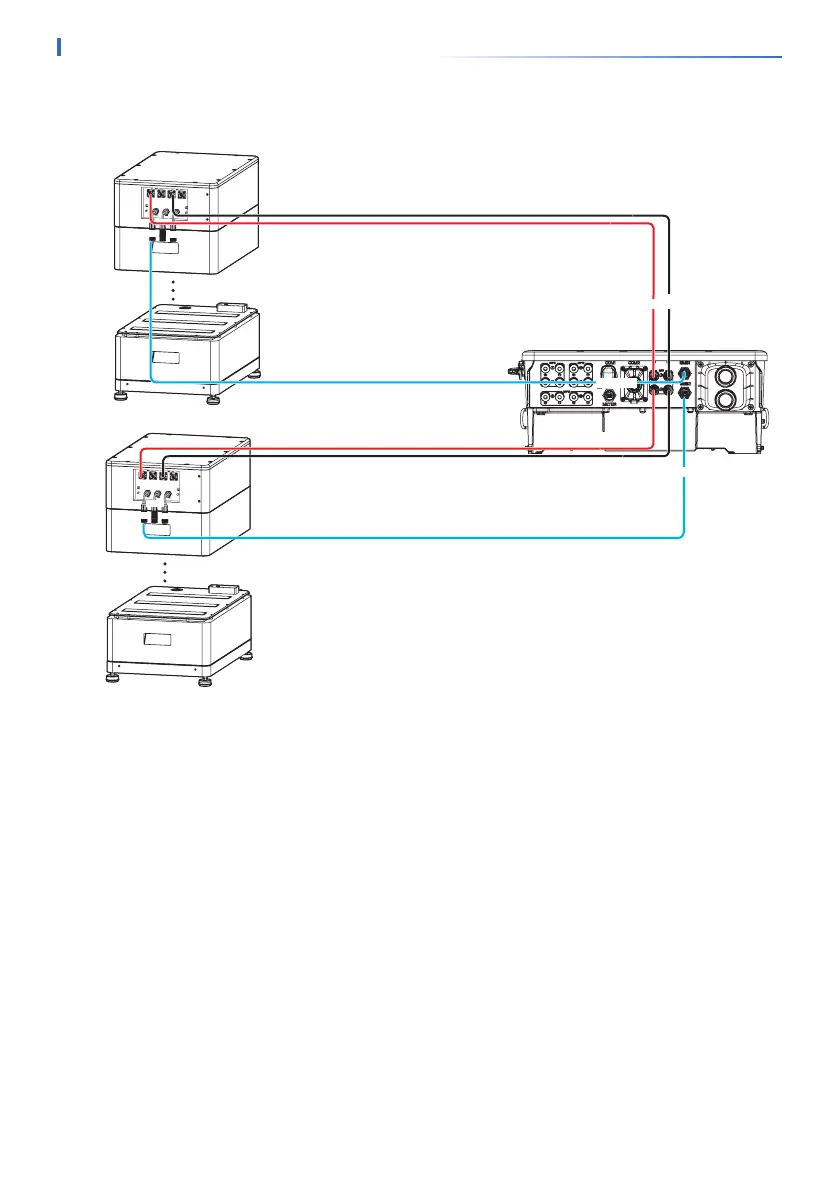

When connecting two single battery systems to BAT2+/- ports of the inverter, the BMS
communication cable should be connected to the BMS1 or BMS2 port respectively as below�
