Top Cover Removal

1- Remove Backsplash and

Pressure Sensor Assemblies as

stated previously.

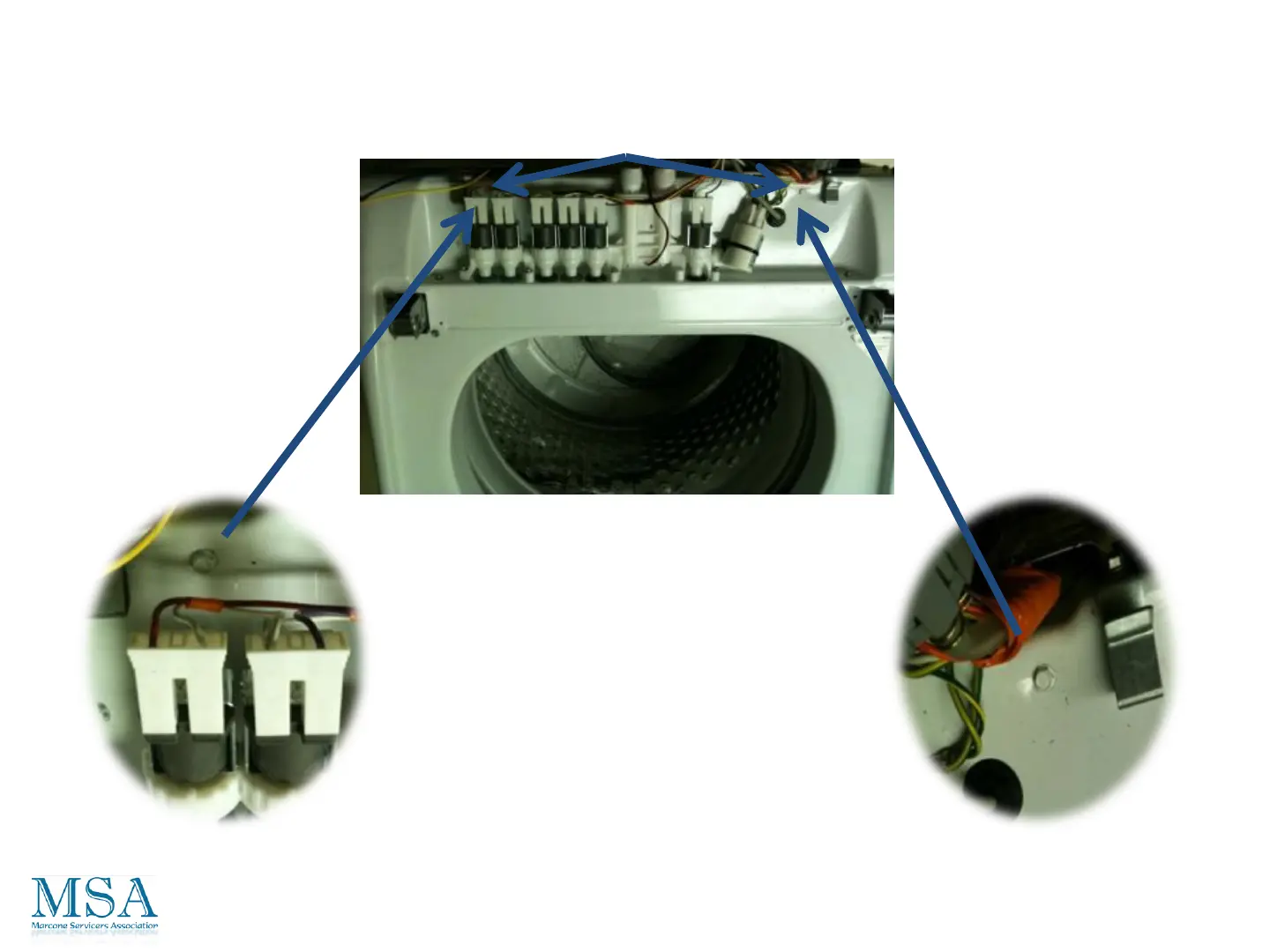

2. Remove two screws at the

rear of the cover that secures

the cover to rear rod support

and ground screw connecting

wire to top cover.

Remove 2 Screws
