Checking from the J803 connecter, BLACK
wire to the WHITE wire, the resistance
should be approximately 12 ohm. Amp
draw is approximately 10 amps

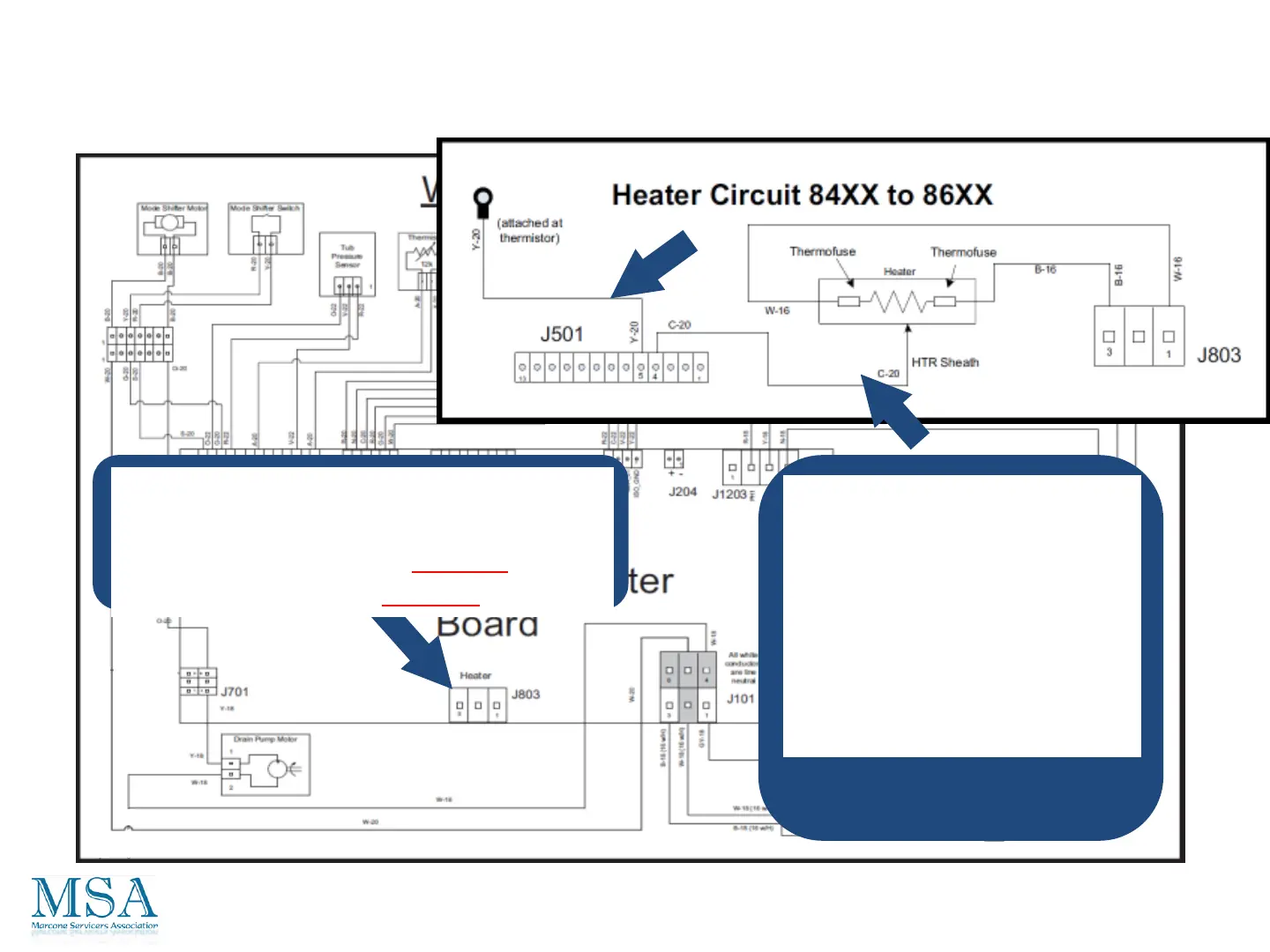

Diagnostics From The Board
Heater and Continuity Circuit
The Brown wire that is on the
heater sheath goes to the J501.
This is the continuity circuit with
the Yellow wire at the
thermistor. If the continuity is
not there between the 2, the
heater will not come on.
NOTE: To read continuity there
needs to be water in the tub.
