Diagnostics From The Board

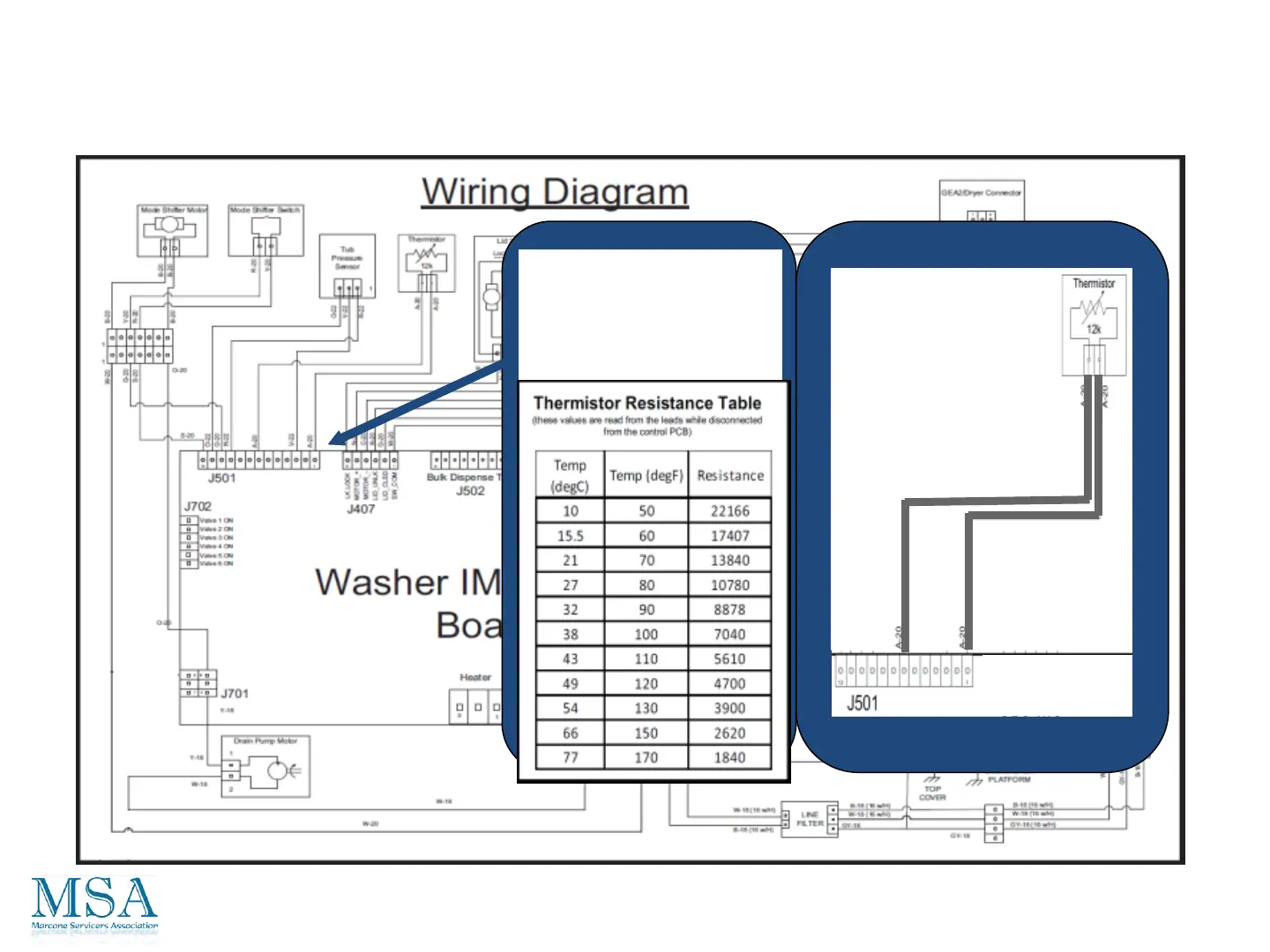

Thermistor Resistance

From the J501

connecter, check

Thermistor resistance

between the 2 AZURE

wires.
