GE GTWN8250DWS - Heater Assembly; Heater Assembly Installation Details

108 pages

To Next Page

To Previous Page

Bottom of Subwasher

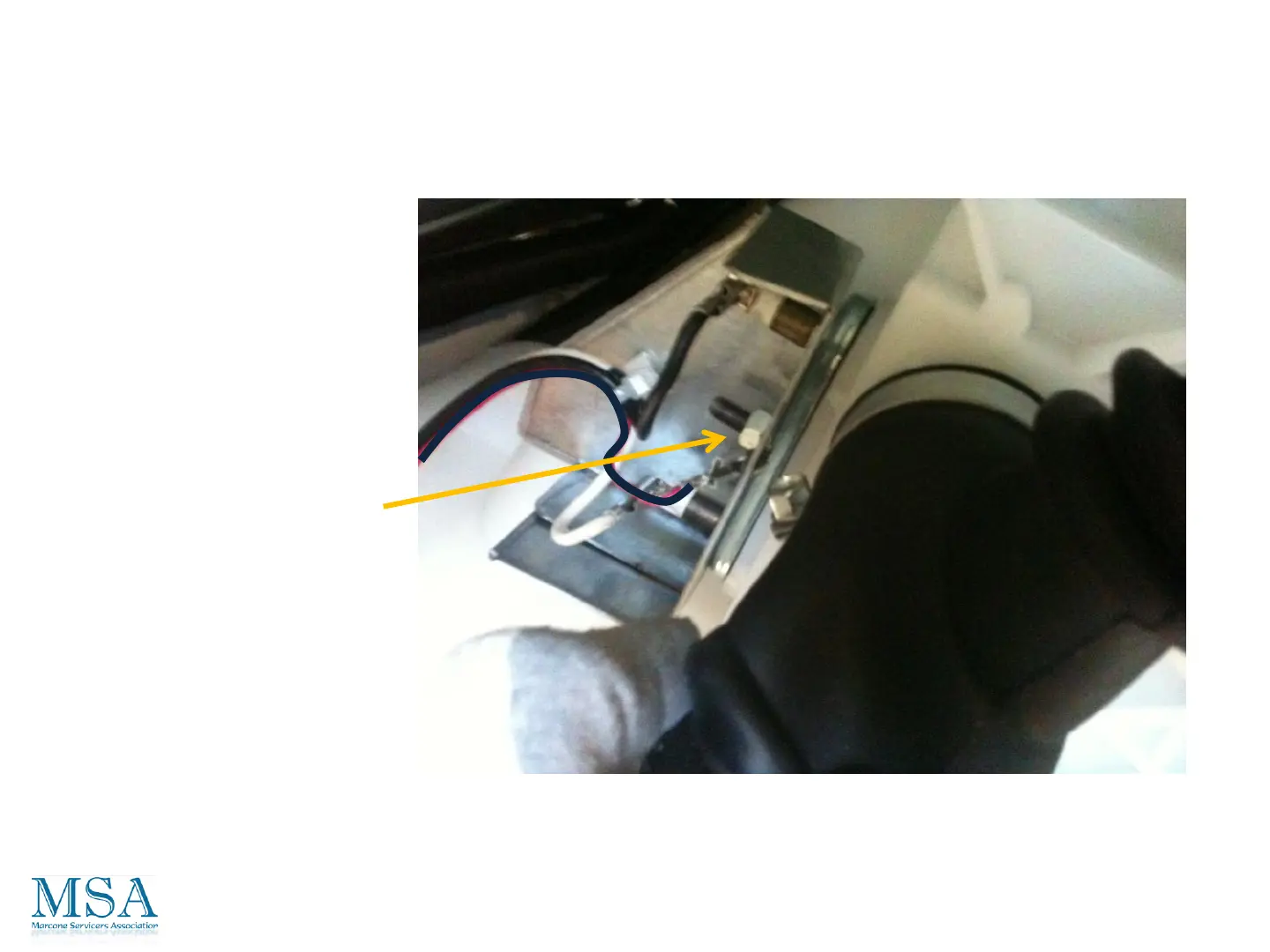

Heater Assembly

Heater Assembly is

similar to what we

see on Front Load

Washers. It Has a

Compressible

Gasket that is

compressed when

the 10 mm nut is

tightened. This

creates a water

tight seal. Torque

spec. is 44 in lbs.
