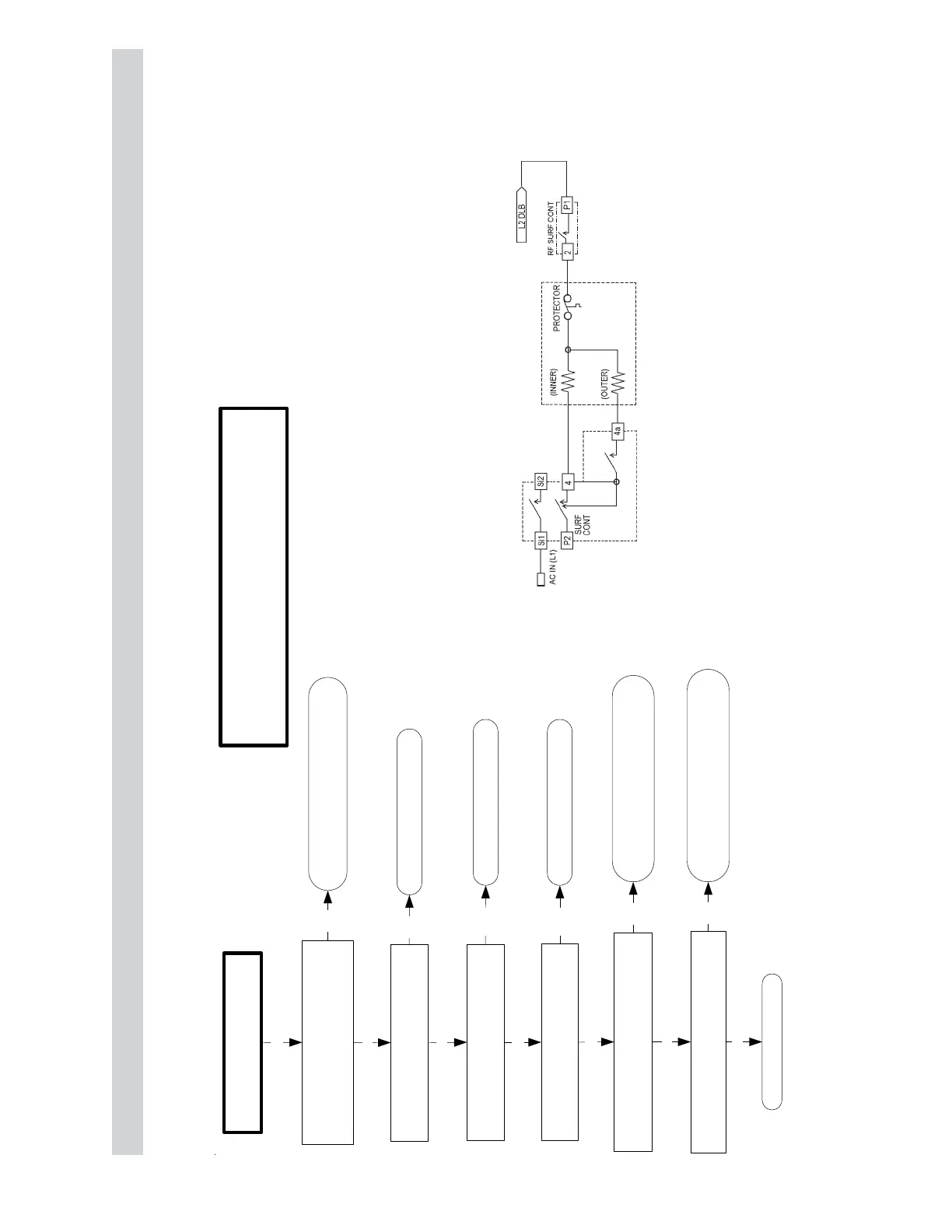

Right Front Element Does Not Work
Turn the right front burner on.
Is the right front element on?
Disconnect the right front elements.
Is 240 VAC present from the Si1 to
the P1 surface control contact?
No
No
Is 240 VAC present from the 4 to
the P1 surface control contact?
Replace the surface control.
Is 240 VAC present from the from the
input contacts at the inner element?
Repair the faulty wiring from the
inner element to the surface control.
Yes
Yes
Yes
Yes
No
No
No
No
NOTE:
The 2 contact of the surface control cycles on and off to
adjust the heat to the desired setting. Make sure that the 2
contact is energized when taking voltage measurements.
Repair the faulty wiring from the L1
or L2 input to the L1 or L2 contacts.
Is 240 VAC present from the 4 to
the P1 surface control contact?
Replace the surface control.
Yes
Is 240 VAC present from the 4 to
the P1 surface control contact?
Replace the surface control.
Replace the element.
Is 240 VAC present from the from the
input contacts at the outer element?
Repair the faulty wiring from the
outer element to the surface control.
No
Yes
