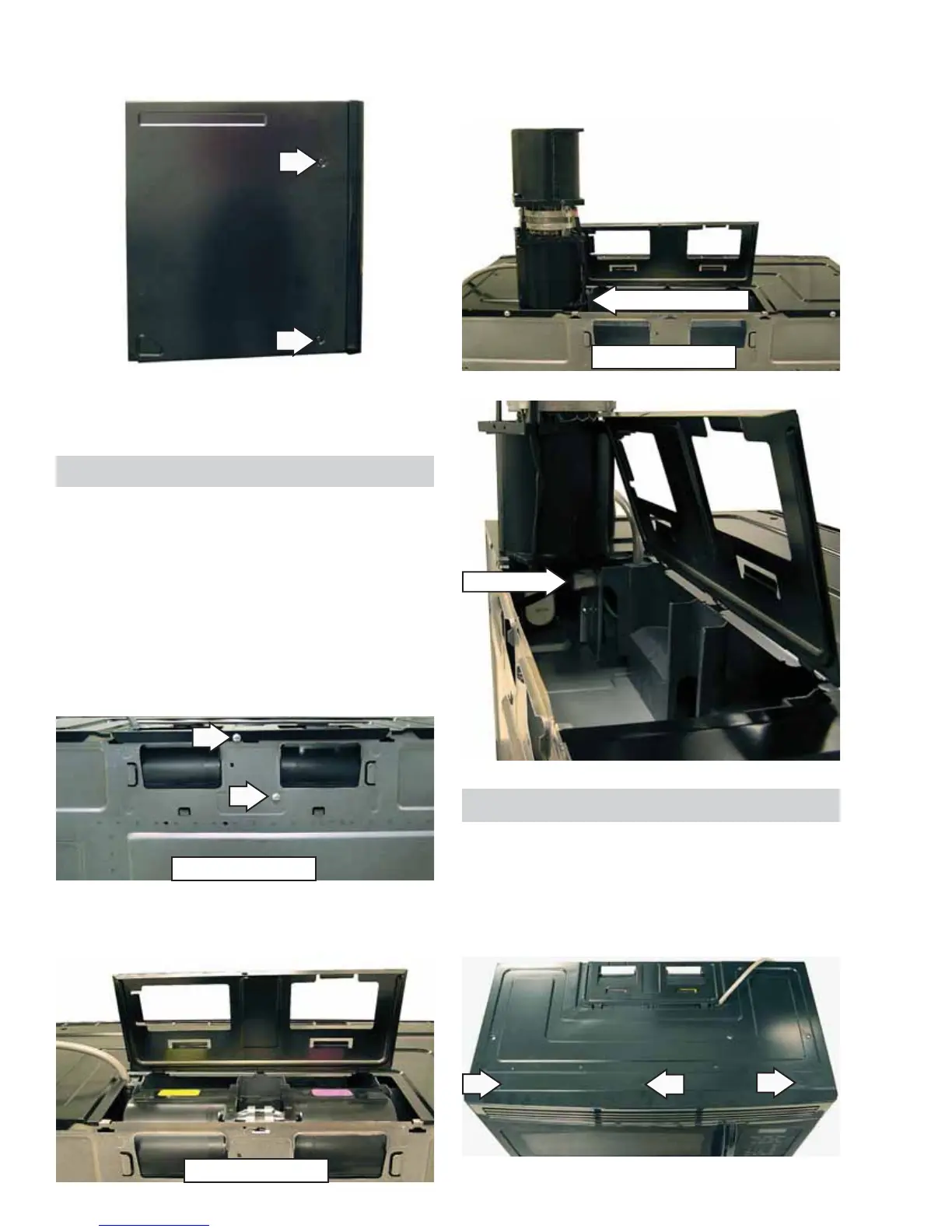

– 16 –
7. Slide the outer cover back about 1 inch toward
the rear of the oven. Lift the cover from the
oven.
6. Remove 2 Phillips-head screws from the left side
of the oven.
Vent Blower
The vent blower is located at the top rear of the
microwave oven. See installation instructions for
the proper method of directing the vent fan prior to
installing the unit.
To remove the vent blower:
Remove the oven. (See 1. Oven Removal.)
Remove 2 Phillips-head screws from the back of 2.
the oven.
3. Lift the vent blower cover up to expose the vent
blower.
View From Rear
4. Lift out the vent blower and place it on top of the
oven side as shown below and disconnect the
electrical connector to the vent blower.
Electrical Connector
View From Rear
View From Rear
Disconnect
Grill Assembly
To remove the grill assembly (Model JVM1540):
Remove 3 Phillips-head screws from the top, 1.
front of the oven cabinet.
Slide grill to the left and remove.2.
To Next Page
