– 13 –

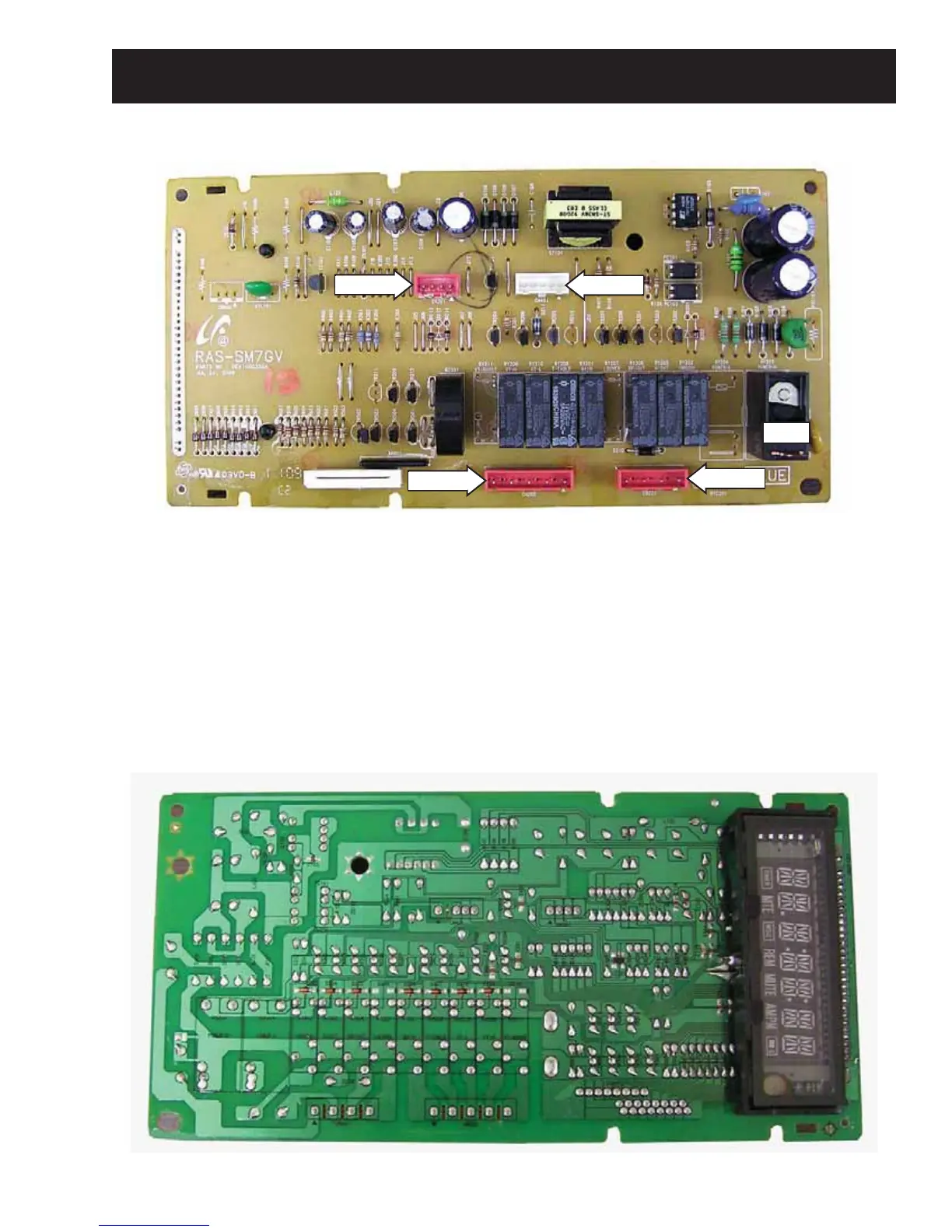

JVM1750 Smart Board
Control Boar
ds and Panel Connections
(Front Side)
(Back Side)
(
Continued Next Page
)
CN202
CN201
RY203
CN301
CN401
CN201 - Vent Motor
CN202 - Turntable Motor
, Cooktop Lamp
CN301 - Gas Sensor
CN401 - Hood TC
O & Door Sensing Switch
RY203 - Secondary Relay (Power Relay)
12
14
Table of Contents
Table of Contents
3
Nomenclature
4
Introduction
5
Control Features
6
Demo Mode (JVM1750)
10
Component Locator Views
11
Control Boards and Panel Connections
13
Components
15
Outer Cover
15
Oven Removal
15
Grill Assembly
16
Vent Blower
16
Control Panel Assembly
17
Interior Light
17
Cavity Thermal Cutout
18
Duct Assembly
18
Smart Board
18
Bottom Thermal Cutout (TCO)
19
Hood Thermal Cutout (TCO)
19
Magnetron Thermal Cutout (TCO)
19
Line Fuse
20
Noise Filter
20
Stirrer Assembly
20
Cooling Fan Motor
21
Magnetron
21
Vent Fan Motor Capacitor
21
Capacitor and Diode
23
High Voltage Transformer
23
Door Interlock Switches
24
Door Assembly
25
Surface Lamps
25
Turntable Motor
25
Diagnostics and Service Information
26
Interlocks (Door Latch Switches)
28
Key Panel Test
29
Schematics and Wiring Diagrams
30
Warranty
34
