– 25 –

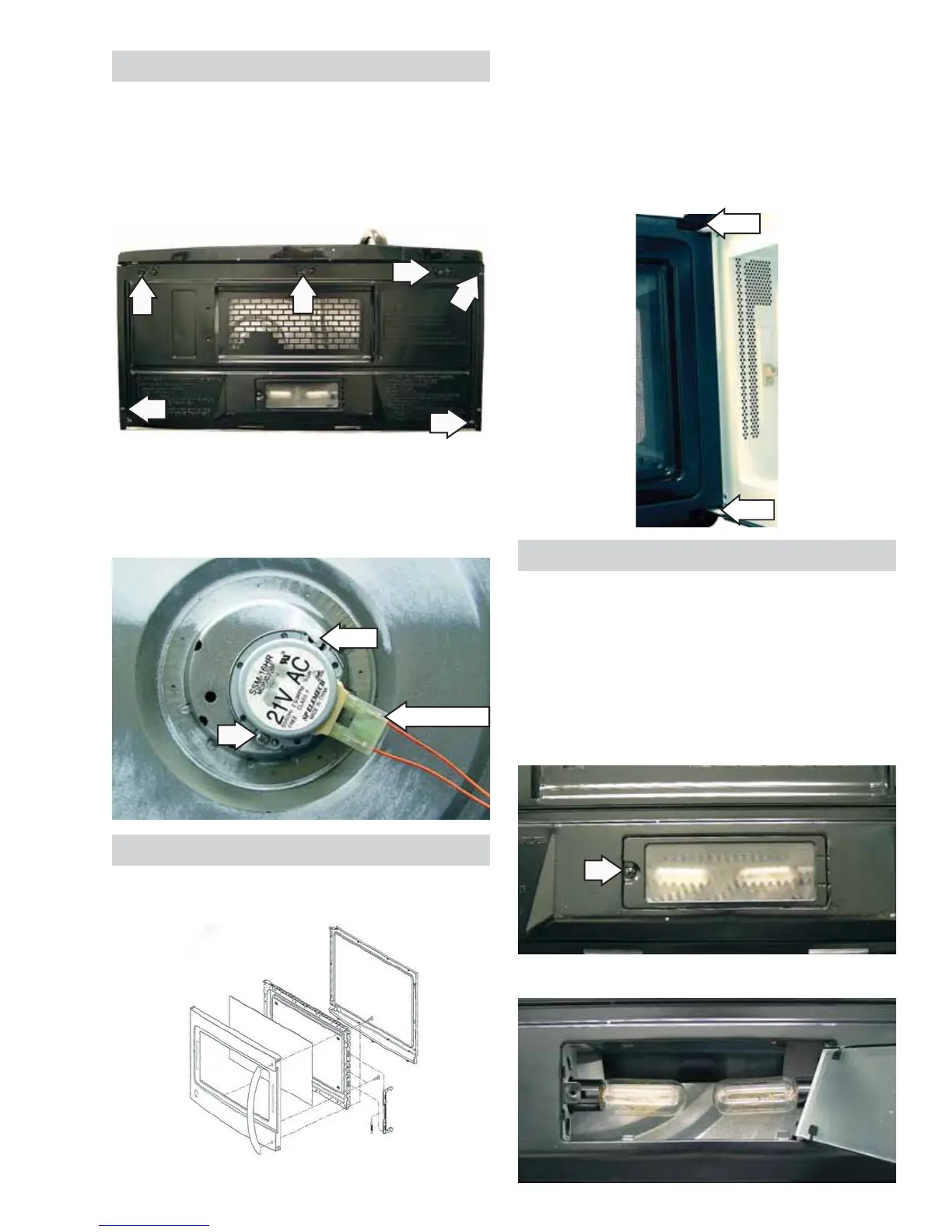

Turntable Motor
The turntable motor is located on the bottom of the
microwave oven. Motor is a 21vac motor.
To remove the turntable motor:
Remove 6 Phillips-head screws from the bottom 1.
of the microwave oven cabinet.
2. Disconnect the turntable motor wiring harness.
3. Remove single Phillips-head screw and twist
motor slightly clockwise to release motor from
the tab on the frame.
Disconnect
Surface Lamps
The surface lamps are 120V, 40-watt incandescent
bulbs (part number WB06X10823).
Note: Model JVM1750 has two bulbs. The JVM1540
model has a single bulb.
To remove the surface lamp assemblies:
Remove the Phillips-head screw from the 1.
surface lens panel, then open the panel.
2. Carefully remove the bulbs.
Door Assembly
The door is available as a complete assembly or as
individual parts.
A microwave leakage test must be performed any
time a door is removed, replaced, disassembled, or
adjusted for any reason. The maximum leakage is 4
MW/CM
2
.
To remove the door, fi rst remove the grill assembly.
(See Grill Assembly.) Then lift the door up and
disengage from the hinge pins.
Pin
Pin
Tab
