Components
Oven Removal
The oven is hooked on metal tabs at the bottom of
the wall mounting plate and fastened to the cabinet
with 3 top cabinet bolts.
To remove the oven from the cabinet or wall
opening:
WARNING: This oven requires 2 people for complete
oven removal.
Disconnect power to the oven.1.
For top-vented models, disconnect the duct and 2.
remove the damper assembly.
Remove the 3 top cabinet bolts.3.
Caution: When removing the oven, be sure to
provide adequate support to prevent dropping the
unit.
Pull the unit forward slowly.4.
Outer Cover

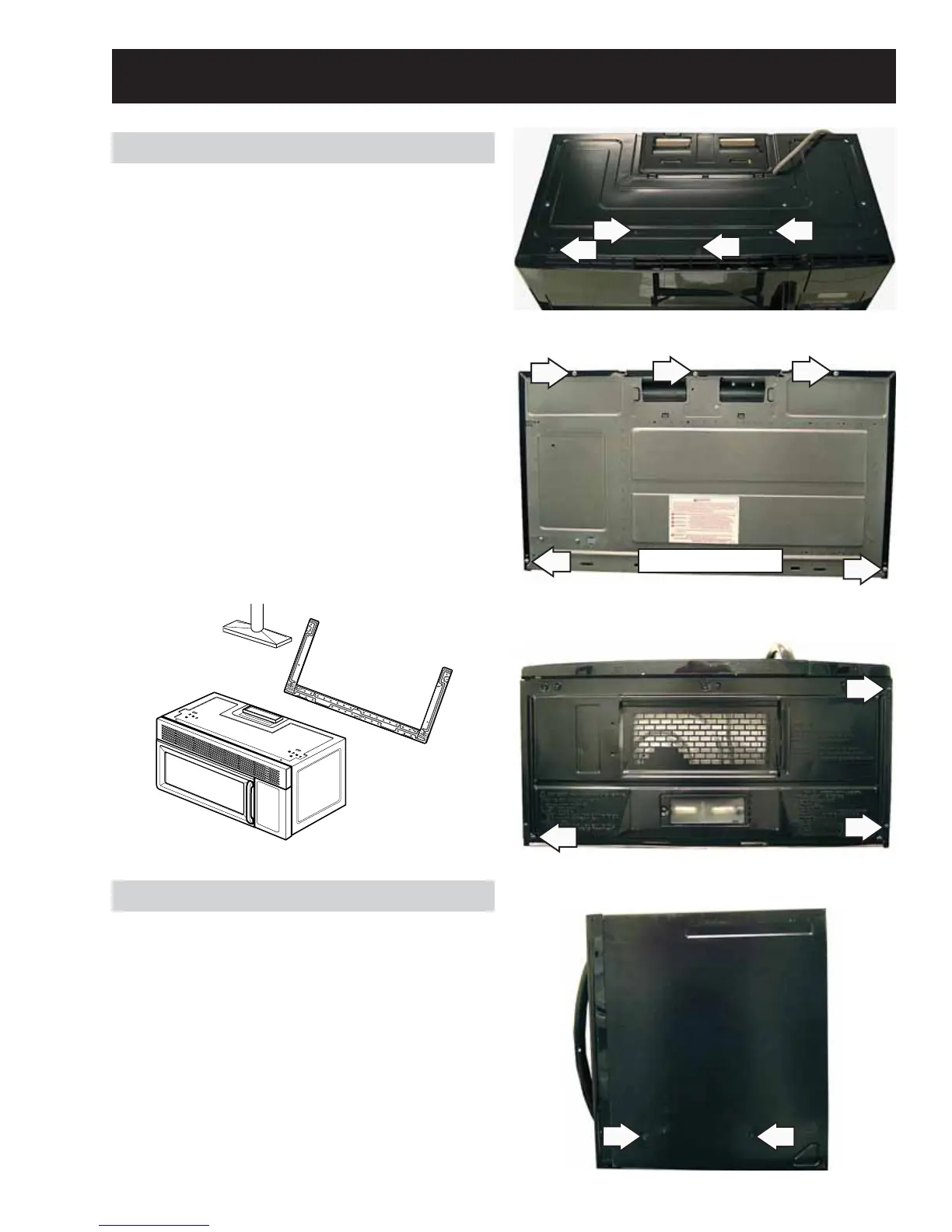

To gain access to many of the oven components, it is
necessary to remove the outer cover.
To remove the outer cover:
Remove the oven. (See 1.
Oven Removal.)
Remove 4 Phillips-head screws from the top of 2.
the oven.
Note: Model JVM1540 has 5 Phillips-head screws on
the top of the oven.
3. Remove 5 Phillips-head screws from the back of
the oven.
View From Rear
4. Remove 3 Phillips-head screws from the bottom
of the oven.
5. Remove 2 Phillips-head screws from the right
side of the oven.
(Continued Next Page)
