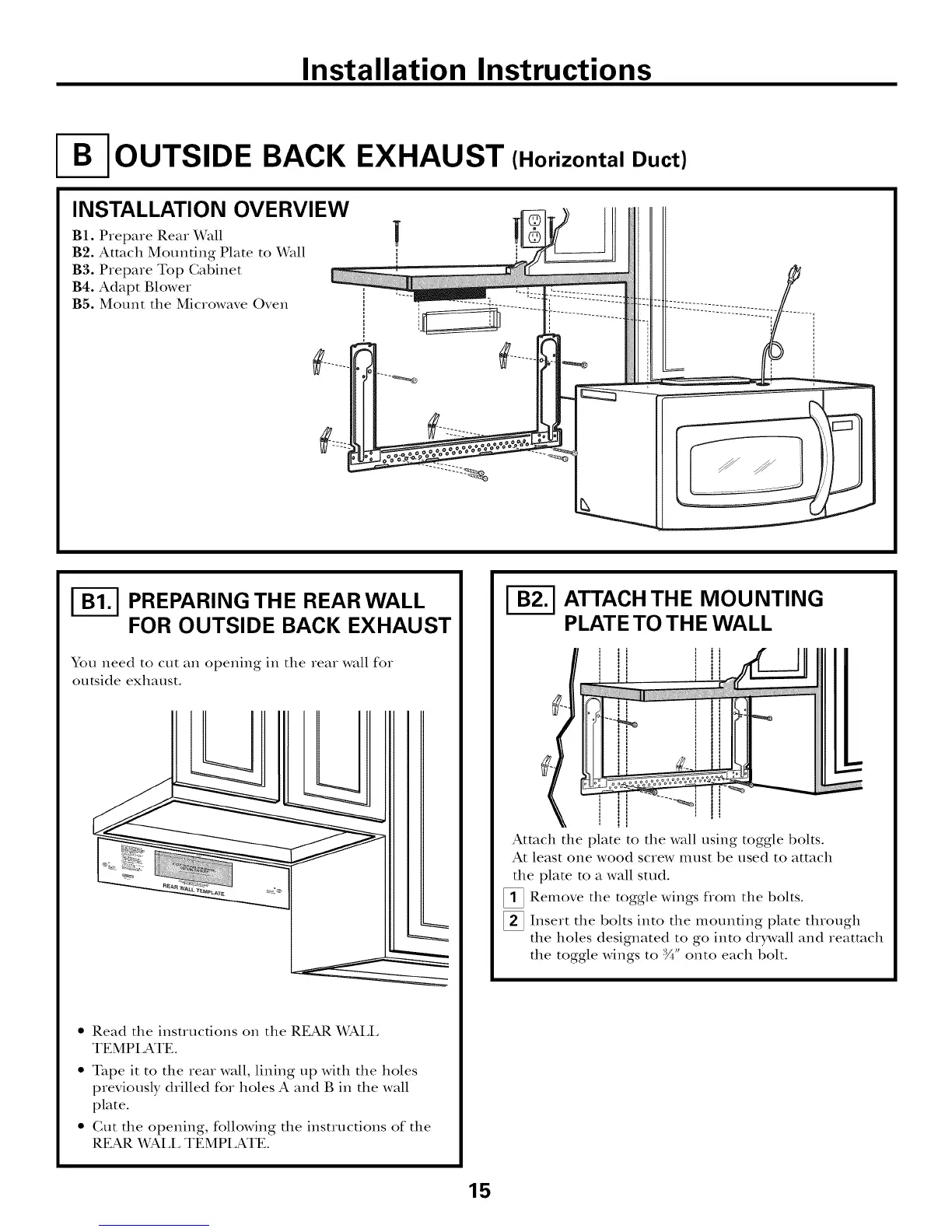

Installation Instructions
OUTSIDE BACK EXHAUST (Horizontal Duct)
INSTALLATION OVERVIEW
B1. Prepme Rear Wall
B2. Attach Mounting Plate to Dvrall
B3. Prepare Top Gabinet
B4. Adapt Blower
B5. Mount the Mic_owave Oven
I-_ PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rea_ wall fo_
outside exhaust.
• Read the instructions on the REAR WALL
TEMPLATE.
• Tape it to the Iea_ wall, lining up with the holes
previously d_illed fo_ holes A and B in the wall
plate.
• Gut the opening, following the instructions of the
REAR V_Pd.L TEMPLATE.
I-_ ATTACH THE MOUNTING
PLATE TO THE WALL
Attach the plate to the wall using toggle bolts.
At least one wood scIew Illust be used to attach
the plate to a wall stud.
_ Remove the toggle wings flom the bolts.
_ Inse_t the bolts into the mounting plate through
the holes designated to go into drDvall and _eatmch
the toggle wings to :_" onto each bolt.
15
