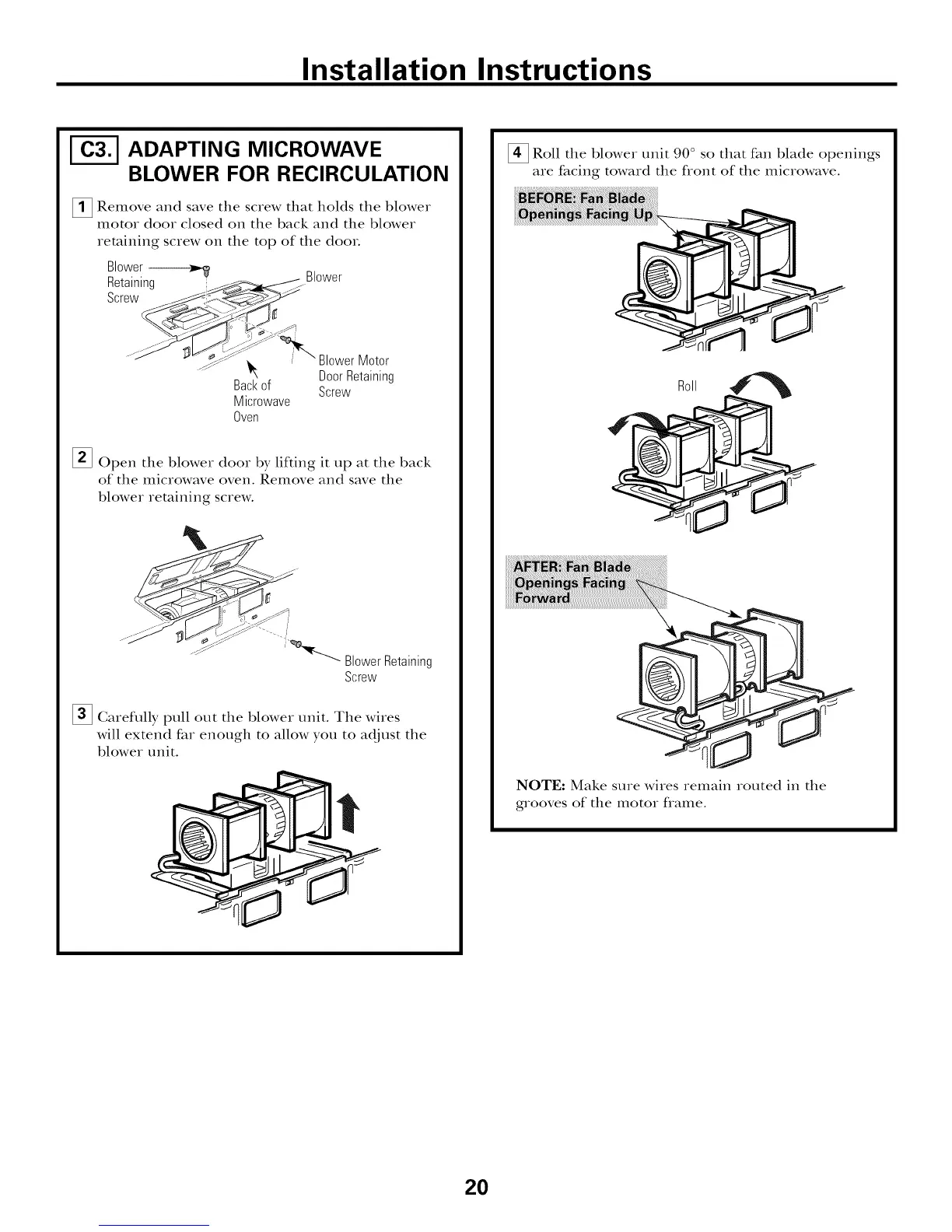

Installation Instructions
ADAPTING MICROWAVE
BLOWER FOR RECIRCULATION
_l_ Remove and the that holds the blower
save sciew
motor door closed on the back and the blower
retaining screw on the top of the doon
Blower--_,,_g
Retaining _ Blower
Screw._,
.__f_?_N. Blower Motor
+_fi>_ _, DoorRetaining
Backof Screw
Microwave
Oven
_] Open the blower door by lifting it up at the back
of the microwave oven. Remove and save the
blower retaining screw.
....._ _b+'_'_?)/'_ ................/_'--'_""_ Blower Retaining
Screw
_] Garefully pull out the blower unit. The wires
will extend far enough to allow you to adjust the
blower unit.
_] Roll the blower unit 90 ° so that fan blade openings
are facing toward the flont of the microwave.
R011 4_
NOTE: Make sure wires remain routed in the
grooves of the motor flame.
