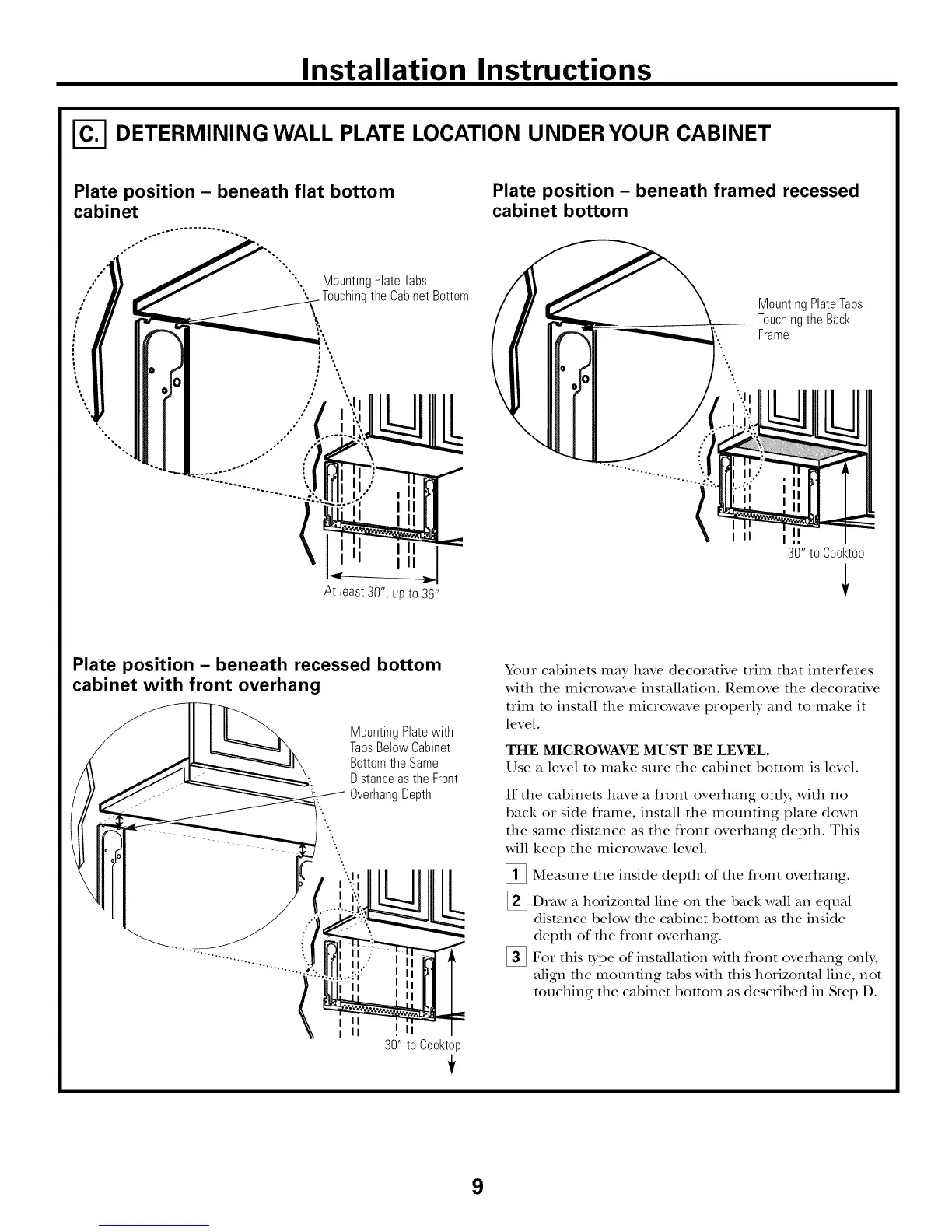

Installation Instructions
I-_ DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
Plate position - beneath flat bottom
cabinet
Plate position - beneath framed recessed
cabinet bottom
oO
",,%
%.
MountingPlateTabs
the CabinetBottom
At least 30", up to 36"
MountingPlateTabs
Touchingthe Back
Frame
30" to Cooktop
Plate position - beneath recessed bottom
cabinet with front overhang
MountingPlatewith
TabsBelow Cabinet
Bottomthe Same
Distanceas the Front
OverhangDepth
i II
i II
30" to Cooktop
Your cabinets may have decorative trim that interferes
with the microwave installation. Remove the decorative
trim to install the microwave properly and to make it
level.
THE MICROWAVE MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.
If the cabinets have a flont overhang only, with no
back or side frame, install the mounting plate down
the same distance as the flont overhang depth. This
will keep the microwave level.
[]Measure the inside depth of the flont overhang.
_] Draw a horizontal line on the back wall an equal
distance below the c;d)inet bottom as the inside
depth of the flont overhang.
_]For this type of installation with flont overhang only,
align the mounting robs with this horizontal line, not
touching the ctd)inet bottom as described in Step D.
9
