Chapter 3 System Setup 3-27
3-6-5-4 Connect peripherals (cont’d)
L.) Connect the external monitor to the system. The monitor can be properly connected using the VGA
port.
Press Ctrl+Alt+V
on the keyboard, a dialog box appears.
Select Intel(R) Dual Display Clone
; check the Same display configuration driver on both display box
and select OK
.
NOTE: Please refer to the operation manual of each peripheral for information needed by the user to
operate the system safely.
NOTE: For LOGIQ e R5.2.x, R6.x.x, R7.x.x, LOGIQ e Vet R6.x.x, R7.x.x, the default set is dual, it will
not pop up Figure 3-28.
For detailed installation information, please refer to the LOGIQ e/LOGIQ e Vet/LOGIQ i/Vivid e
Peripheral Installation manual.

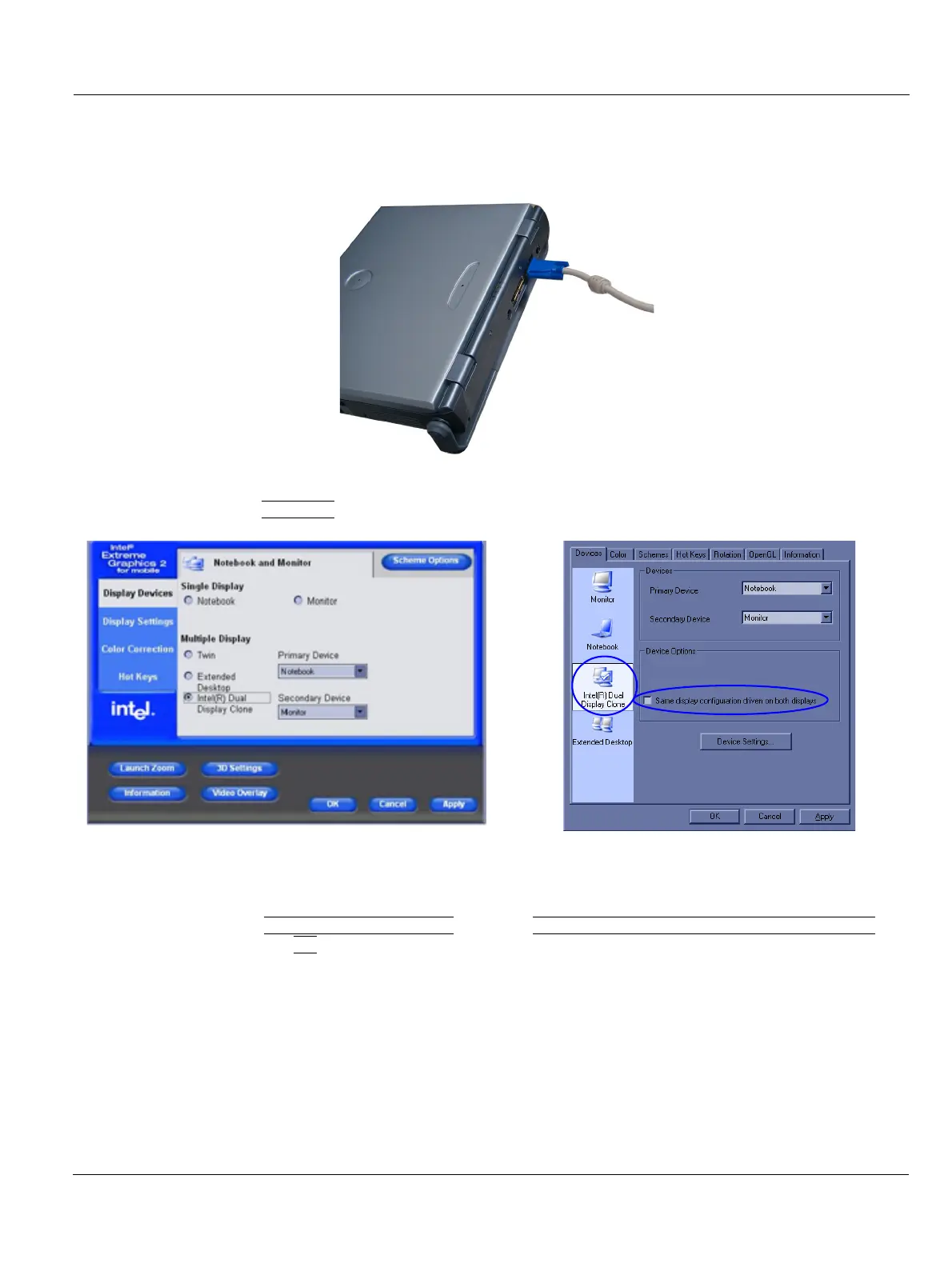

Figure 3-27 VGA Connection
Figure 3-28 Graphics Controller Properties
For LOGIQ e R5.x.x, R6.x.x, R7.x.x, LOGIQ i R5.x.x,
For LOGIQ e R4.x.x, LOGIQ i R4.x.x, Vivid e R4.x.x
Vivid e R5.x.x/R6.x.x, LOGIQ e Vet R6.x.x, R7.x.x
