GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
Section 3-9 - Optional Peripherals/Peripheral Connection 3 - 39
3-9-1 Connecting the Secondary “Patient” LCD Monitor (cont’d)
3-9-1-1 WIthout UVC

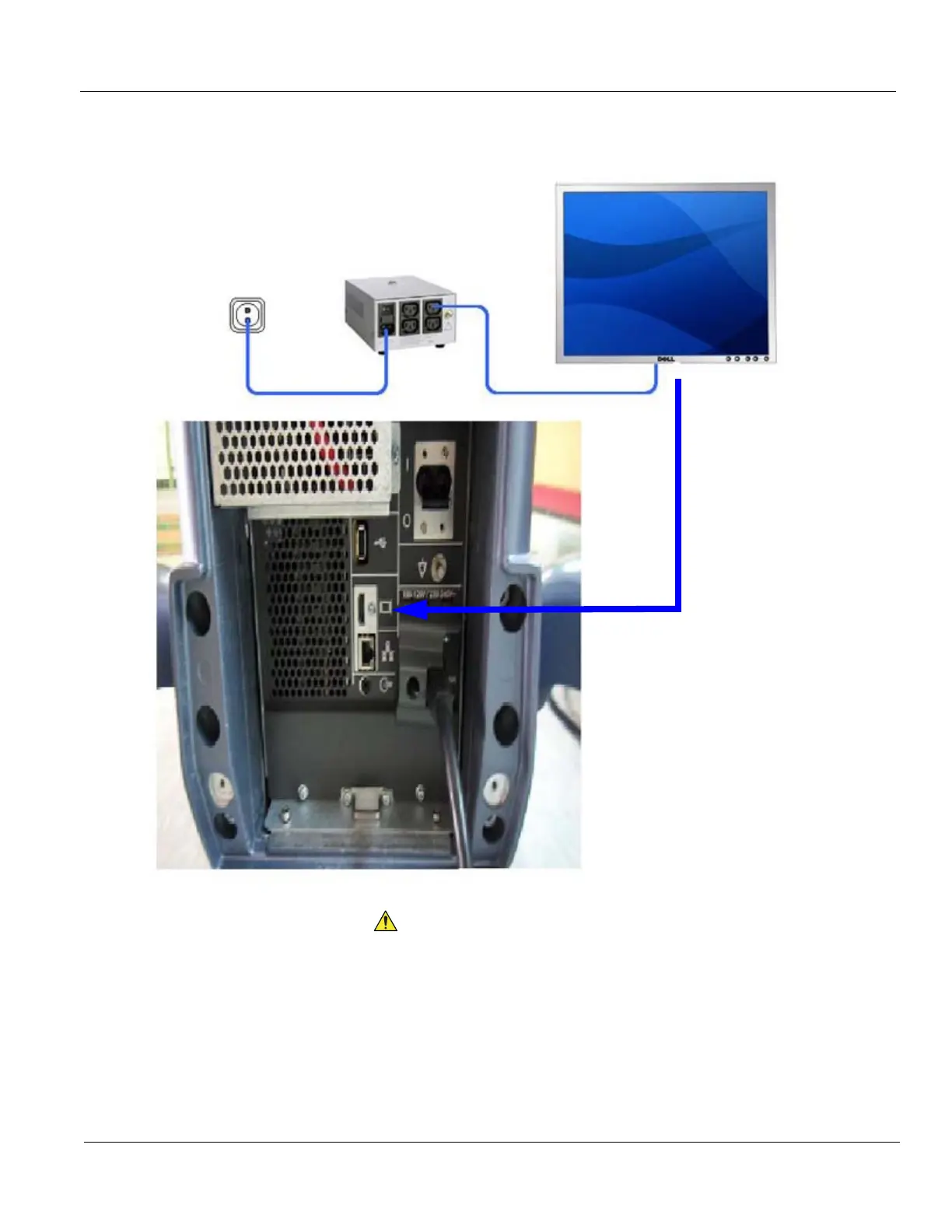

Figure 3-26 Connection Scheme - Secondary LCD Monitor without UVC
HDMI to DVI / HDMI to HDMI cable
connected to the
rear side of the
2nd Monitor
Secondary Monitor
A
ppropriate
Transformer
A Secondary “Patient” Monitor MUST NEVER be connected to the LOGIQ S8’s mains supply directly!
Always connect it to an appropriate Isolation Transformer
CAUTION
!! CAUTION:
