GE H
EALTHCARE
D
IRECTION
5394227, 12
LOGIQ
S8/LOGIQ
E
8
S
ERVICE
M
ANUAL
Section 7-4 - Serv
ice Desktop (CSD)
- R1 to R4
7 - 25
7-4-7
Image Quality
In the
Image Quality
page, you
can verify image qu
ality.
NOTE:
This
page is not populated
in this version.
7-4-8
Calibration
There is no accessible
parameters from Calibra
tion.

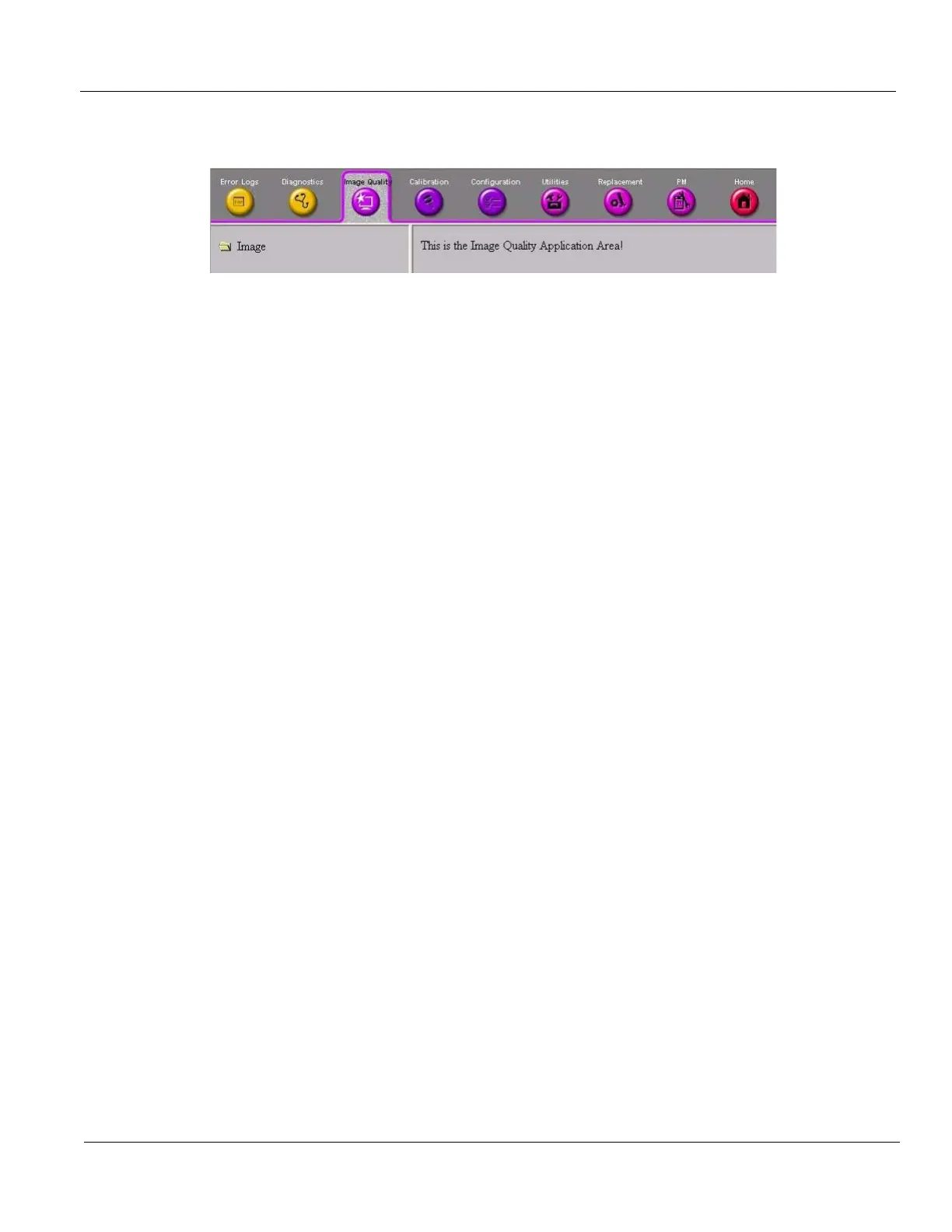

Figure 7-24 Common Ser
vice Desktop - Image Quality
294
