GE LOGIQ E8 - Page 137

GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
Section 3-10 - Printer Installation 3 - 59
3-10-2-1 Connection Scheme: Color Printer

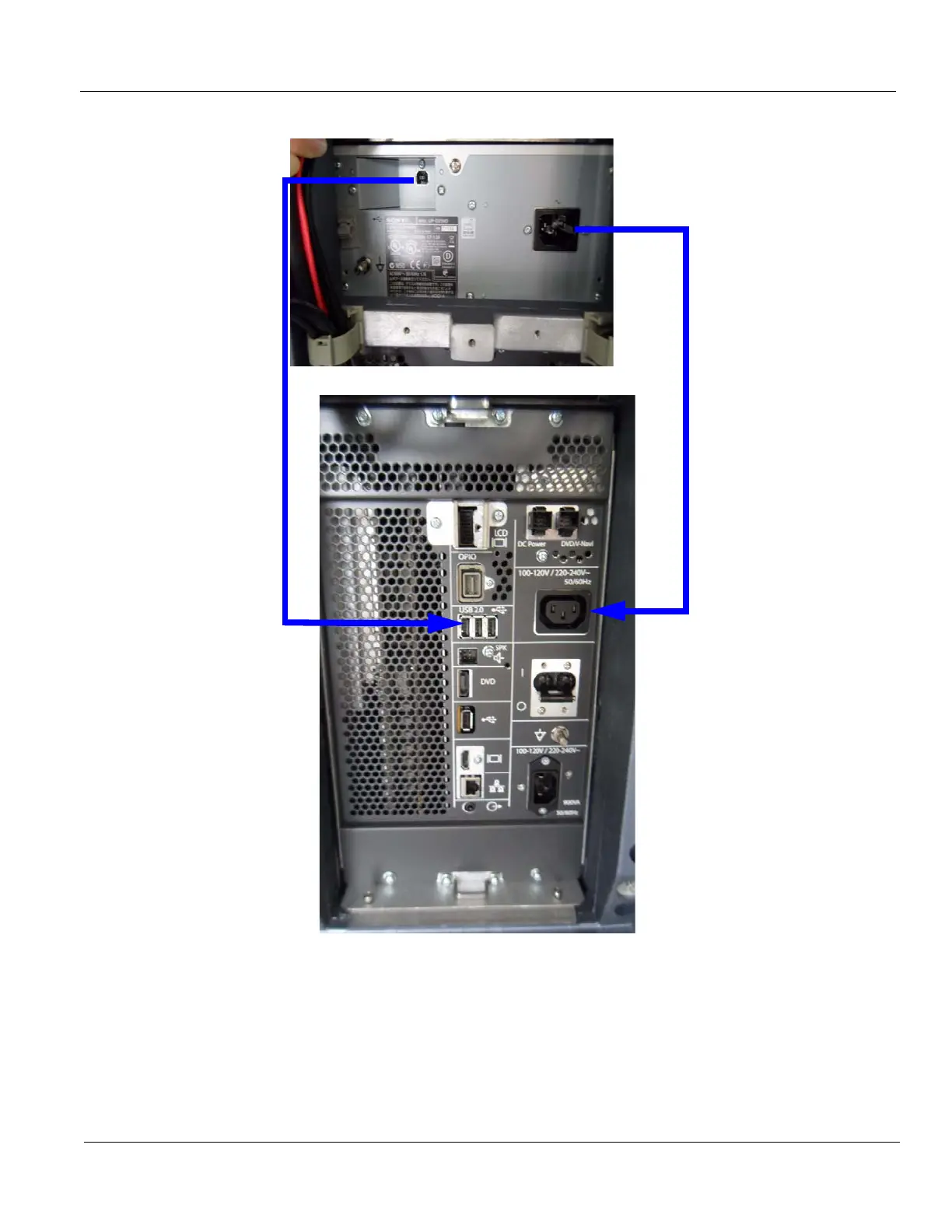

Figure 3-40 R1 and R2 Color Printer connection
