DIRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
5 - 4 Section 5-2 - General Information
5-2-1-2 R4 and later

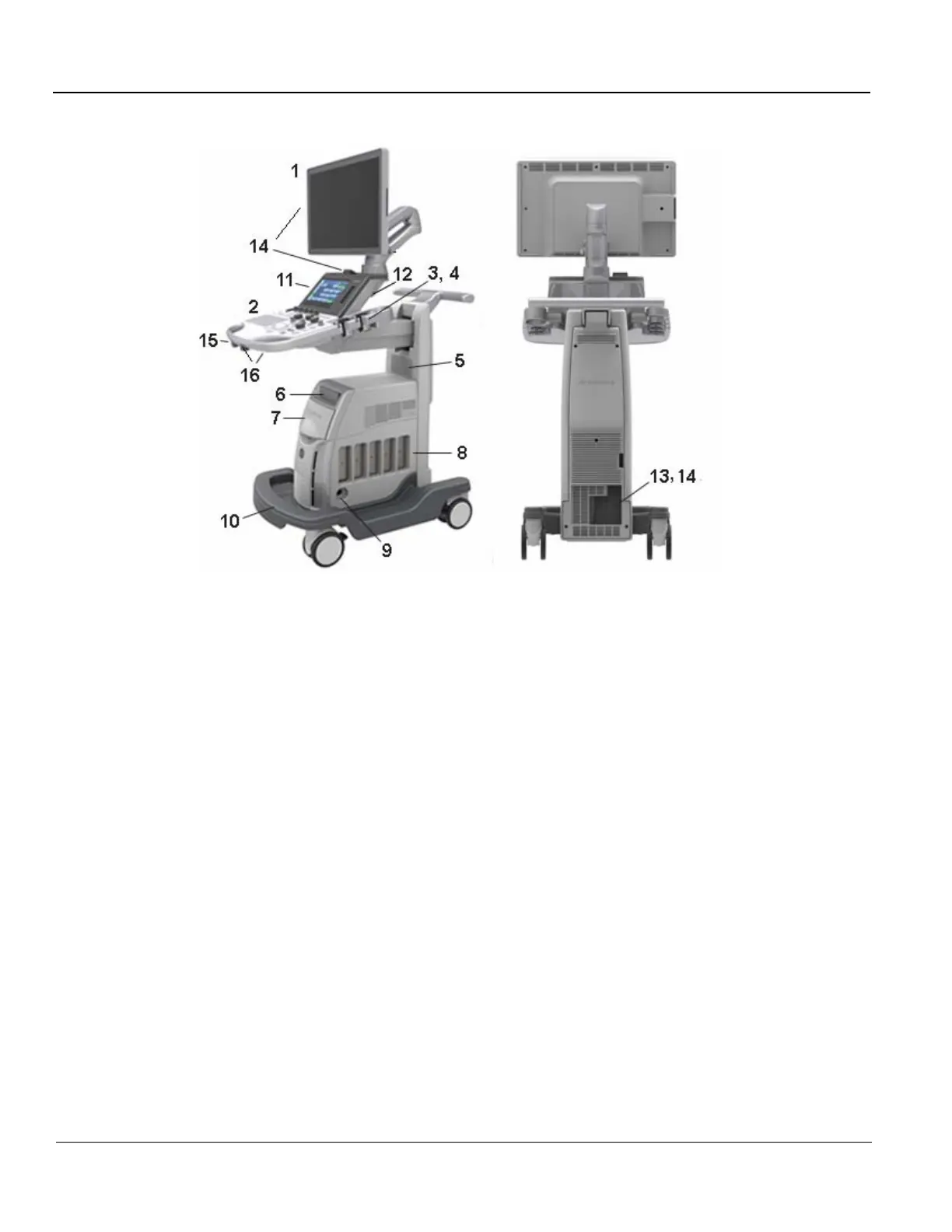

Figure 5-2 LOGIQ S8 R4 and later System (Mid cabinet type example)
1.) Wide Monitor
2.) Control panel
3.) Probe holder
4.) Gel warmer
5.) Audio speaker
6.) DVD Drive
7.) Blind cover, B/W printer, Color Printer. Drawer, V-Nav controller or FibroScan module
8.) Probe port - 4 active probe ports, 1 parking port.
9.) CW pencil probe port
10.)Footrest
11.)Measurement Selection Menu
12.)ECG connector
13.)External I/O panel
14.)USB port
15.)Control panel swivel lever
16.)Control panel up/down lever
