Chapter 4 - Page 4-33

4-8-3 TGC key assy/TGC Knob set, Sub keyboard encoder Knob Set, keycap set, Main

keyboard Encoder Knob set Function Validation Procedure

• Check if the each button operates properly.

• Check if encoder knobs are in the center.

• Check if the keycap set can not be removed easily.

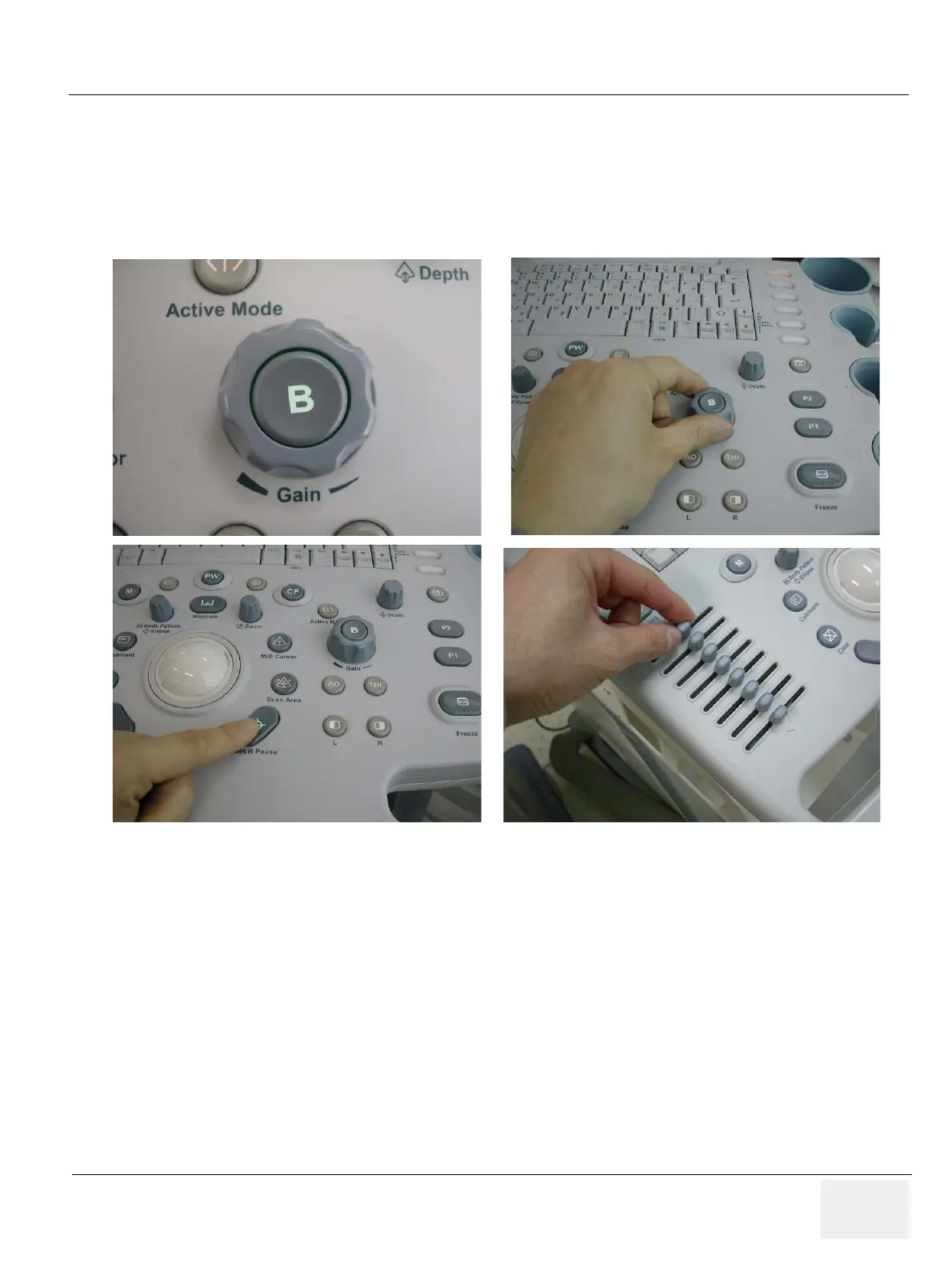

Figure 4-31 Keycap set, Main keyboard encoder knob set
