GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 5 - Page 5-21

5-6-3-2 DVD Recorder

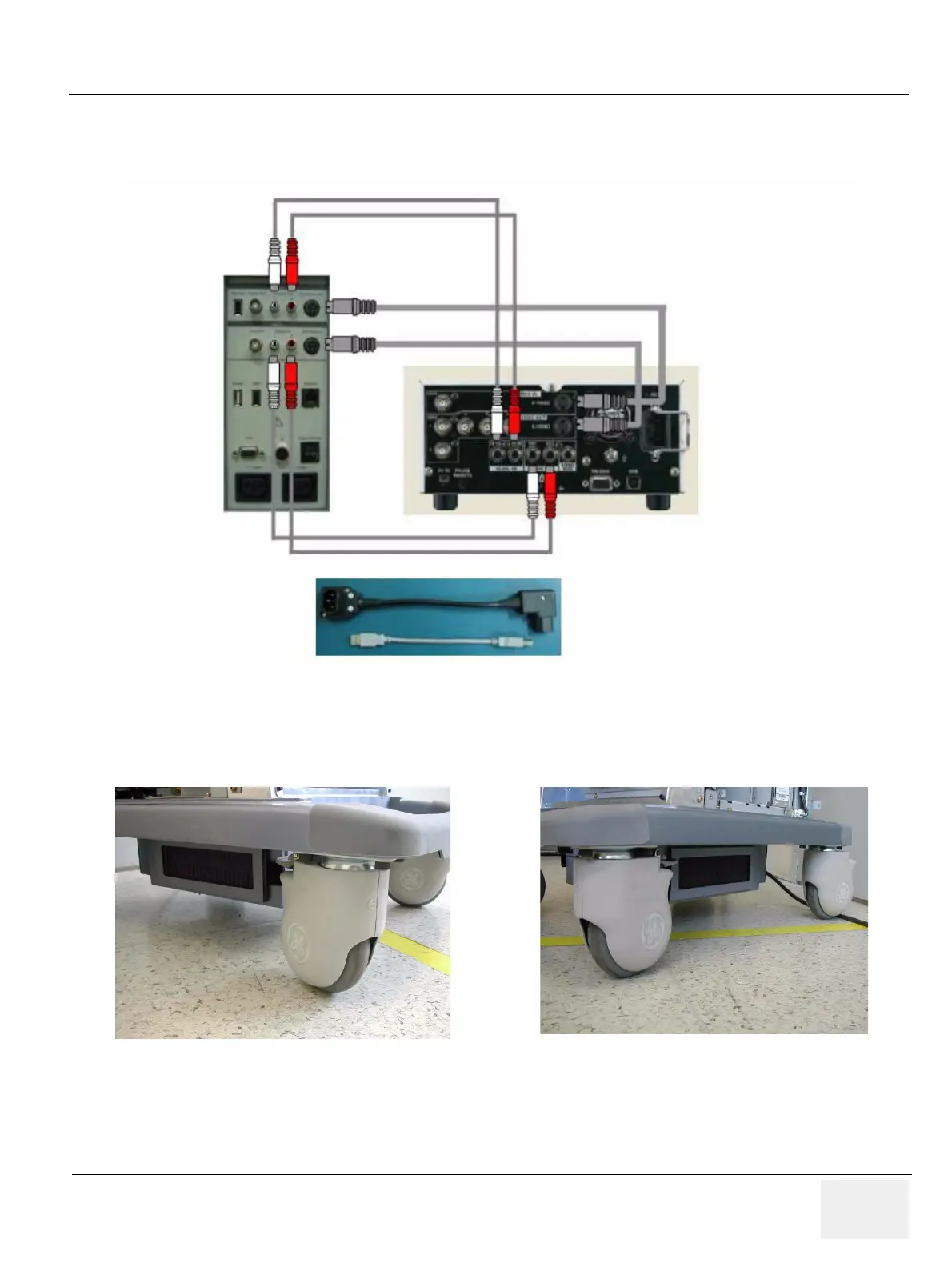

Connect the cables as shown in Figure 5-20..

5-6-4 Filters

There are two filters, located in both right and left sides of TRANSBOX(AP950)

Figure 5-20 DVD Recorder

Figure 5-21 Location of Air Filter

Audio cable with RCA Jack

S-Video Cable

Audio cable with RCA Jack

(a) (b)
