GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-89
8-2-41 NEST FAN Assy
8-2-41-1 Tools
• Common Phillips screwdrivers
8-2-41-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-41-3 Removal procedure
1.) Remove the Left and Right Covers. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-48.
2.) Remove the EMI Right and Left covers. Refer to the 8-2-24 "EMI Cover L and R" on page 8-63.
3.) Cut the cable tie, and unplug the ‘FAN’ connector.
4.) Unscrews the two screws.
5.) Pull out the FAN assy forward from the nest.

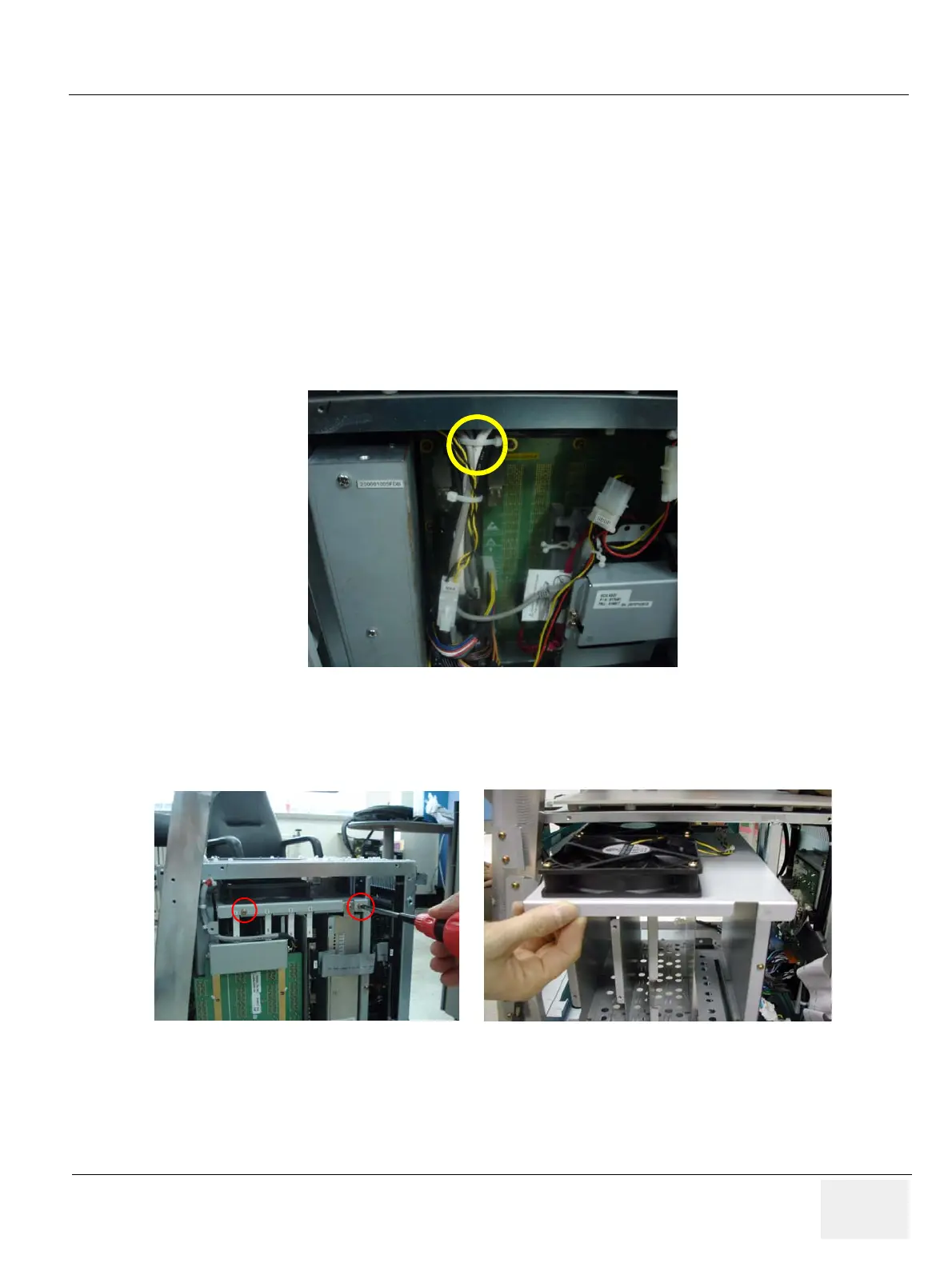

Figure 8-131 Connector and Screw2 screws on the Nest Fan
Figure 8-132 Pull out the nest fan
