GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-194 Section 8-7 - Mechanical Option Installation instruction

8-7-20 DVR Fixture Top Installation - SONY DVO-1000MD DVD Recorder

1.) This section describes the installation procedure of SONY DVO-1000MD DVD recorder.

2.) Unscrew 2 existing screw from the TOP COVER.

3.) Assemble the FIXTURE DVD BOTTOM BRKT on the TOP COVER by screwing 2 screws

(2327592, FH M4X14).

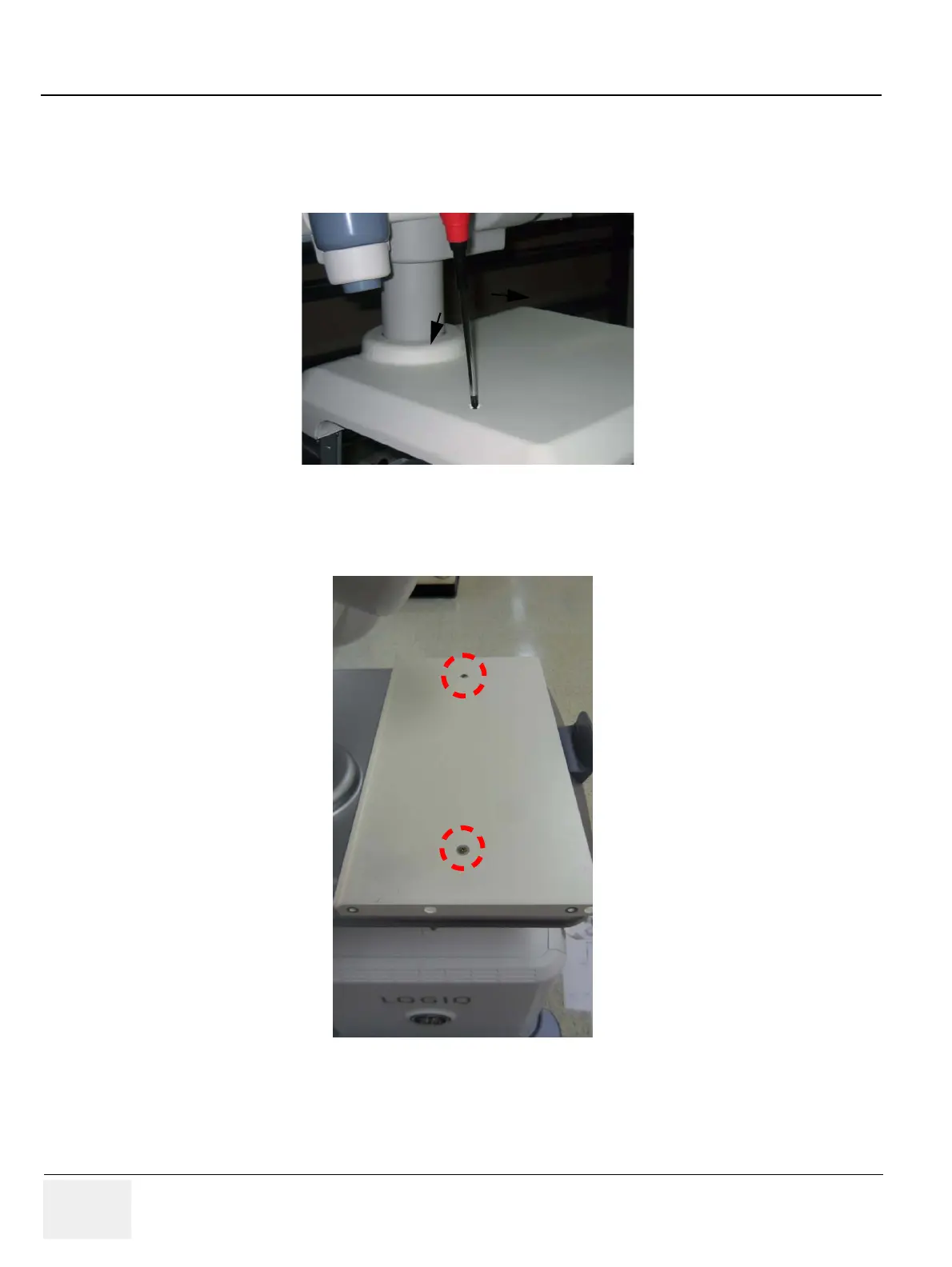

Figure 8-322 SONY DVR Fixture Top Installation

Figure 8-323 SONY DVR Fixture Top Installation
