GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-195

8-7-20 DVR Fixture Top Installation - SONY DVO-1000MD DVD Recorder (cont’d)

4.) Assemble the SONY DVO-1000MD to TOP FIXTURE BRKT by screwing 4 screws (2306562, FH

M3X6).

5.) Assemble the DVO-1000MD with TOP FIXTURE BRKT to FIXTURE DVD BOTTOM BRKT by

screwing 4 screws (2159333, BH M4X8).

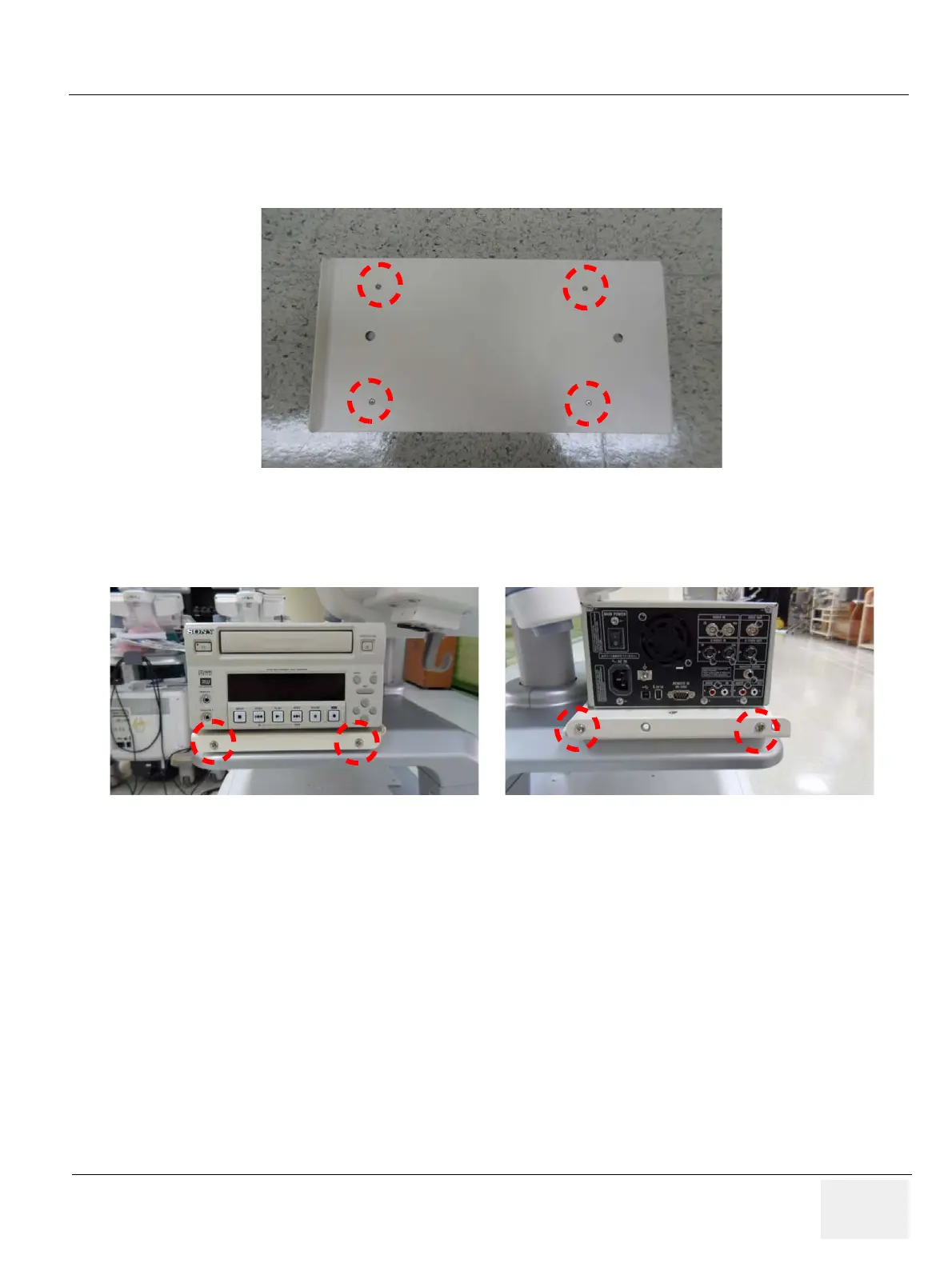

Figure 8-324 SONY DVR Fixture Top Installation

Figure 8-325 SONY DVR Fixture Top Installation
