GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-154 Section 8-7 - Mechanical Option Installation instruction

8-7-1 Endo Probe Holder Installation

1.) Check out the 2 screw holes to be used to install Endo Probe Holder.

2.) Install Endo Probe holder on the bottom side of the Cable Arm Hook by screwing 2

screws(2159634, BH M4x10 WHT).

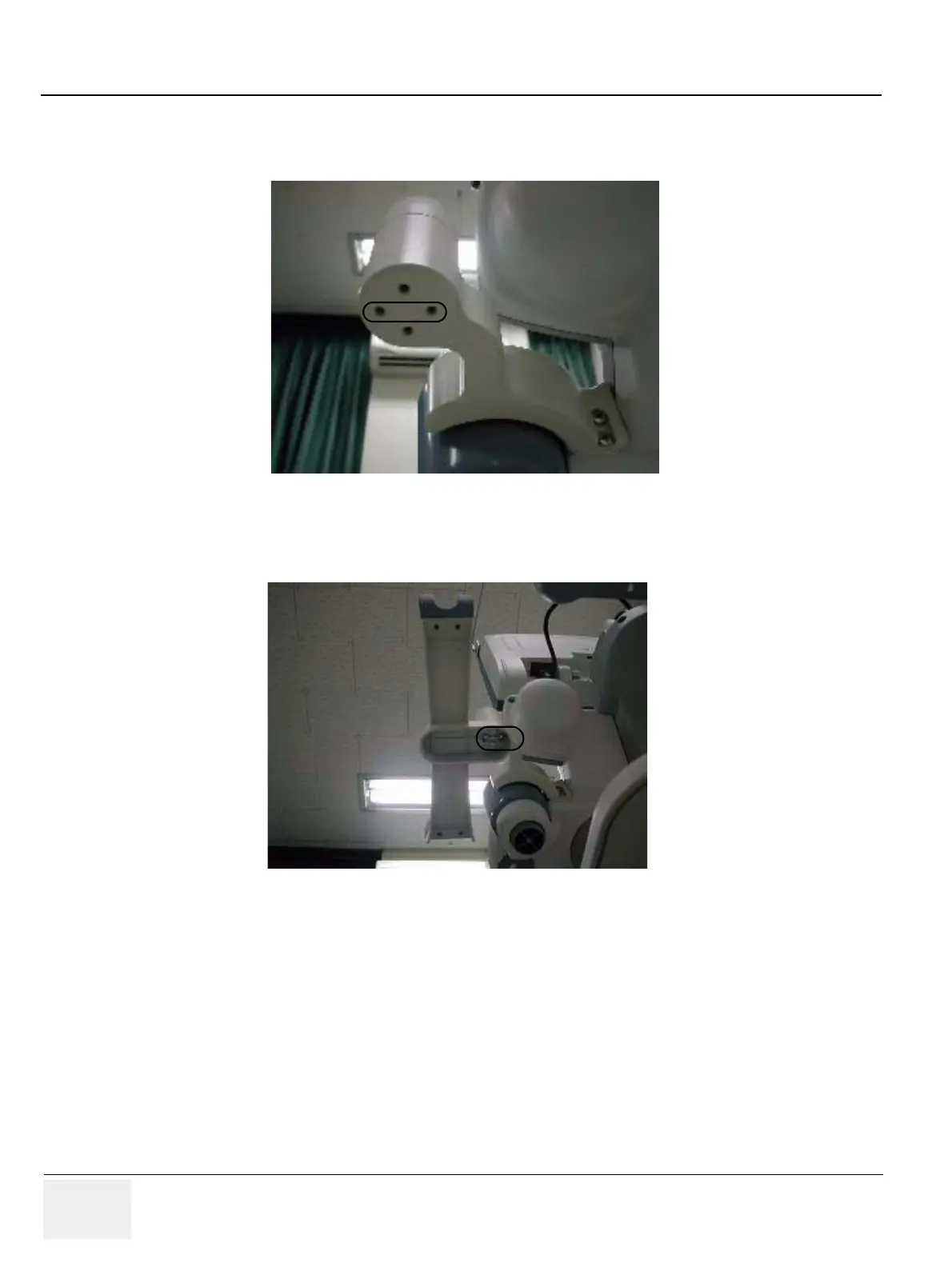

Figure 8-230 Endo Probe Holder Installation

Figure 8-231 Endo Probe Holder
