GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-61

8-2-23 Dummy Cover L / R

8-2-23-1 Tools

• Common Phillips screwdrivers

8-2-23-2 Preparations

• Shut down the system and switch off the main breaker.

8-2-23-3 Removal procedure

1.) Remove 2 rubber caps (1-2).

2.) Unscrew 2 screws and remove the dummy cover L.

3.) Same process is applied for dummy cover R.

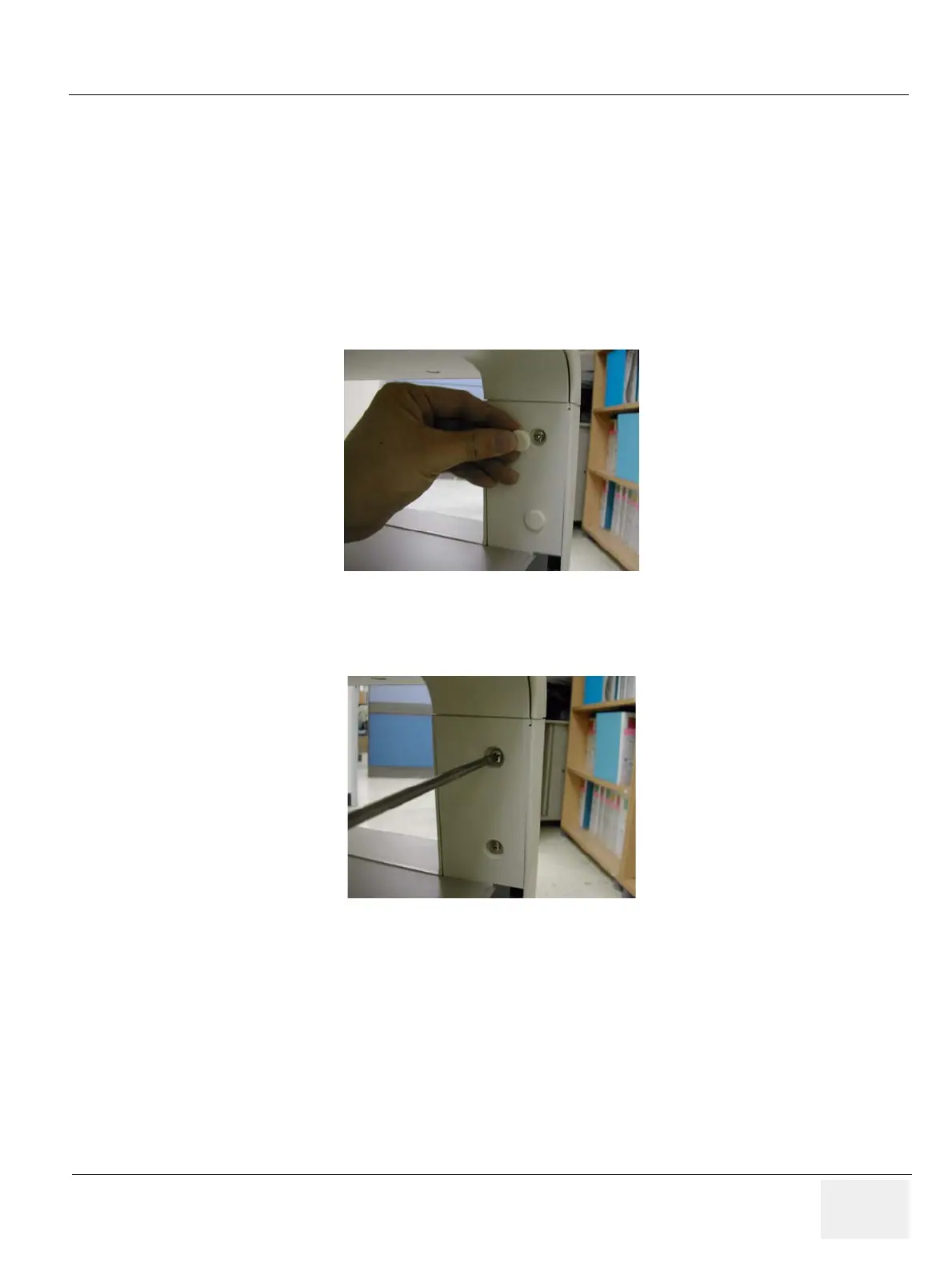

Figure 8-100 rubber cap of dummy cover

Figure 8-101 screws of dummy cover
