LOGIQ™ P6/P6 PRO SERVICE MANUAL
Page 4-44 Section 4-9 - Board Function Checks
4-9-4 CWD64 Assy Function Validation Procedure (cont’d)
14.)After All diagnostic function check of CWD64 should be Passed.Refer to the Table 7-5, “FRU Test,
CWD64 Diagnostics Menu,” on page 22.
15.)Reboot up the system.
16.)Insert Probe in Probe port (Sector or Pencil Probe).
17.)After system boot up, enter the CWD mode.
18.)check the display Image.
Refer to the 10-5-2-1 "System Checks" on page 10-8 and 4-3-5 "System CFM and PWD Checks" on
page 4-8.

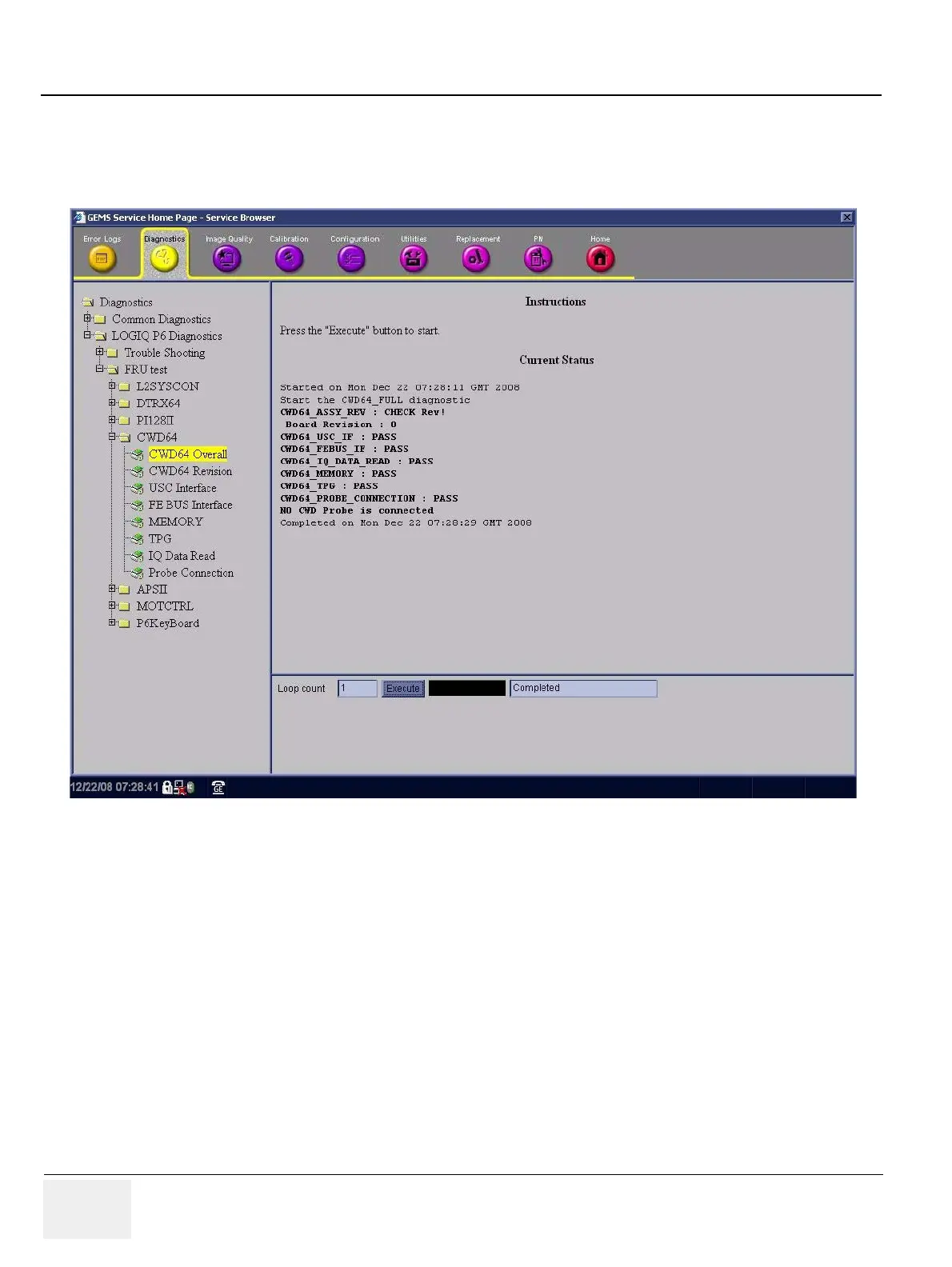

Figure 4-43 CWD64 Diagnostic Test
