GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-13

8-2-4-3 Removal procedure (cont’d)

3.) Disconnect power cable and DVI cable.

4.) Unscrew 1 screw (2329677, TAP M4X16) to remove the Fold cover.

5.) Unscrew 2 screws (2159634, BH M4x10 WHT) to remove the Cable clamp.

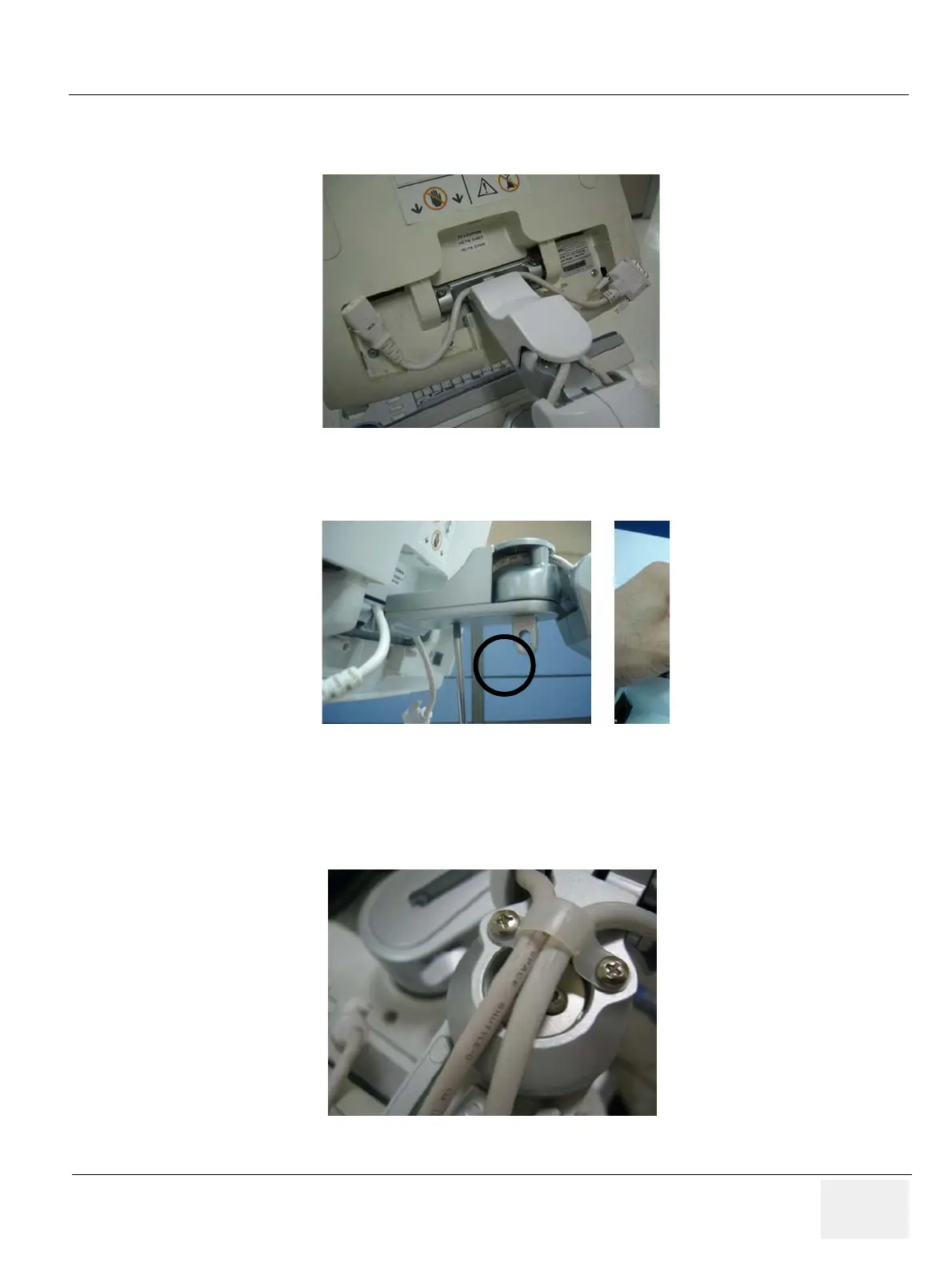

Figure 8-19 Disconnecting power cable and DVI cable

Figure 8-20 Removing the Fold cover

Figure 8-21 Removing the Cable clamp
