GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-16 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY

8-2-4-3 Removal procedure (cont’d)

12.)Unscrew 2 screws (2159626, PH M4X20) to remove the Arm stopper.

13.) Pull out power cable & DVI cable. Make sure flexible arm not to rotate.

14.) Unscrew 4 screws (2159625, PH M4x8 W/SP) to remove the Lower arm cable bracket and pull out

power cable & DVI cable.

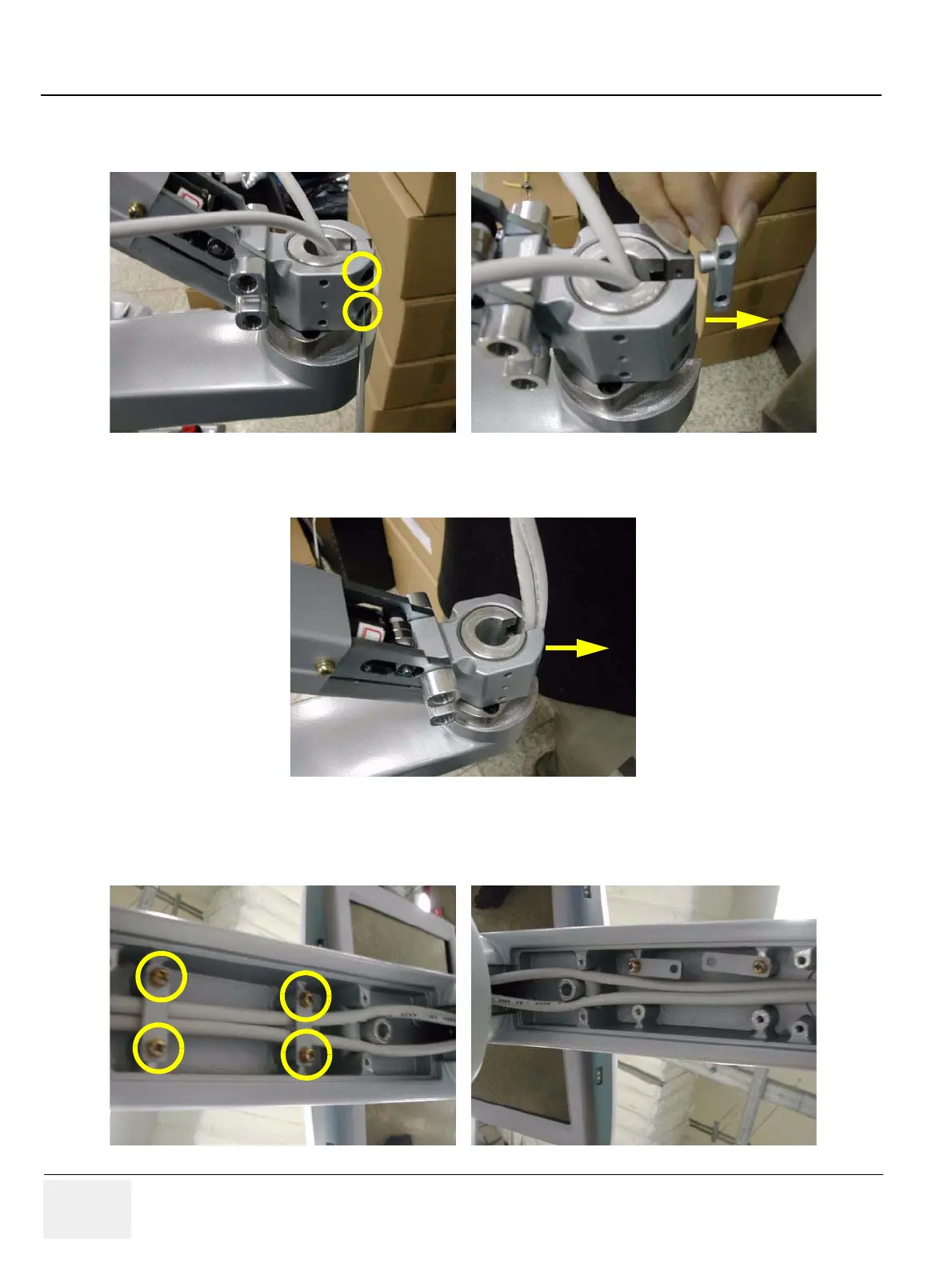

Figure 8-28 Removing the Arm stopper

Figure 8-29 Pulling out power cable & DVI cable

Figure 8-30 Unscrewing 4 screws
