GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-35

8-2-5-3 Removal procedure (cont’d)

5.) ARM LOCK COVER

Unscrew 1 screw (2329677, TAP M4x16) to remove the Arm lock cover.

6.) ARM LOCK KNOB

1.) Unscrew 1 screw (2329677, TAP M4x16) to remove the Arm lock cover.

2.) Unscrew 1 screw (2159625, PH M4X8 W/SP) to remove the Arm lock Knob.

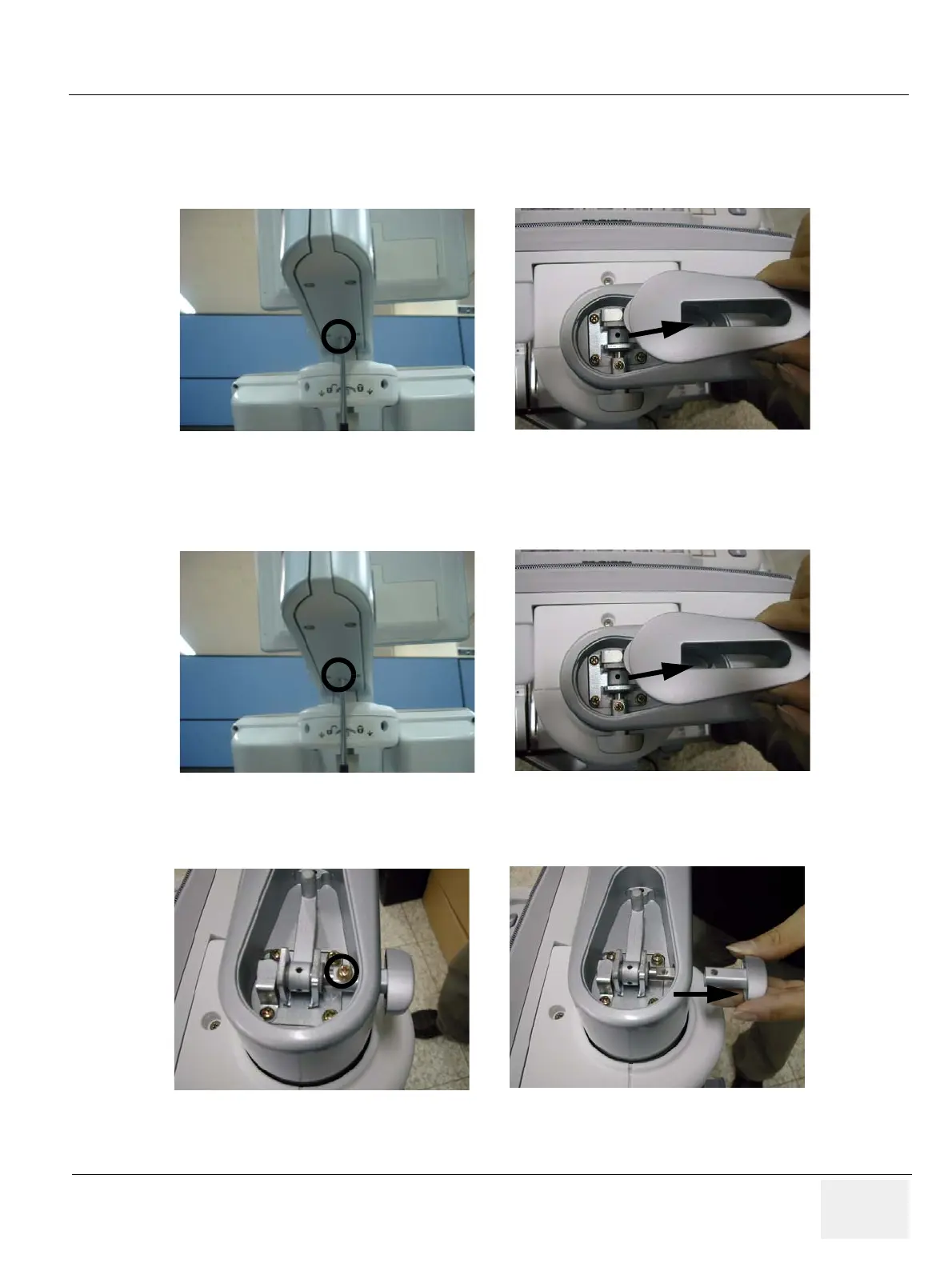

Figure 8-66 Removing the Arm lock cover

Figure 8-67 Removing the Arm lock cover

Figure 8-68 Removing the Arm lock Knob
