GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-131
8-4-4-4 Functional Checks for Service Platform (Diagnostic Program) (cont’d)
4.) Select GE Service at the “Select User Level” field.
5.) Enter the password for the Service Platform.
6.) Click on Okay.
7.) Verify that the following screen (Service Platform) is displayed on the monitor.
8.) Click on x located at the upper right corner of the service platform screen to close the Service
Platform and return to the scan panel.

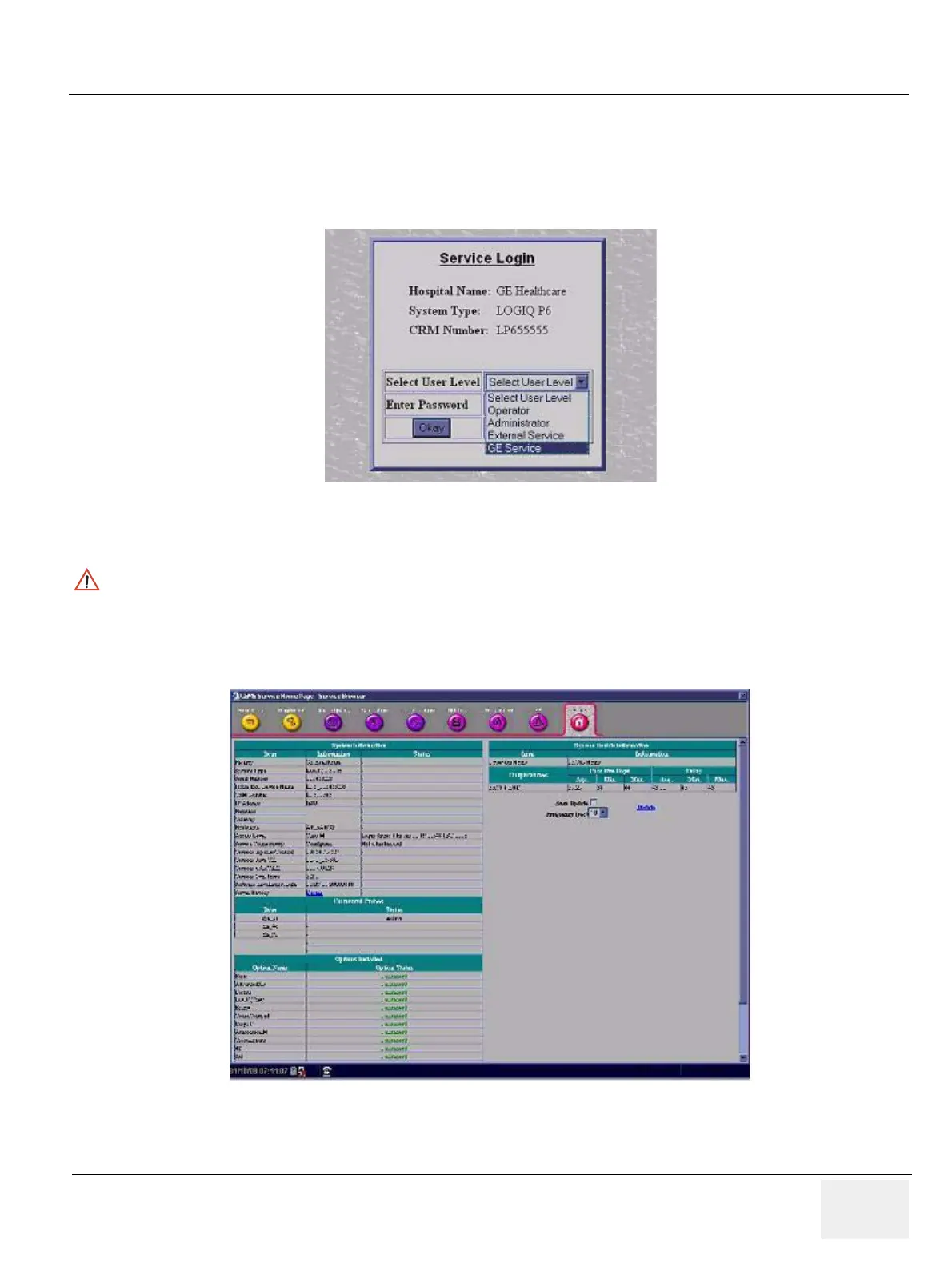

Figure 8-195 Select User Level
NOTICE
When the service platform is NOT displayed, check if CAPS lock is selected. The CAPS should not be
selected.
Figure 8-196 Service Platform screen
