GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-166 Section 8-7 - Mechanical Option Installation instruction

8-7-8 Color Printer Fixture Middle installation - UP23MD Printer (cont’d)

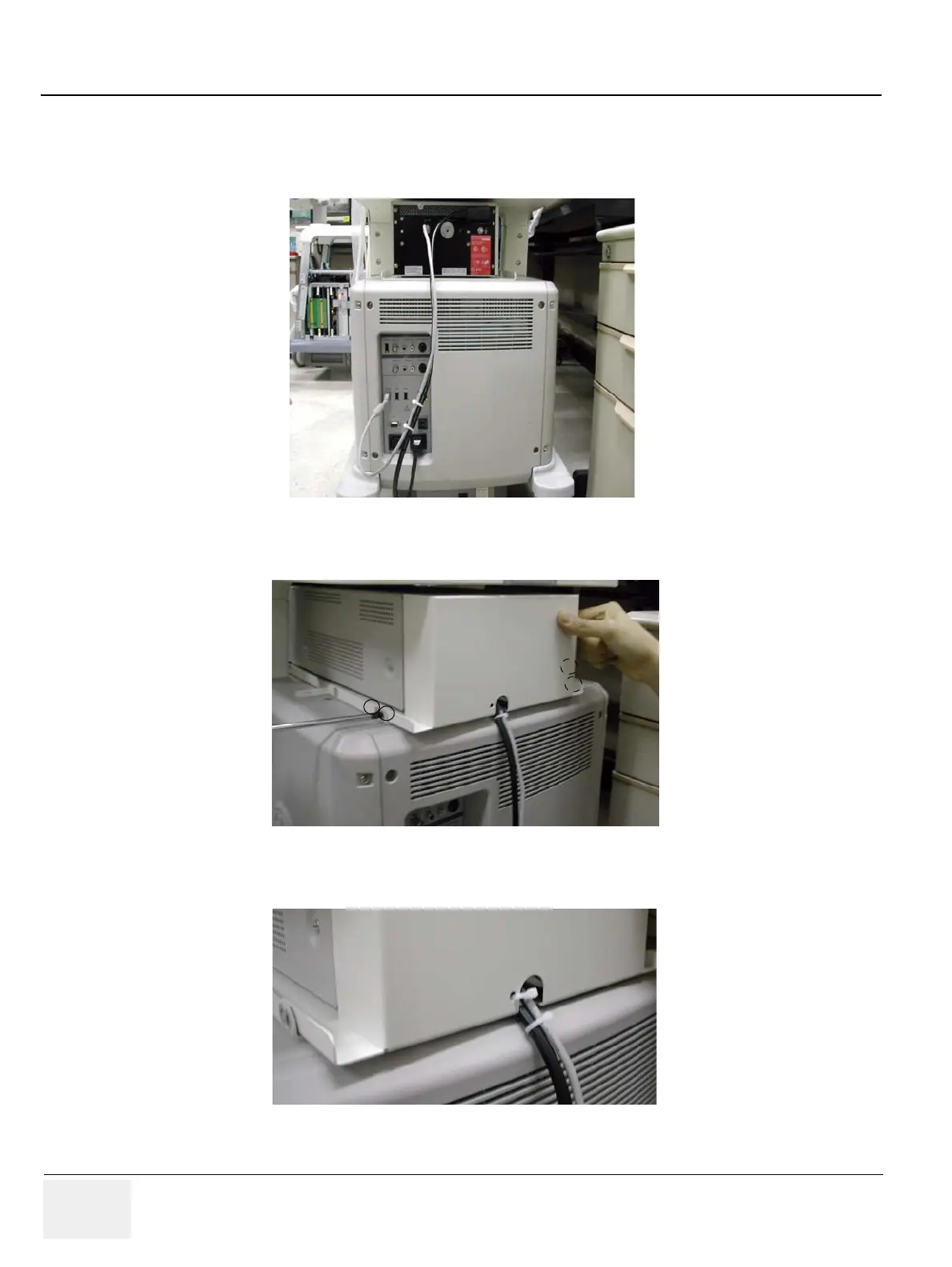

4.) Connect the USB cable and Power cable from the color printer to the system as shown in the figure

below.

5.) Install Color printer hide bracket and screw 4 screws(2159633, BH M4x8 WHT) to fix it.

6.) Tie the cables using the tie wrap as illustrated in the figure below.

Figure 8-255 Color Printer Fixture Middle installation

Figure 8-256 Color Printer Fixture Middle installation

Figure 8-257 Color Printer Fixture Middle installation
