DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-168 Section 8-7 - Mechanical Option Installation instruction

8-7-9 Color Printer Fixture Middle installation - UP-D25MD Printer (cont’d)

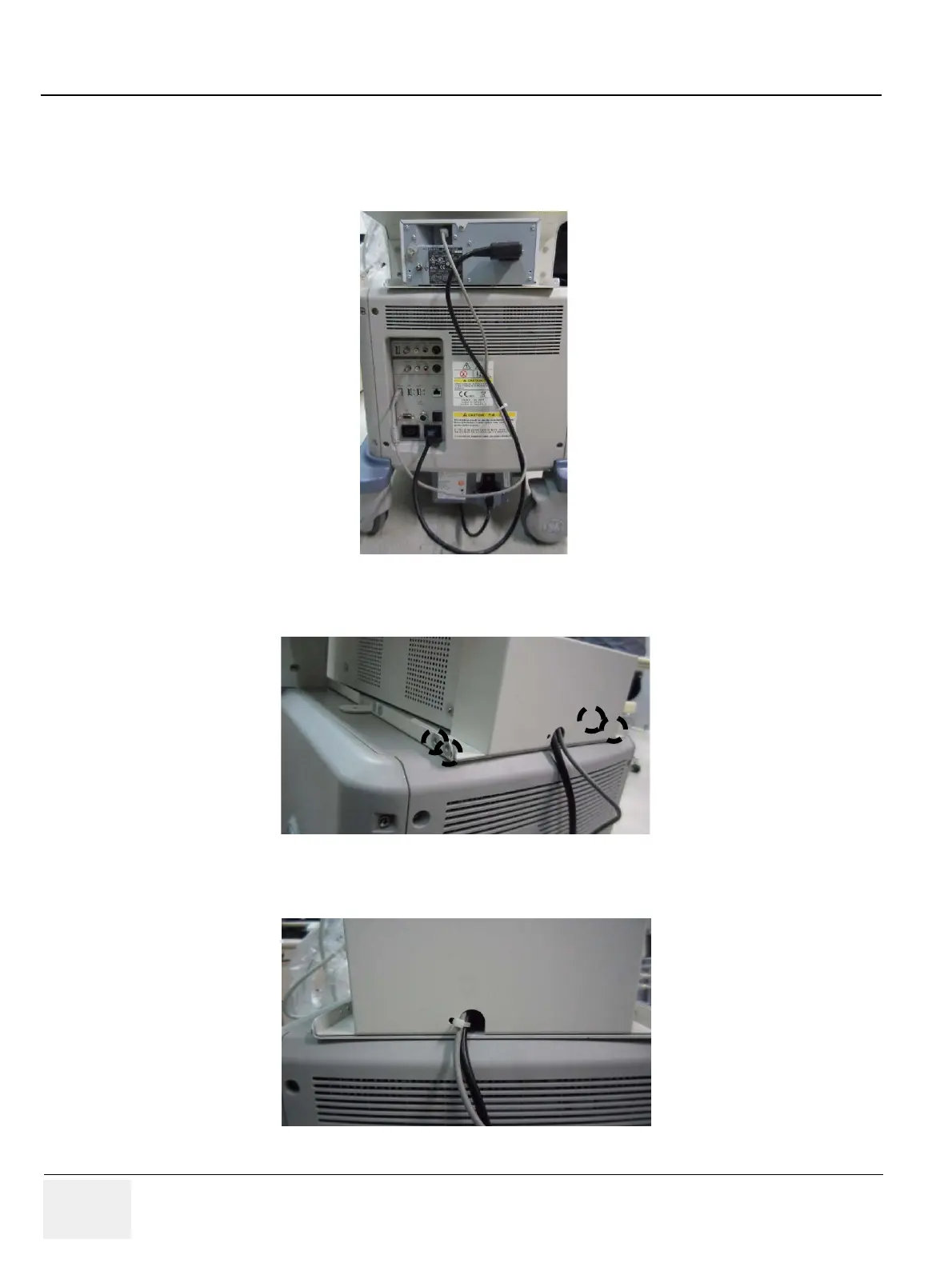

4.) Connect the USB cable and Power cable from the color printer to the system as shown in the figure

below.

5.) Install Mid Color Cable Bracket and screw 4 screws(2159633, BH M4X8) to fix it.

6.) Tie the cables using the tie wrap as illustrated in the figure below.

Figure 8-260 Color Printer Fixture Middle installation

Figure 8-261 Color Printer Fixture Middle installation

Figure 8-262 Color Printer Fixture Middle installation
