GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-176 Section 8-7 - Mechanical Option Installation instruction

8-7-12 Printer VCR DVD fixture Top installation - CP900 Printer (cont’d)

7.) Install hide bracket by screwing 3 screws(2159633, BH M4x8 WHT).

8.) Tie the cable properly using the tie wrap.

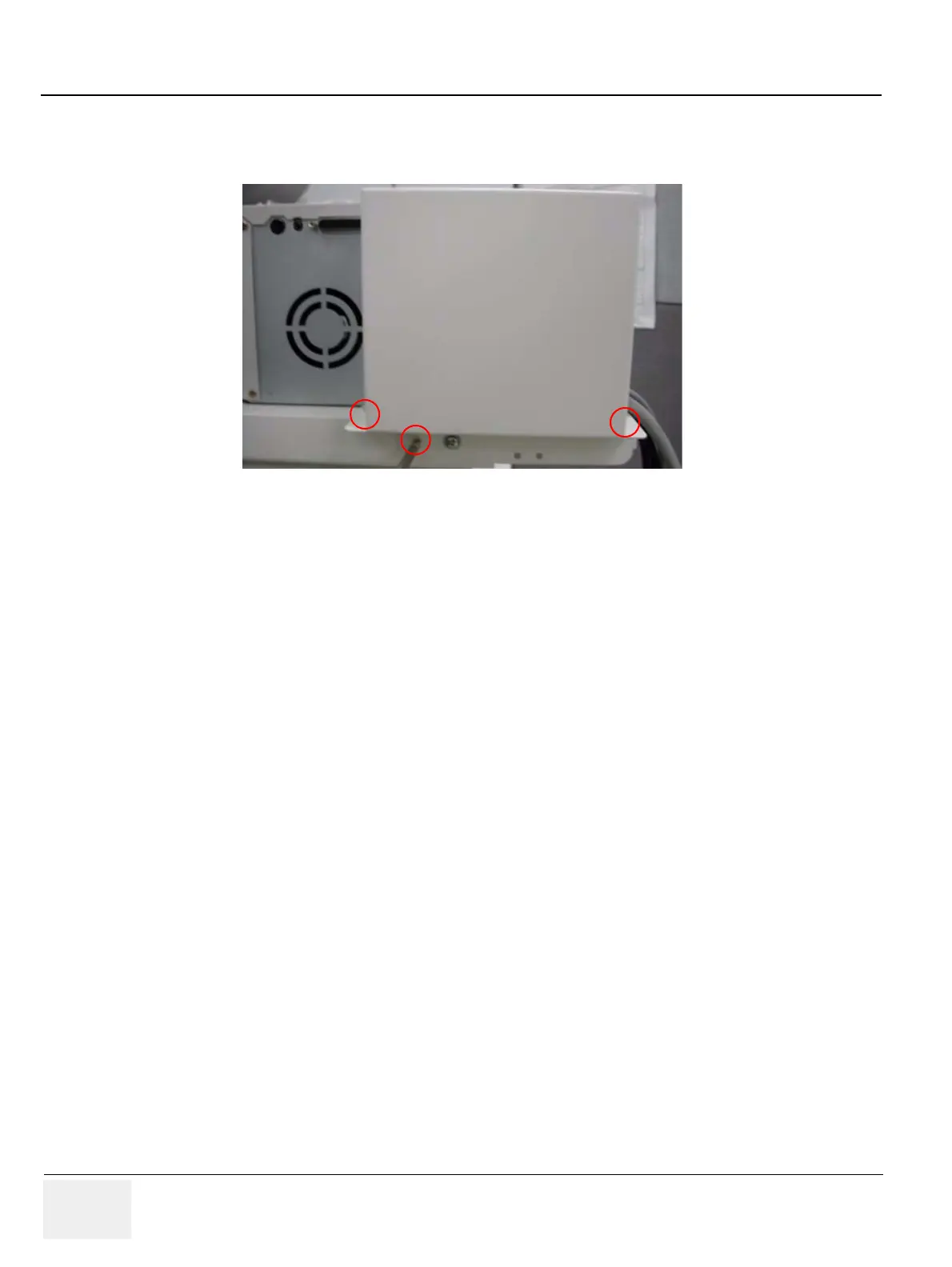

Figure 8-281 Printer VCR DVD Fixture Top installation
