GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-181

8-7-13-2 Bracket Installation (cont’d)

7.) Connect the cables (Power Cable, USB cable, S-VHS Cable, and Sound cables) from the VCR to

the system.

8.) Connect the cables to the system on the rear panel.

9.) Install VCR hide bracket by screwing 3 screws(2159633, BH M4x8 WHT).

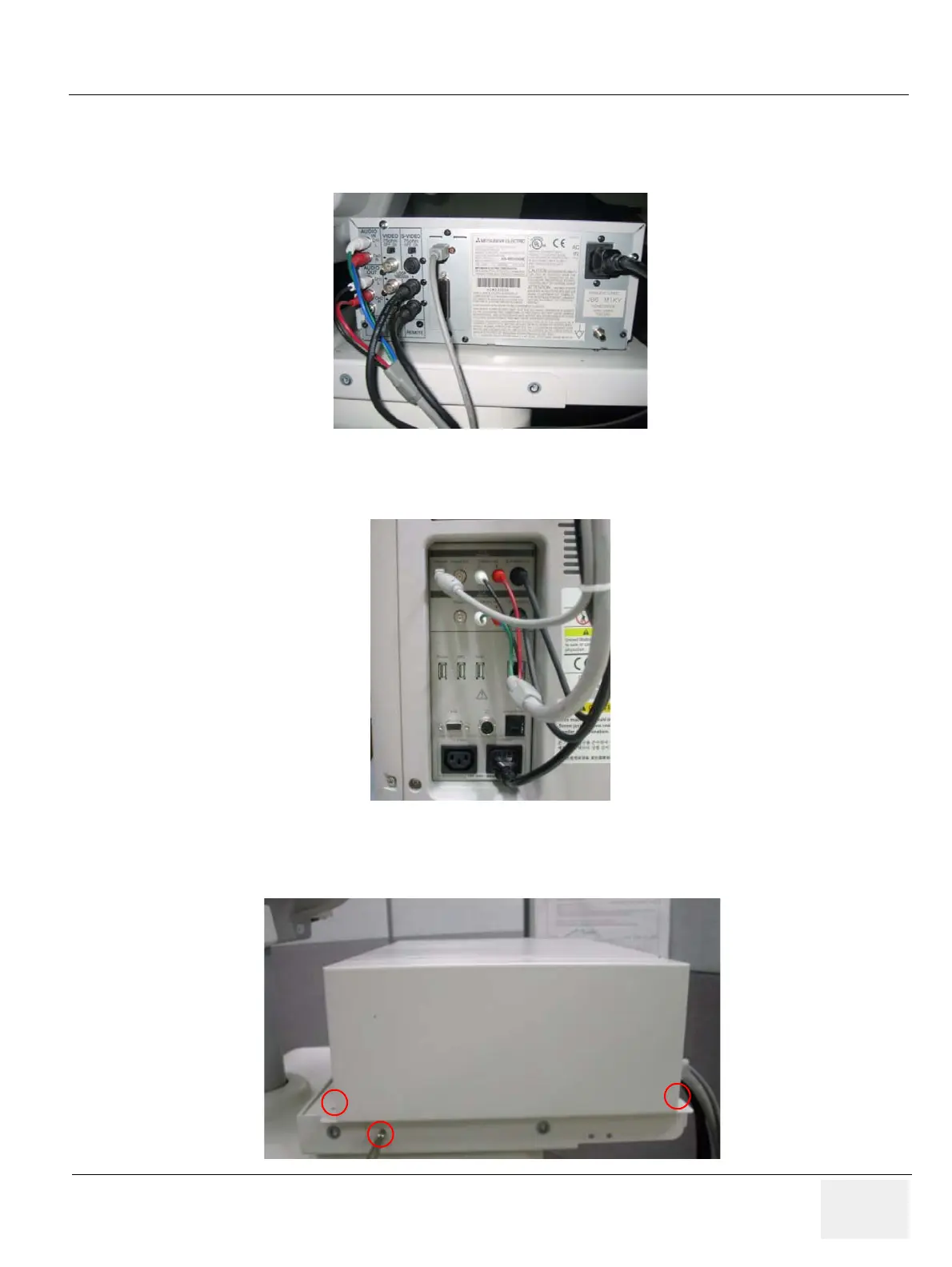

Figure 8-292 Printer VCR DVD Fixture Top installation

Figure

8-293 Printer VCR DVD Fixture Top installation

Figure 8-294 Printer VCR DVD Fixture Top installation
