Peripherals Installation
LOGIQ V3/V5/V5 Expert – Basic Service Manual 3-37
5726264-100 English Rev.8
3-7-3-6 Footswitch Installation
3-7-3-6-1 Tools
No special tools needed.
3-7-3-6-2 Manpower
One person 2 min.
3-7-3-6-3 Preparations
1. Unpack the Footswitch.
2. Ensure no physical damage.
3-7-3-6-4 Installation Procedure
1. Connect the Footswitch to the USB port on the LOGIQ V3/
V5/V5 Expert system.

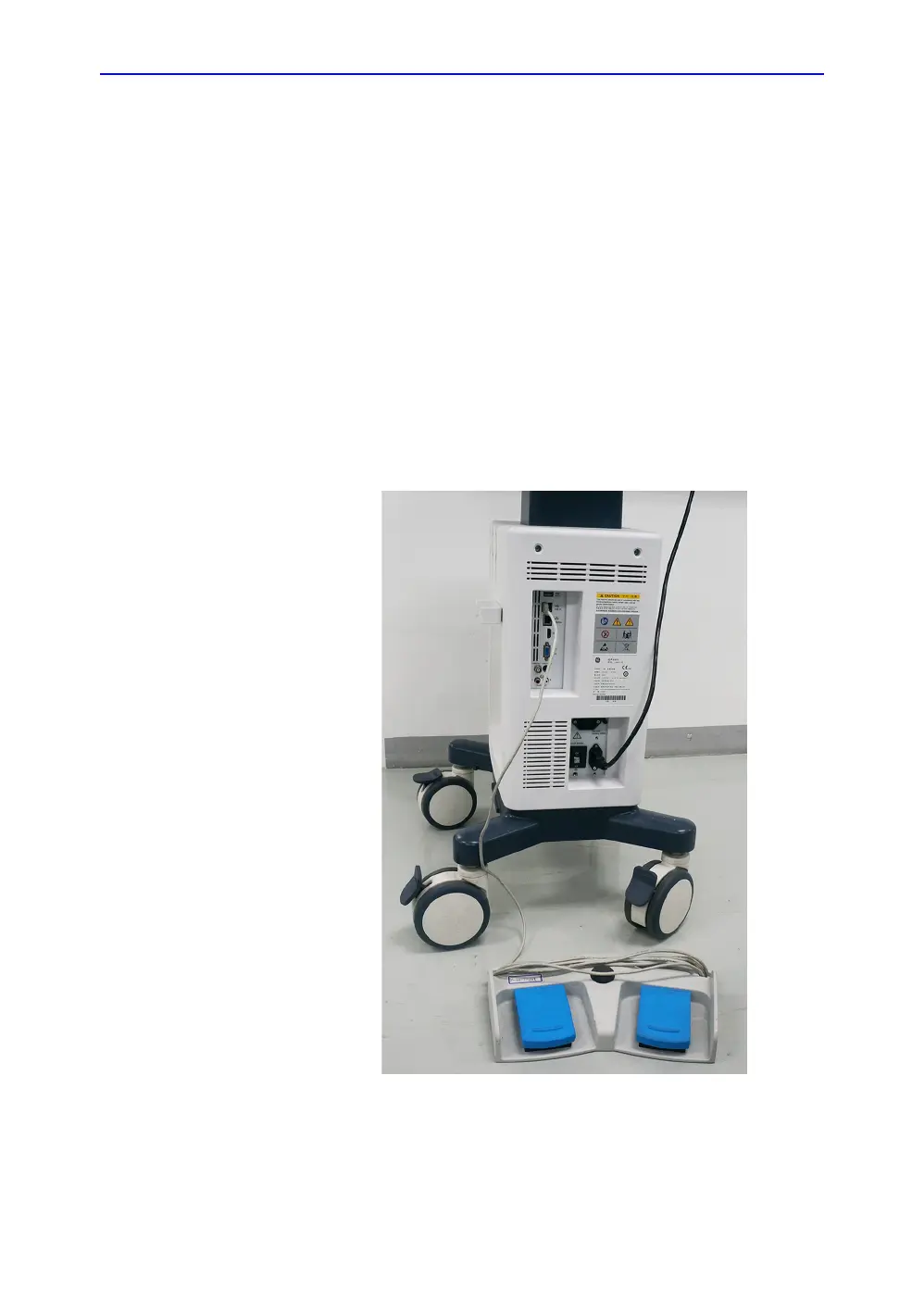

Figure 3-25. Connect Footswitch to the system
