Equipment Overview: Equipment Description

2-12 MAC 5000 System — 2000657-057, Revision B

Leadwire Adapters

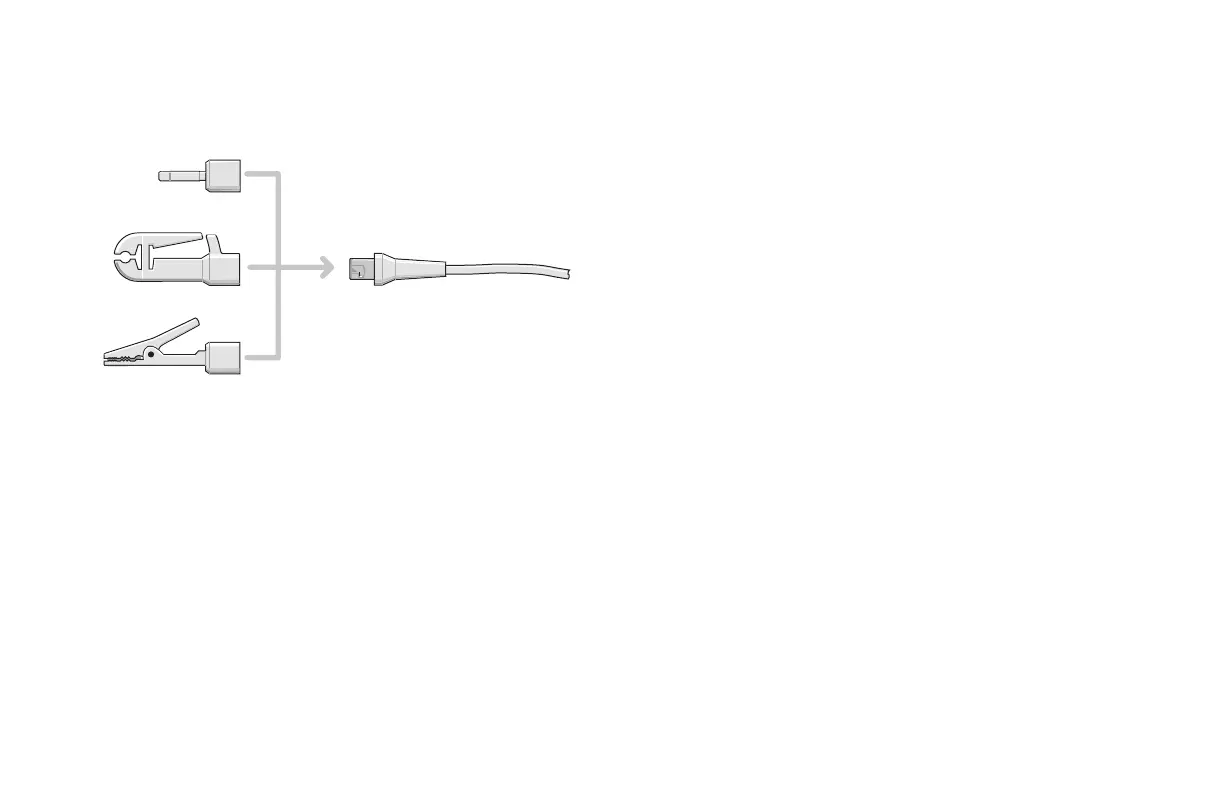

The MULTI-LINK leadwires require an adapter to connect

to an electrode.

4 mm pin

Grabber

MACTRODE clip

Leadwire end
