Preparing the Patient: Apply the Electrodes
3-6 MAC 5000 System — 2000657-057, Revision B
á To acquire a NEHB ECG, use the Standard 12 Lead electrode placement and items A and B shown below.

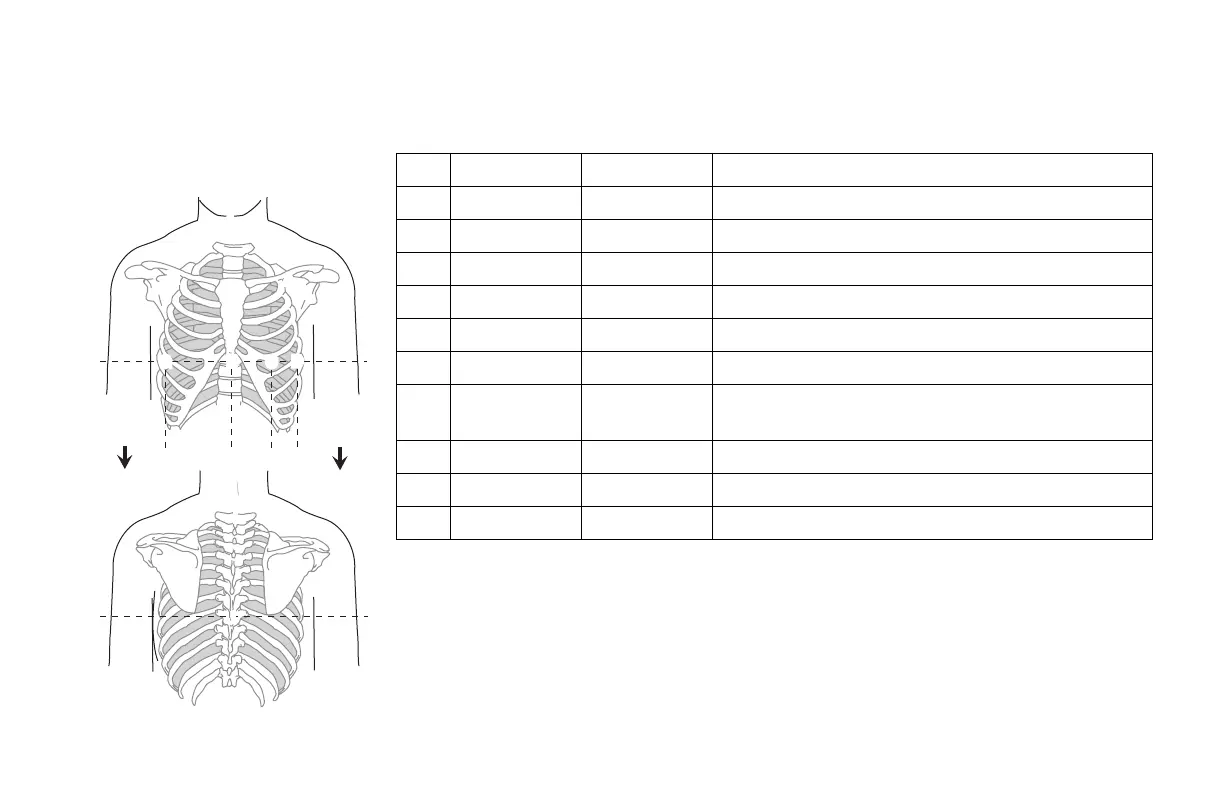

Frank X,Y,Z Placement
AHA Label IEC Label Electrode Placement
A LA black L yellow Just below the clavicle of the right and left arms.
B E orange E light blue Mid-sternum on the same horizontal level as C and D.
C V4 blue C4 brown Mid-clavicular line in the fifth intercostal space.
D V6 purple C6 purple Mid-axillary line on the same horizontal level as C.
E LL red F green Right and left thighs.
F RL green N black Right and left thighs.
G I orange I light blue Right mid-axillary line on the same horizontal level as C and
D.
H RA white R red Just below the clavicle of the right and left arms.
I H orange H light blue Back of neck, avoid the carotid artery and jugular vein.
J M orange M light blue Center of spine on the same horizontal level as C and D.
I
J
A
B
C
D
E
F
G
H
