Prep
aring the
Patient:
Apply
the Elect
rode
s
3-10
MAC 5000 System — 2000657-057, Revision B
In add
ition to th
e stan
dard el
ectrod
es, a
pply on
e elec
trode on
the s
ternu
m (A1),
one in loca
tion
V5R/C
5R (A2)
, and o
ne on
the neck (A3).

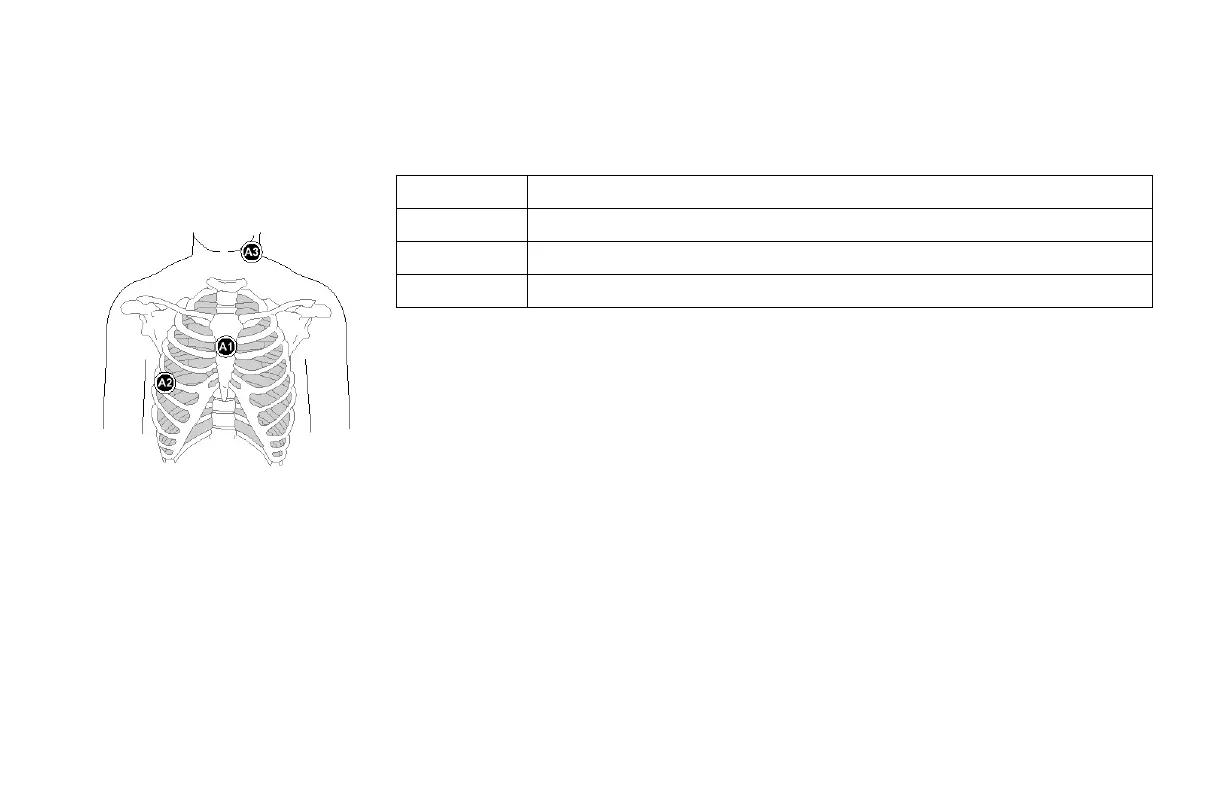

CM5, CC5, CH Lea
d Placement
Electrode
Electrode Placement
A1
Mid
-sternum at the second inte
rcostal space.
A2
In the fifth inte
rcostal space in the an
terior axillary l
ine (V5R/C5R).
A3
On either
side of the neck or anywher
e above the shoulder
s.
255A
65
67
Table of Contents
CE Marking Information
3
Compliance
3
Exceptions
3
Table of Contents
5
Introduction
17
Manual Information
19
Purpose
19
Intended Audience
19
Revision History
19
Conventions
19
User Instructions
20
Safety Information
21
Definitions
21
Equipment
21
Legal Notice
23
Responsibility of the Manufacturer
23
General Information
24
Equipment Symbols
27
Service Information
28
Service Requirements
28
Equipment Identification
28
Equipment Overview
29
Equipment Description
31
Front View
31
Internal View
32
Back View
33
Connectors
34
Keyboard
36
Keyboard-Exercise Test Keys (Option)
37
Acquisition Module
38
Getting Started
41
Prepare the Equipment for Use
41
Software Description
47
Selecting Menu Functions
51
Entering Data
54
Preparing the Patient
57
Prepare the Patient's Skin
59
Apply the Electrodes
60
Resting Electrodes
60
Exercise Electrodes (with Exercise-Option)
65
Entering Patient Information
67
Enter Patient Information
69
Preparation
69
Enter the Information
70
Using a Patient Card Reader (Option)
71
Connect the Card Reader
71
Slide Card
71
Receive Orders from a MUSE CV System (Option)
72
Preparation
72
Load the Orders
73
Select the Orders to Receive
73
Select an Order to Complete
74
Complete the Order
74
Enter Orders Manually (Option)
75
Preparation
75
Create an Order
75
Select an Order to Complete
76
Complete the Order
76
Recording an ECG
77
Record a 15 Lead, Resting, Pediatric, or Vector Loops ECG
79
Preparation
79
Record the ECG
79
Record a Signal Averaged ECG (Options)
80
Preparation
80
Record the ECG
80
Record a Master's Step Test (Option)
81
Preparation
81
Enter Patient Data
81
Confirm Test Steps
81
Record the ECG
81
Run the Test
82
Using ACI-TIPI (Option)
83
Preparation
83
Enter the Information
83
Exercise Stress Test (Option)
85
Start an Exercise Stress Test
87
Patient Data
87
Exercise Test Keys
88
Test Phases
89
Pretest Phase
89
Exercise Phase
91
Recovery Phase
93
Test End Phase
94
Edit Protocols Options
97
Overview
99
Operating Steps
100
Variable Protocols
101
Pre-Test Phase Screen
102
Pre-Test Protocol Information
103
Advance to Exercise
104
Advance to Recovery
105
Advance to Test End
106
Save Current Protocol
107
Printing an ECG Report
109
Print Stored ECG Reports
111
Preparation
111
Select the Ecgs
111
Print the Ecgs
111
Transmitting an ECG
113
Transmit Stored Ecgs by Modem (Option)
115
Preparation
115
Select the Receiving Device
116
Select the Ecgs
116
Transmit the Ecgs
116
Transmit Stored Ecgs Locally
117
Preparation
117
Select the Method of Transmission
118
Select the Ecgs
118
Transmit the Ecgs
118
Transmit Stored Ecgs by Wireless (Option)
119
Preparation
119
Select the Receiving Device
120
Select the Ecgs
120
Transmit the Ecgs
120
Receiving an ECG
121
Receive Ecgs by Modem (Option)
123
Preparation
123
Receive the Ecgs
124
Receive Ecgs Locally
125
Preparation
125
Receive the Ecgs
126
Retrieve Confirmed Ecgs from a MUSE CV System Via Modem (Option)
127
Preparation
127
Select a MUSE CV System
128
Select an ECG
129
Display or Print the ECG
129
Retrieve Confirmed Ecgs from a MUSE CV System Via Wireless (Option)
130
Preparation
130
Select a MUSE CV System
131
Select an ECG
131
Display or Print the ECG
132
Editing an ECG
133
Edit Demographic and Interpretive Data
135
Preparation
135
Select the Ecgs
135
Edit Demographic Data
136
Edit Interpretive Data
136
Store the Edited ECG
139
Deleting an ECG
141
Delete Stored Ecgs
143
Preparation
143
Select the Ecgs
143
Delete the Ecgs
144
Delete Stored ECG Orders (Option)
145
Preparation
145
Select the Orders
145
Delete the Orders
146
Completing Other Tasks
147
Prepare a Disk for Use
149
Lock and Unlock
149
Format
149
Eject a Disk from the Drive Slot
150
Display Stored Ecgs
151
Preparation
151
Select the Ecgs
151
Display the Ecgs
152
Defining the System Setup
153
To Use the System Setup Function
155
Select the System Setup Function
155
Define the System Parameters
156
Save Your Changes
156
Program the System to Automatically Do a Task
157
To Power up the System into a Specific Resting Function
157
To Preview ECG Data before Analysis
157
To Print a Resting ECG Report
158
To Print a Signal Averaged ECG Report
158
To Store an ECG
159
To Transmit an ECG
159
Enable or Disable the ACI-TIPI Option
160
Define the Basic System Setup
161
Miscellaneous Setup
161
Patient Questions
162
Screen Colors
164
Transmission
165
Date and Time
166
Language
166
Power up Options
167
Order Manager Interface
167
PS/2 Port
168
Define the ECG Setup
169
ECG Acquisition/Analysis
169
Patient Questions
171
Writer Setup
171
Resting, Pediatric, 15 Lead, and Vector Loops ECG Reports
172
Analog Outputs
175
Define the Exercise Test Setup (Option)
176
Miscellaneous Setup
176
Patient Data/Questions
176
Writer Setup
177
12 And 15 Lead Exercise Reports
178
Final Report
180
Screen
181
Inputs / Outputs
181
Define the Signal Averaged ECG Setup (Option)
183
Master's Step Setup (Option)
184
Miscellaneous Setup
185
Print Setup
185
Save Setup
185
Restore Setup
185
Appendix A - Maintenance
187
General
189
Inspecting and Cleaning
190
Precautions
190
Visual Inspection
190
Cleaning
191
Changing the Paper Tray Size
192
To Change to A4 Paper Size
192
To Change to Standard Paper Size
192
Replacing Paper
193
Storing Paper
194
Thermal Paper
194
Archivist Paper
195
Maintaining the Battery
196
Battery Gauge Icon
196
Charging the Battery
196
Periodic Maintenance
198
Replacing the Battery
198
Mounting or Dismounting the Trolley
200
Mount the System Onto the Trolley
200
Dismount the System from the Trolley
201
Replacing Acquisition Module Leadwire Adapters
202
Handling a Disk
203
Appendix B - Troubleshooting
205
Introduction
207
First Things to Ask
207
Visual Inspection
207
Equipment Problems
208
Reducing ECG Data Noise
208
There Is no ACI-TIPI Report
208
No BP Readings from External Device
209
Treadmill / Ergometer Does Not Move
209
System Errors
210
Appendix C - Editing Acronyms
211
Resting ECG Acronyms
213
Appendix D - Technical Specifications
219
Computerized Electrocardiograph
221
Electrical
223
Physical
224
Safety
225
Environmental
227
Battery
228
Writer
229
Vectorcardiography
230
Pediatric Analysis
231
Late Potential Analysis
232
(Hi-Res and Phi-Res Signal Averaged Electrocardiography
232
Appendix E - Report Formats
233
Format Description
235
By 2.5S + 1 Rhythm Lead Format
235
Key to Bottom of Exercise Reports
236
Additional Report Names
237
In-Test Reports
239
Exercise Final Report Names
240
Appendix F - Master's Step Data
241
Master's Step Table
243
ST-T Change
245
Positive
245
Borderline
245
Negative
245
Calculation
245
