Revision E MAC 5500 resting ECG analysis system 5-7
2020299-020
Maintenance: Disassembly Guidelines
Disassembly Guidelines
Preliminary Steps
Prior to disassembly, perform the following:
If possible, process any ECGs remaining in storage.
If possible, print out set-up for future reference.
Disconnect the unit from the AC wall outlet and remove the power cord from
the unit.
Remove the battery.
Remove the chart paper.
Take strict precautions against electrostatic discharge damage.

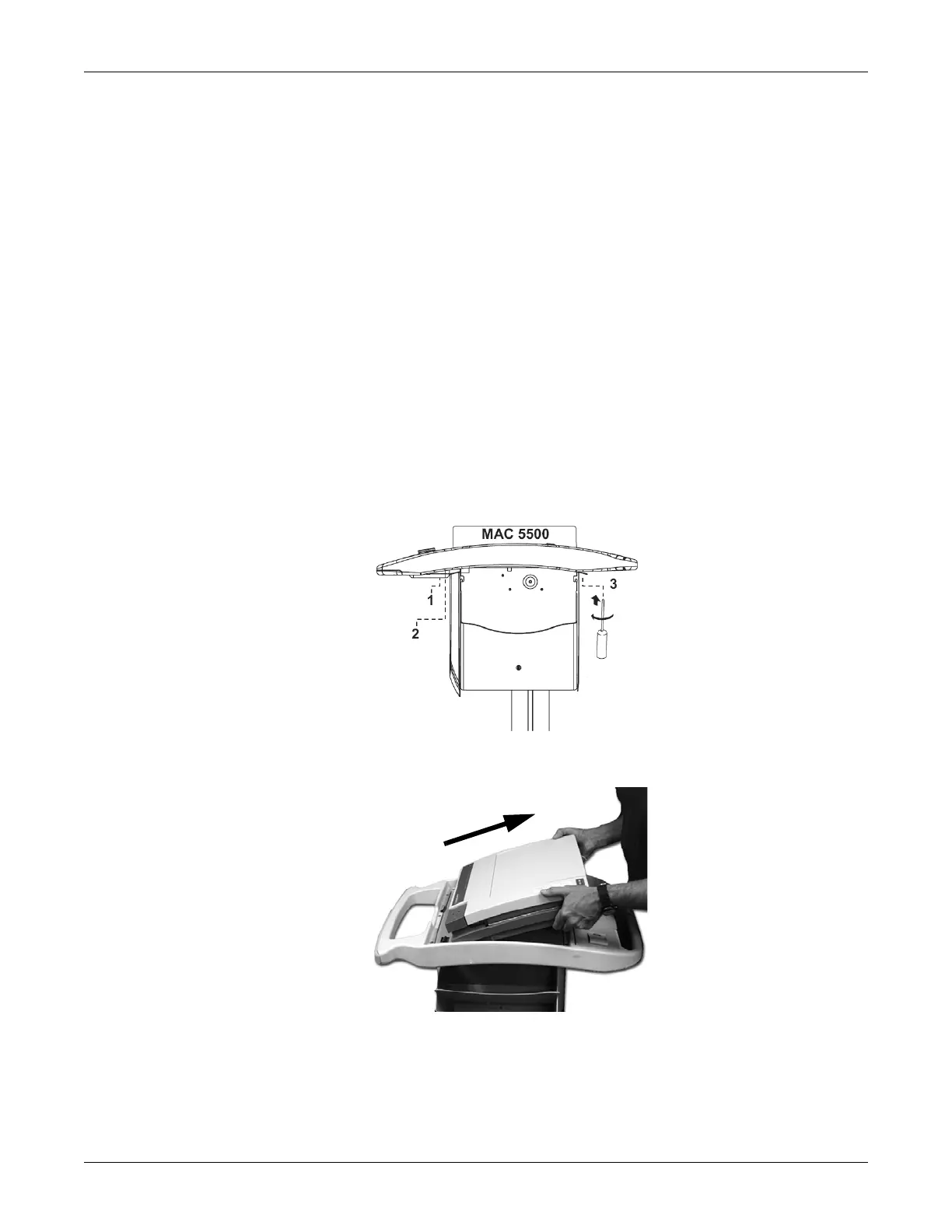

Trolley Disassembly
1. Lock the wheels, remove the rear trolley panel then loosen the three captive
screws located under the trolley.
2. Pull the MAC 5500 up and up toward you.
3. Lift the unit from the trolley.
