5-14 MAC 5500 resting ECG analysis system Revision E
2020299-020
Maintenance: Disassembly Guidelines

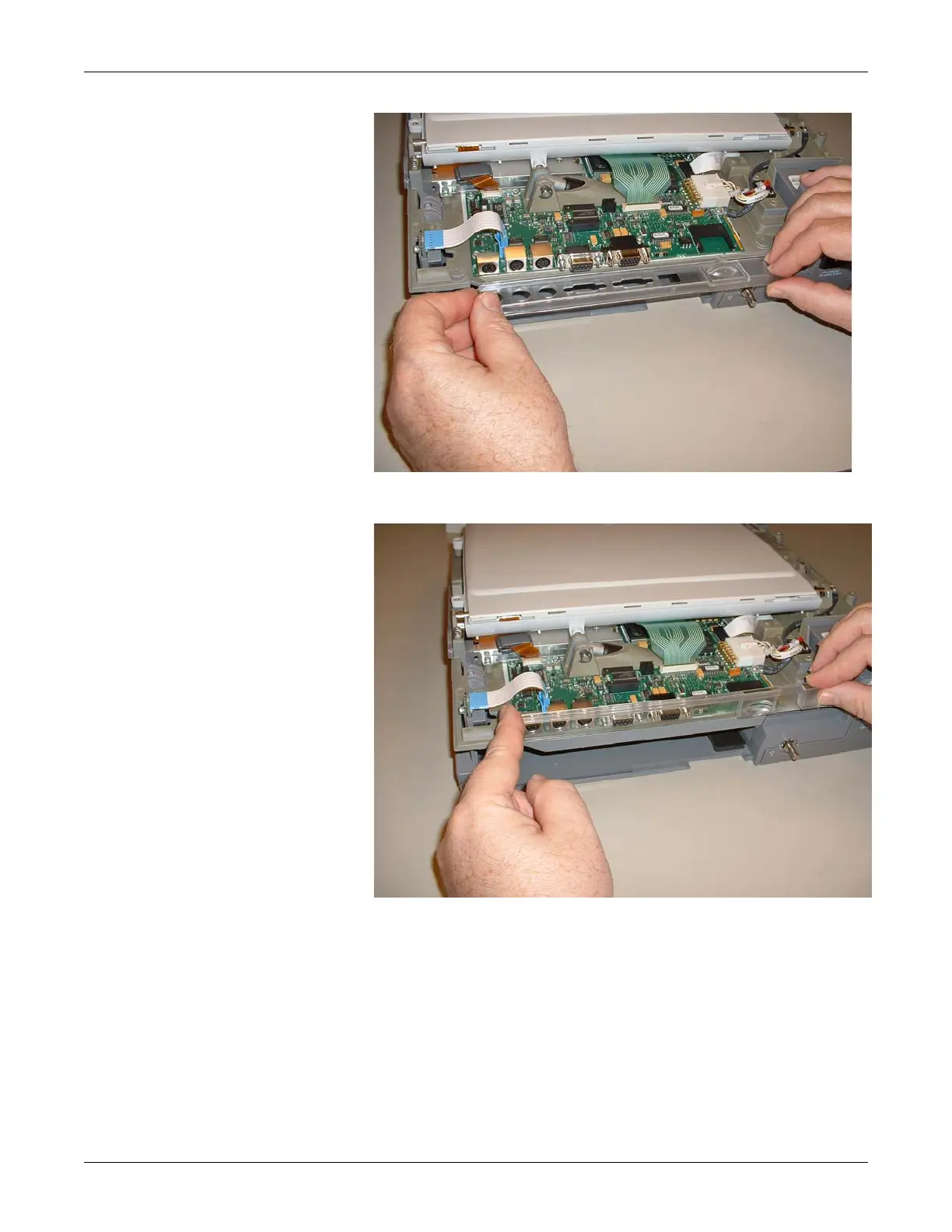

4. Rotate bezel to the upright position as shown below.
5. With the new bezel in place, replace the top cover by
reversing the steps
described previously.
6. Replace the battery and proceed with software, serial number, and
system
setups as described in the following sections.
