Maintenance: Disassembly Guidelines

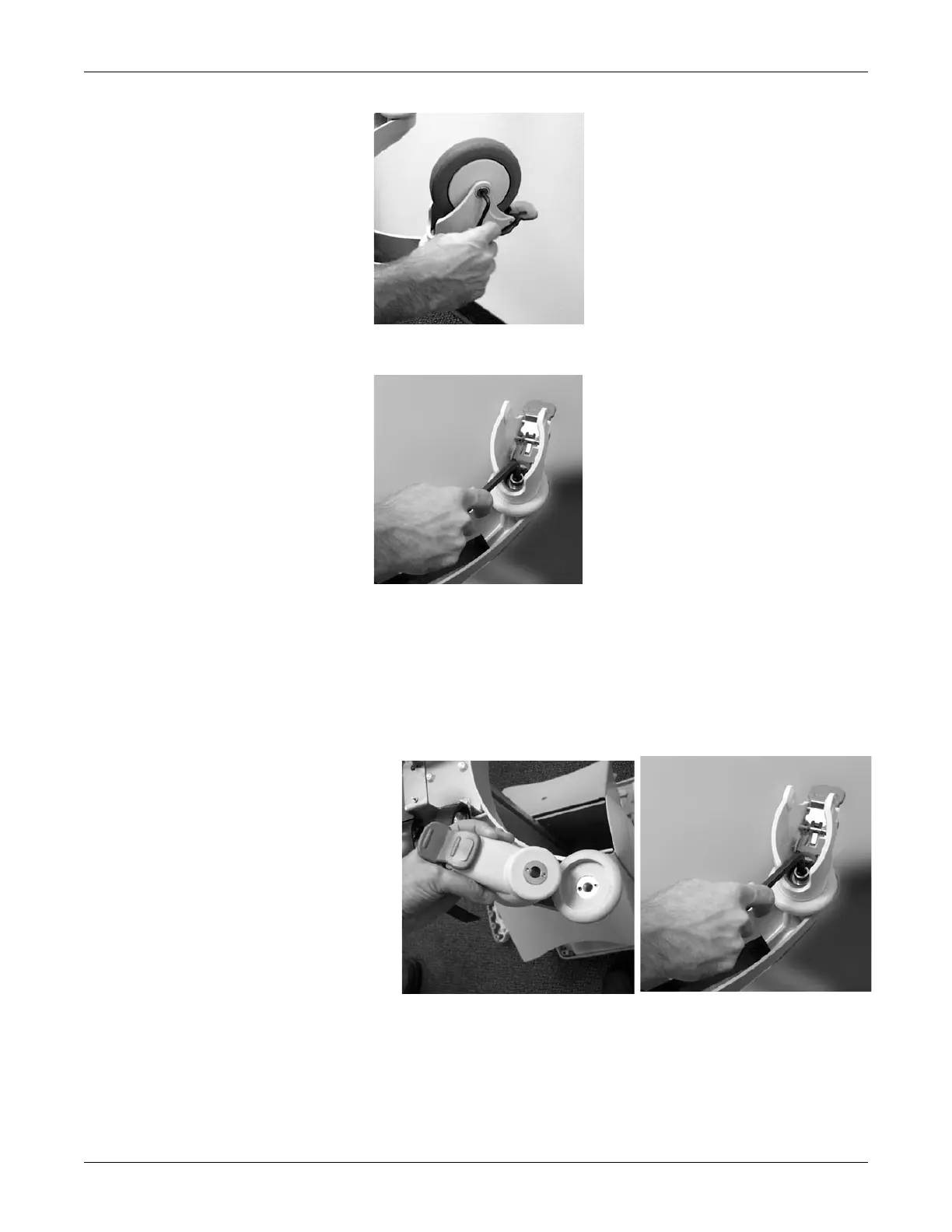

4. Using an Allen wrench, remove the bolt holding the caster to the trolley.
Reassembly
1. Install the replacement caster on the trolley.
NOTE
Ensure that the pins align with the holes on the fixed caster before fastening
to th
e trolley.
2. Install the wheel and attach with the wheel beari
ng shaft and nut.
