Revision E MAC 5500 resting ECG analysis system 3-11
2020299-020
Installation: Preparation for Use

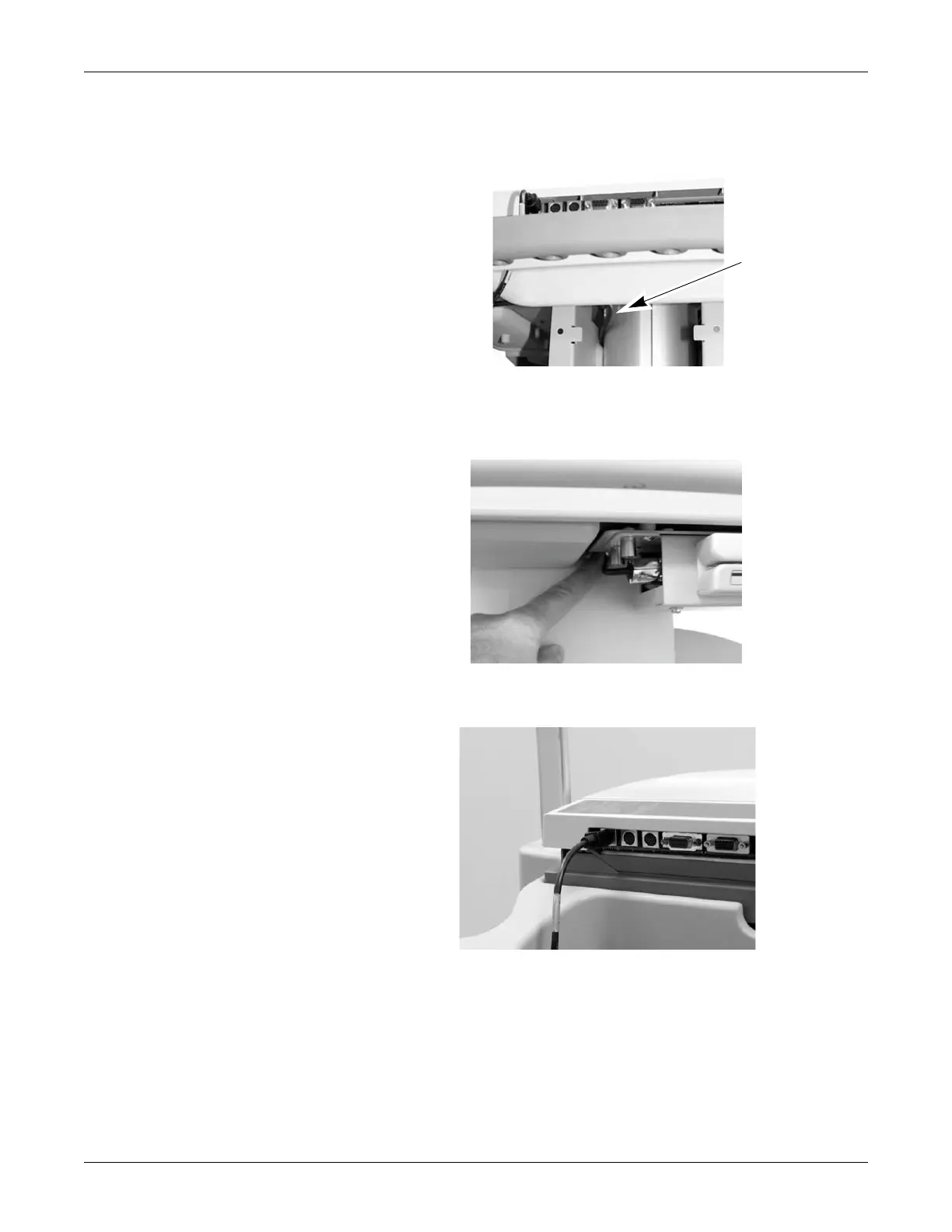

3. Route the cable around the trolley column towards the rear as shown below.
4. At the front, hold the cable to the side so it clears the front panel
as you replace
the panel.
5. Plug the cable connector into port A then replace the back panel.
6.
Refer to the MAC 5500 Operator’s Manual for information on using the
Magnetic Card Reader.
Cable Routing
Rear View
34A
To Next Page
