GE Marquette Responder 3000

Semiautomatic Defibrillation
227 490 02-C Marquette Responder® 3000 33
ANALYZING
Do not touch patient
ECG
Pads
15.07.1999 09:05:00
160 / 40
bpm
semiautom.
200 J
161
ECG
SpO2
etCO2
QRSPulse
Tone
OFF
Next
Menu

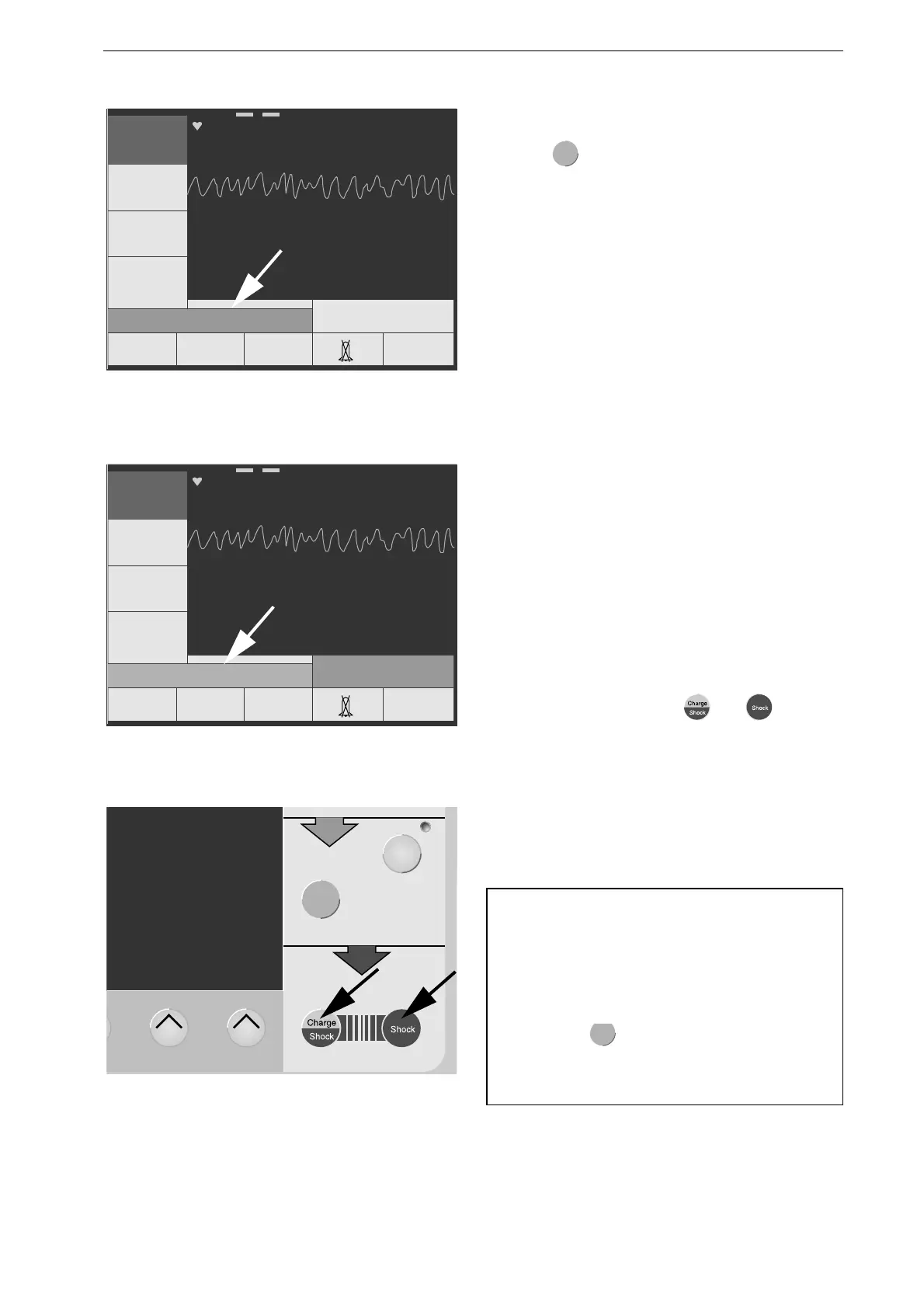

Figure 5-2. Message indicating that the ECG is
being analyzed
Shock Advised
Do not touch patient
ECG
Pads
15.07.1998 09:05:00
160 / 40
bpm
Energy
available
200 J
161
ECG
SpO2
etCO2
QRSPulse
Tone
OFF
Next
Menu
Figure 5-3. "Energy available" message and
indication of charged energy
3
2
Analyse
Sync
Figure 5-4. Buttons to deliver the shock
•
Do not touch the patient any more and warn all
those present.
•
Press
Analyse
to initiate ECG analysis.
You will see the message "ANALYZING Do not
touch patient" (Figure 5-2).
If the analysis algorithm detects ventricular flutter
(> 120 bpm), ventricular fibrillation or ventricular
tachycardia with a deviating QRS morphology, the
defibrillator
−
displays the message "Shock advised - Do not
touch patient" (Figure 5-3) and
−
automatically begins charging.
You can watch the defibrillator charging. When
the charge level has been reached,
−
the device emits an audio signal
−
the message "Energy available" appears,
−
the charged energy will be displayed (Figure 5-
3).
•
Do not touch the patient any more and warn all
those present.
•
Now trigger the shock within 30 seconds. To do
so, simultaneously press
and (Figure
5-4).
If the analysis algorithm does not detect a
shockable rhythm, the message "No Shock
Advised" is displayed and an audio signal sounds.
Note
-
Activating the energy selector during ECG
analysis will abort the analysis and you have
to restart it.
-
ECG analysis takes 8 to 12 seconds. If you
press the
Analyse
button immediately after deliv-
ery of a shock, this period may be extended to
20 seconds.
