MONOGRAM REFRIGERATORS

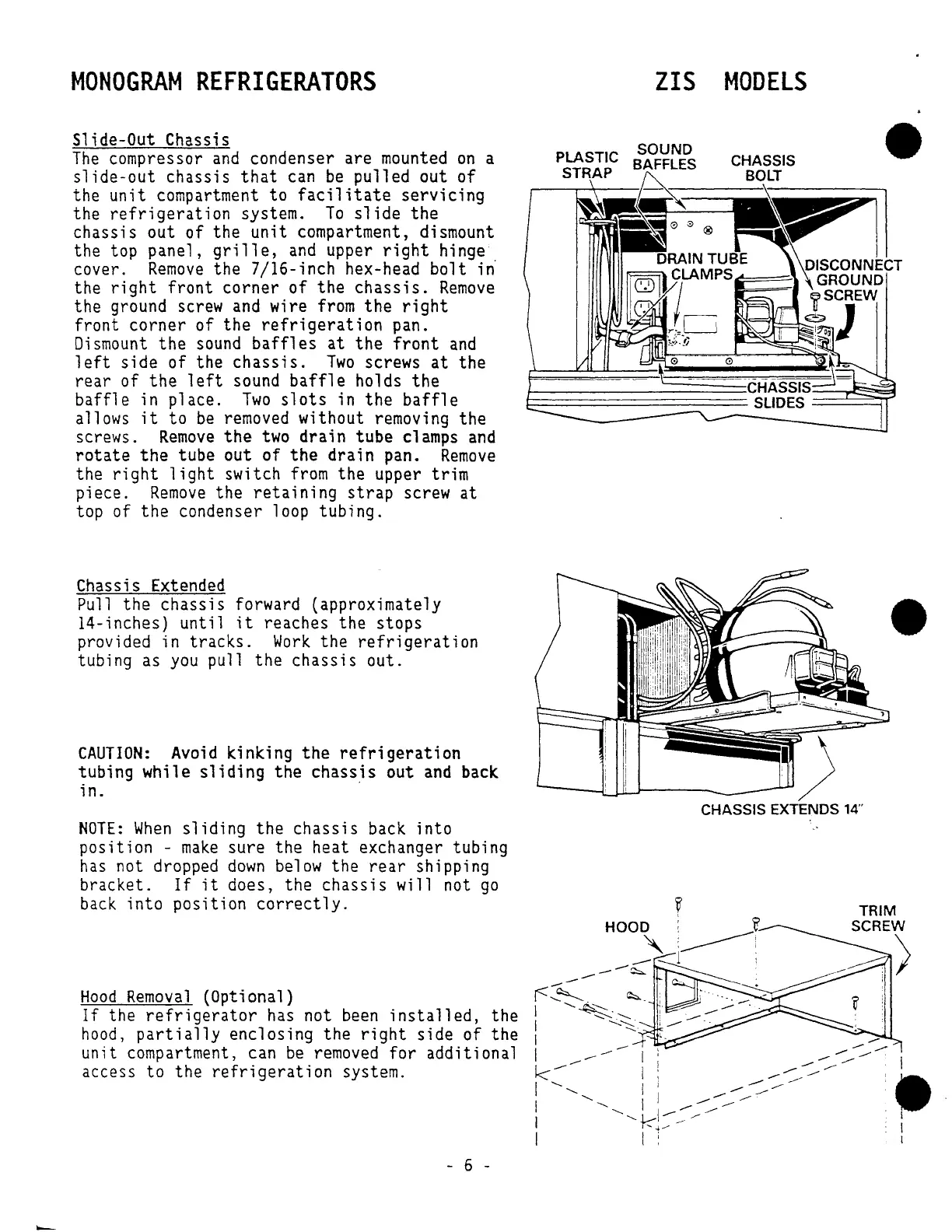

Slide-Out Chassis
The compressor and condenser are mounted on a
slide-out chassis that can be pulled out of
the
unit compartment to facilitate servicing
the
refrigeration system. To slide the
chassis out of the
unit compartment, dismount
the top panel,
grille, and upper right hinge
cover.
Remove the 7/16-inch hex-head bolt i~
the right front corner of the chassis. Remove
the ground screw and wire from the right
front corner of the refrigeration pan.
Dismount the sound baffles at the front and
left side of the chassis. Two screws at the
rear of the
left sound baffle holds the
baffle in place. Two slots in the baffle
allows it to be removed without removing the
screws.
Remove the two drain tube clamps and
rotate the tube out of the drain pan. Remove
the right light switch from the upper trim
piece.
Remove the retaining strap screw at
top of the condenser loop tubing.
Chassis Extended
Pull the chassis forward (approximately
14-inches)
until it reaches the stops
provided in
tracks. Work the refrigeration
tubing as you pull the chassis out.
CAUTION: Avoid kinking the refrigeration
tubing while sliding the chassis out and back
; n.
NOTE: When sliding the chassis back into
position -
make sure the heat exchanger tubing
has not dropped down below the rear shipping
bracket.
If it does, the chassis will not go
back into position correctly.
Hood Removal (Opt i ona 1 )
If the refrigerator has not been installed, the
hood, partially enclosing the right side of the
unit compartment,
can be removed for additional
access to the
refrigeration system.
- 6 -
ZIS MODELS
SOUND
•
•
CHASSIS EXTENDS 14"
